Spare part Shimano Deore XT FH-M8010-B

Included in spare parts package no. 2 and illustrated.

With the exception of the axles, the spare parts for the Shimano Deore XT FH-M8010 and FH-M8010-B (where ‘B’ stands for Boost) rear hubs are identical. With Boost or non-Boost axles, hubs cannot be converted to the other mounting standard, as the hub bodies are of different widths.

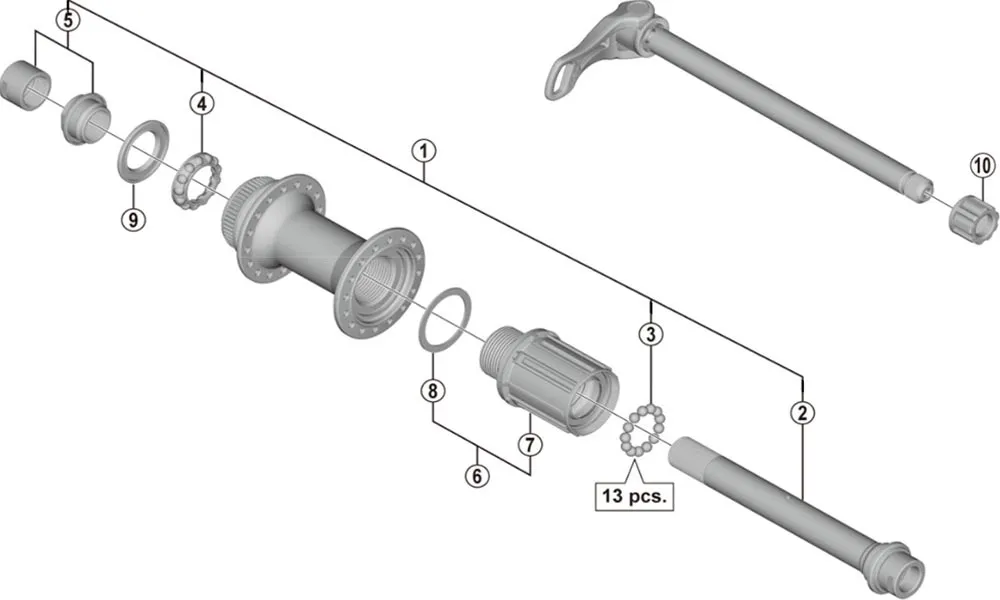

Shimano Deore XT FH-M8010 / FH-M8010-B Disc Rear Hub Spare Parts:

• No. 1: Y3TH98010 – Complete hollow axle for FH-M8010
• No. 1: Y39E98010 – Complete Boost thru-axle for FH-M8010-B
• No. 2: Y3TH98020 – Thru-axle for FH-M8010

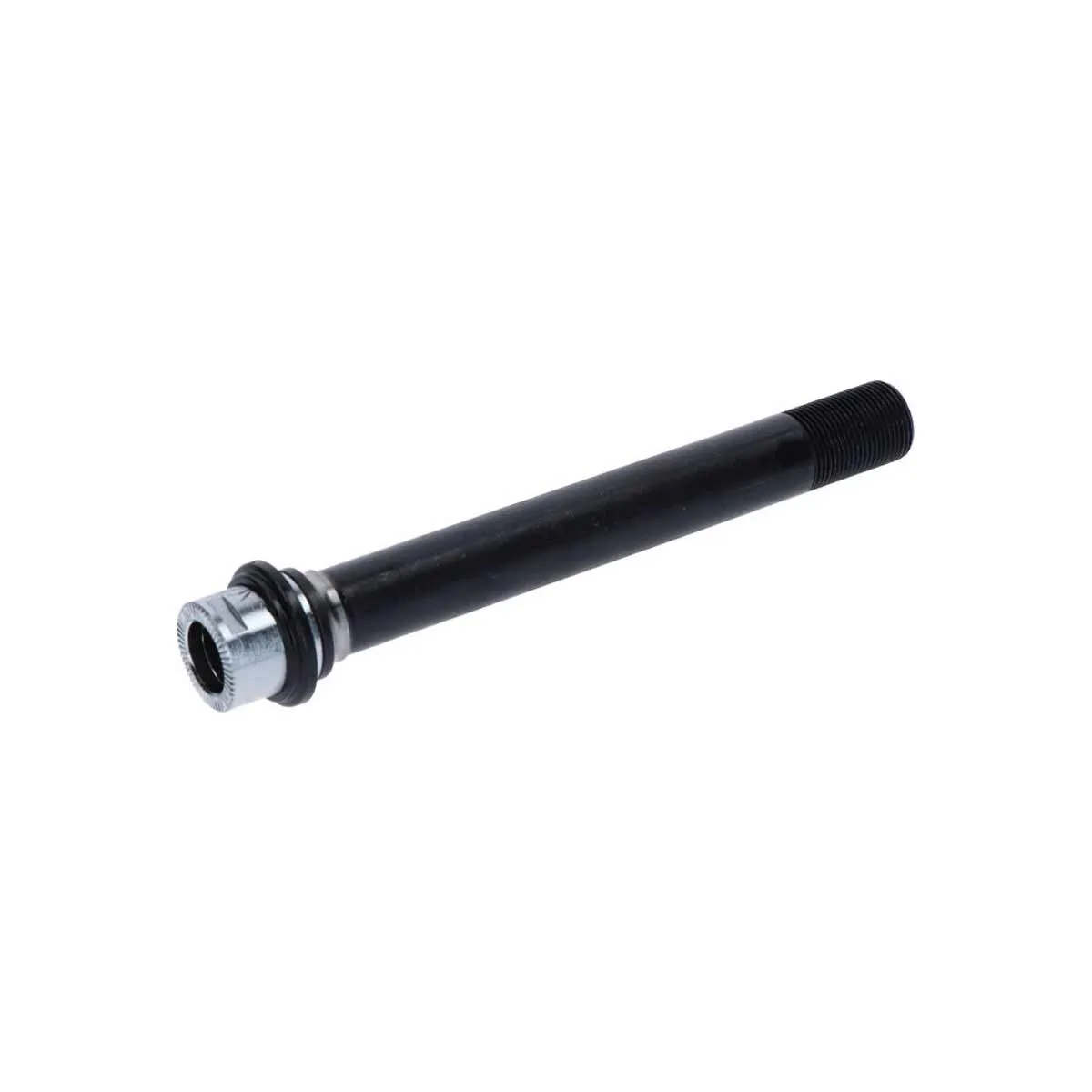

• No. 2: Y39E98020 - Boost hollow axle for FH-M8010-B
• No. 3: Y00091210 - Steel balls 3/16"x20
• No. 4: Y3D498050 - Ball bearing 3/16" left
• No. 5: Y3TH98030 - Axle + tapered nut
• No. 6: Y38V98010 - Complete freewheel
• No. 7: Y38V98020 - 8-11-speed freewheel body (sold out)
• No. 8: Y3CZ12000 - Sealing ring, right
• No. 9: Y26D10000 - Sealing ring, left
• No. 10: Y27Y02000 - M12 axle nut for SM-AX75 and SM-AX76-B
