Shimano XTR HB-M9110-BS spare parts

All spare parts can be found on our website under the item numbers listed below.

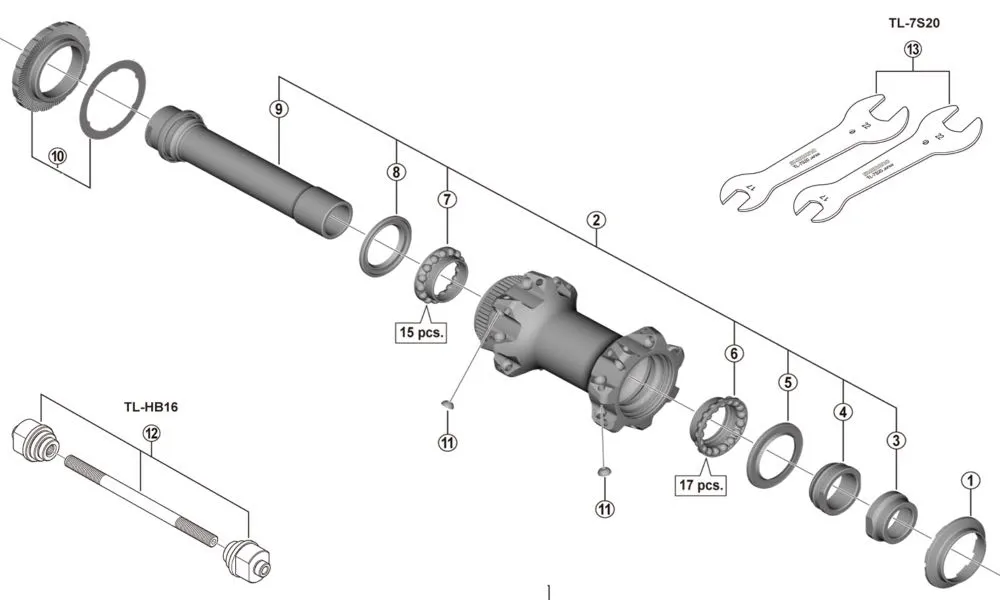

Shimano XTR HB-M9110-BS Disc Front Hub Spare Parts:

• No. 1: Y27X17000 – Right-hand dust cap
• No. 2: Y2CW98010 – Complete hollow axle
• No. 3: Y2CX06000 – Axle nut, right
• No. 4: Y27X11000 - Right-hand tapered nut M19
• No. 5: Y27X15000 - Sealing ring, right, for ball bearing
• No. 6: Y2CW98020 – Ball bearing, right, 5/32 inch, 17 balls, complete
• No. 7: Y2CW98030 - Ball bearing, left, 5/32 inch, 15 balls, complete
• No. 8: Y27X14000 - Sealing ring, left, for ball bearing
• No. 9: Y2CW98040 - Hollow axle
• No. 10: Y2CW98050 – Centerlock locking ring + washer
• No. 11: Y44801000 – Washer for straight-pull spokes, 1 piece
• No. 12: Y20W98020 – TL-HB16 centring aid
• No. 13: Y13098900 - TL-7S20 tapered spanner 17/22 mm, 2 pieces
