Spare parts Shimano Deore XT HB-M8110, HB-M8110-B, HB-M8110-BS

All spare parts can be found in our shop under the item numbers listed below.

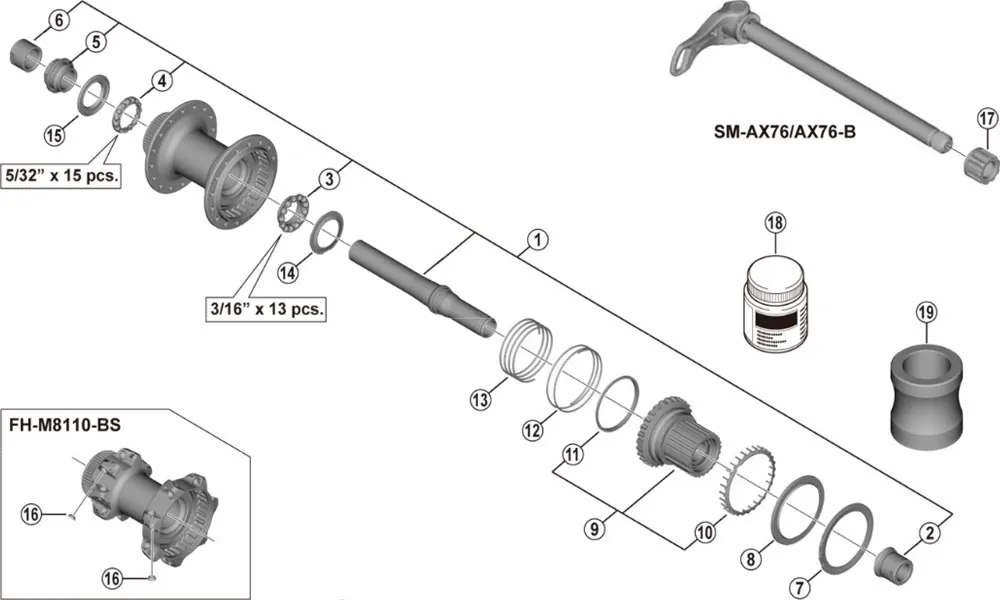

Shimano Deore XT HB-M8110, HB-M8110-B, HB-M8110-BS Disc Rear Hub Spare Parts:

• No. 1: Y3G098010 – Complete hollow axle for FH-M8110
• No. 1: Y3G198010 - Complete Boost hollow axle for FH-M8110-B / FH-M8110-BS
• No. 2: Y3G198020 - Right-hand axle nut
• No. 3: Y3G198030 - Right-hand ball bearing 3/16"x13
• No. 4: Y0CJ98030 - Ball bearing, left, 5/32"x15
• No. 5: Y3G198040 - Tapered nut
• No. 6: Y3G104000 – Left-hand axle nut
• No. 7: Y3FL98060 - C-ring incl. dust cap for freewheel body
• No. 8: Y3FM26000 - Sealing ring for freewheel body
• No. 9: Y3G198050 - Complete freewheel body
• No. 10: Y3FM14000 – Spacer for freewheel body
• No. 11: Y3FM11000 - Sliding ring for freewheel body
• No. 12: Y3FM10000 - Coil spring 1
• No. 13: Y3FM12000 – Coil spring 2
• No. 14: Y3G112000 – Sealing ring, right
• No. 15: Y26D10000 – Sealing ring, left
• No. 16: Y44801000 – Straight-pull washer for FH-M8110-BS, 1 piece
• No. 17: Y27Y02000 – M12 axle nut for SM-AX76 / AX76-B thru-axle
• No. 18: Y38Z98000 - Special grease 50g
• No. 19: Y1Y100010 - TL-FH16 press-fit tool for fitting sealing ring to freehub body
