DT Swiss XRC 310 DB bicycle rim

The cross-country carbon rim from DT Swiss. Extremely lightweight, weighing just 373 grams, yet extremely durable, the new XRC carbon rims with asymmetrical spoke lacing

Included in delivery

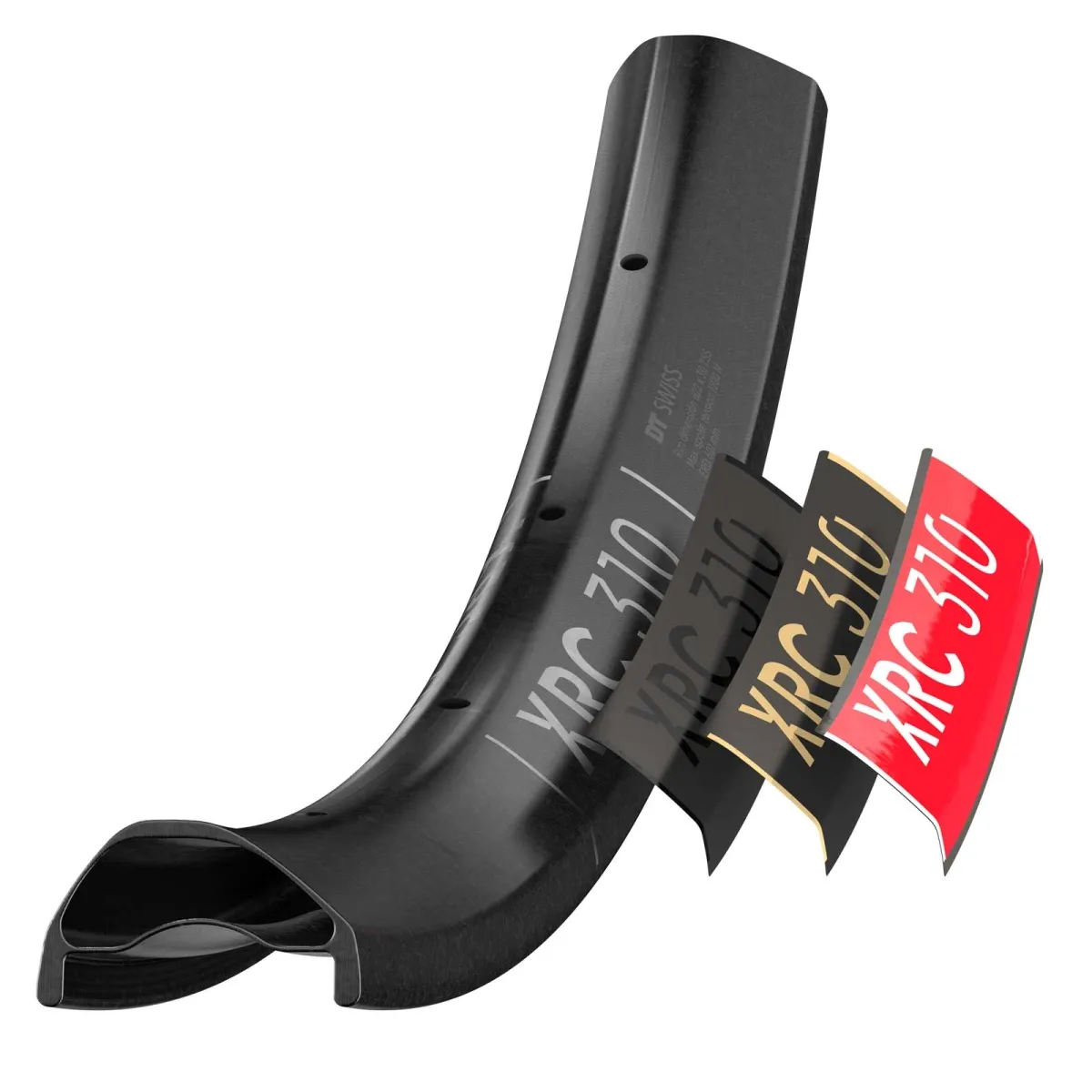

• DT XRC 310 rim, flat hex brass nipples, decal set, tubeless rim tape, tubeless valve

DT Swiss XRC 310 Disc Rims – Specifications and Dimensions:

• 29/28 inches / ETRTO: 622 x 30 / 700C
• ERD: 602 mm
• Hookless tubeless TSS
• Carbon rim
• Rim joint: welded
• non-eyelet PHR

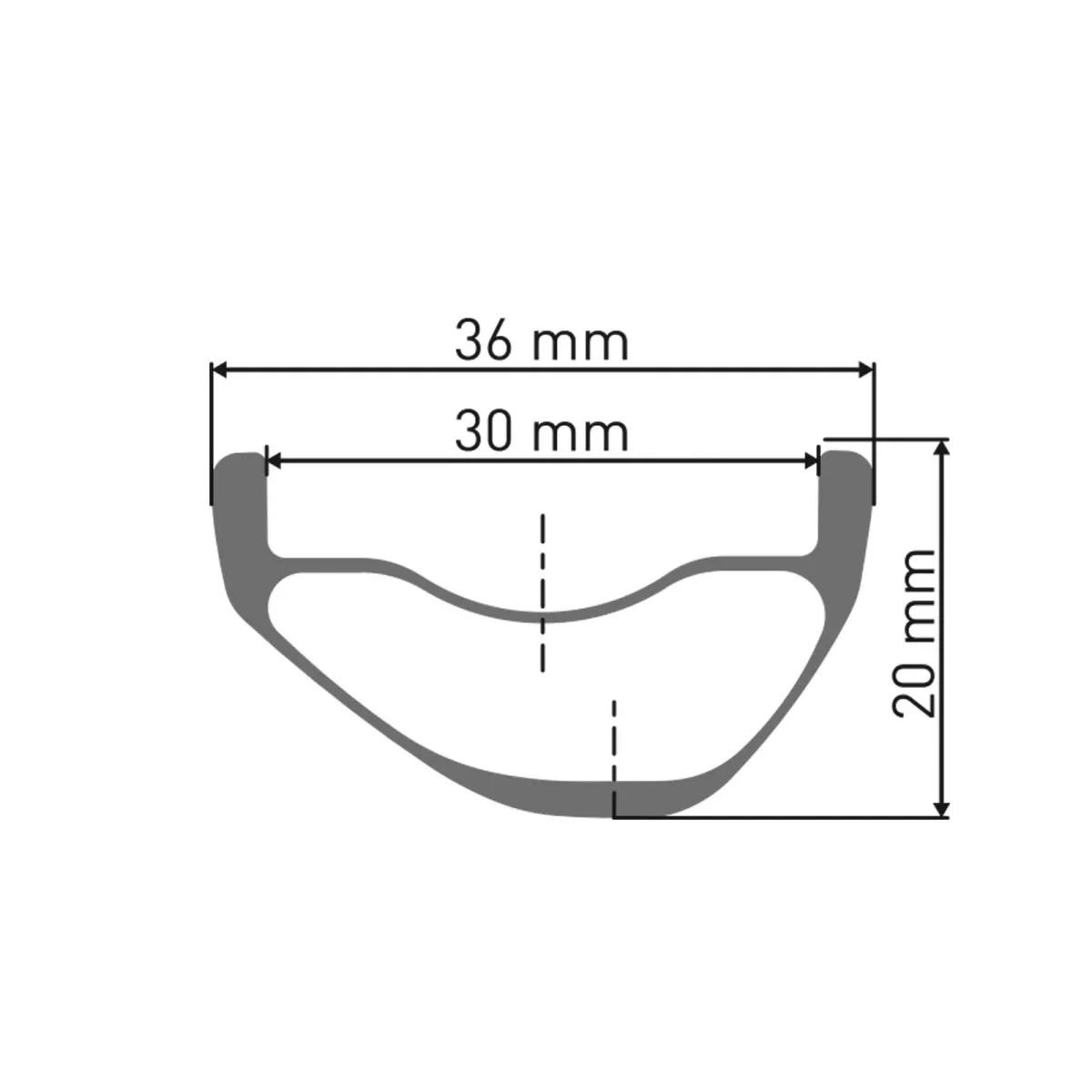

• Width: 30 mm (internal), 36 mm (external) Height: 20 mm
• Maximum recommended tyre width: 2.8
• Valve hole: Presta 6.5 mm
• Recommended rim tape: 32 mm
• Weight: 373 grams
• ASTM classification: 3
• Approved for e-bikes: (max. 32 km/h or 250 watts)
• Max. system weight 120 kg

Your custom wheel with the DT Swiss XRC 310 rim.

Ask us for a bespoke quote. We’ll build your dream wheel, perfectly hand-trued. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

DT Swiss XRC 310 DB:

Do you want to reach the very top? Then the XRC 310 is your perfect companion. Rapid acceleration and finely tuned agility will take you to the top. Our state-of-the-art technology fuses the carbon layers together under maximum pressure. The result is our lightest MTB carbon rim to date. Now you have the opportunity to set new records.

DT Swiss Pure Carbon Technology:

A revolutionary rim manufacturing process and non-destructive layer-by-layer testing of every product ensure rims that are both lightweight and robust, guaranteeing long-lasting riding pleasure. Traditionally, the individual components of a carbon rim are manufactured separately within the industry. Irregularities can occur when the components are assembled. With the PURE Carbon method, DT Swiss is able to manufacture highly robust rims that are extremely impact-resistant. The fibres of the outer layer are not cut and therefore form continuous units in high-stress areas. The result: a significantly more uniform structure with minimal defects.

The patent-pending outer carbon layer ensures an unrivalled high-quality finish to the rim surface, meaning the rim is ready for use immediately after being removed from the mould. The result is a structurally optimised composition free from air pockets and resin build-up, which not only improves the rim’s reliability but also ensures an elegant design.

Thanks to a patented process, a unique surface is achieved, eliminating the need for final coatings and resulting in weight savings. To ensure that our rims are 100% ready for immediate use, each rim is inspected through all layers using a technology for which a patent application has been filed. Thanks to this completely new method, all rims that are not 100% flawless are rejected, and only rims without any material defects are approved.

DT Swiss Carbon Shield Technology:

Wheelsets subjected to particularly high stresses are protected by carbon layers surrounding the entire rim; this reinforces the rim flange in particular through long, uninterrupted fibre strands.

The resulting protection against impacts and higher stresses prevents structural weakening between the carbon layers, ensuring carefree riding pleasure even on challenging routes.

The number of carbon layers added increases in line with the expected load in the various areas of use.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
