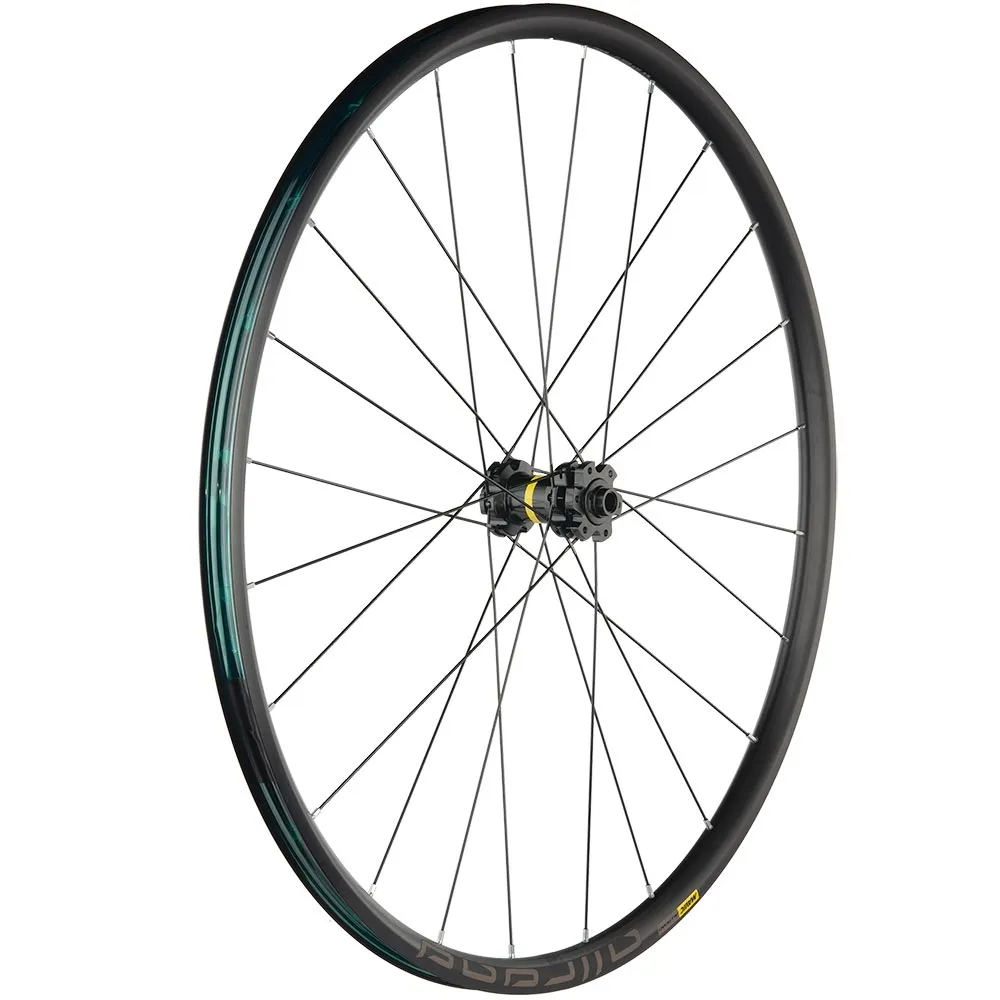

Mavic Allroad Disc Wheel

A high-end entry into the Mavic Allroad world, featuring wide, stable, lightweight and versatile tubeless-ready rims, straight steel aero spokes and rims, the robust Mavic Allroad Disc wheels with Instant Drive freehub body. The rims, with a 23 mm rim width, also offer perfect grip for wide tyres

Of course, these wheelsets can also be used with standard tyres and inner tubes.

Mavic Allroad Disc wheel technology:

• Recommended use: Road racing, training, cyclocross
• 28 inches, 622 x 23, for folding and clincher tyres
• Spokes: 24 straight, black high-tensile steel spokes
• Rim: S6000 aluminium rim, butted, black, H2 cold-forged, tubeless ready
• Spoke pattern: Front and rear wheels double-crossed
• Bearings: Industrial-grade hubs
• Hub body: Aluminium
• Brake disc mounting: IS 6-hole
• Disc Road front wheel hub 12x100mm thru-axle or 9x100mm quick-release mount, convertible to 15x100mm via axle conversion
• Maximum recommended rider weight 120 kg

Mavic Allroad Disc weights, manufacturer’s specifications:

• Front wheel: 870 grams

Contents of delivery for Mavic Allroad Disc wheel:

• Mavic Allroad Disc front wheel, end stops as selected, tubeless rim tape, tubeless valve

The Mavic Allroad Disc wheelset weighs just 1890 grams and has a 23 mm rim width. Despite the weight saving, the rims have become even more rigid and durable thanks to H2 cold-forging. High-quality hub technology with industrial bearings, 20 spokes per wheel, cleanly finished, robust rims specially designed for use with disc brakes, and all at a price at which you couldn’t even build your own wheels. The ideal wheelset for gravel, cyclocross, training and road touring.

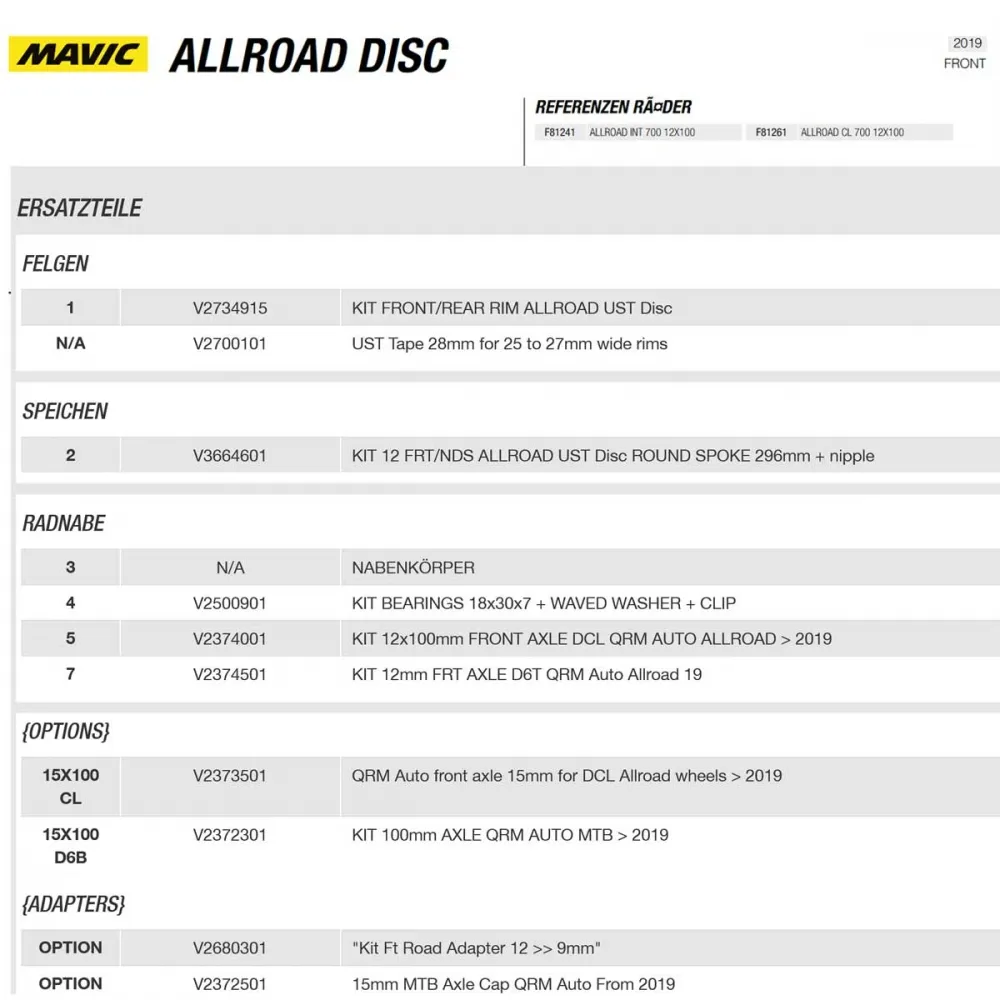

Compatible end stops, front wheel:

• Quick-release mounting, 9x100 mm adapter, item no.: V2680301
• Thru-axle mounting, 12x100 mm, adapter part no.: V2680501
• Thru-axle mounting, 15x100 mm, replacement axle Part No: V2372301 plus Part No: Adapter V2372501

Mavic Allroad Disc technologies:

• Mavic rims:
  the rims are fitted with special rim flanges that make tyre fitting extremely easy; the tyres practically spring into the correct position and, provided you have a strong thumb, can be fitted without tools and inflated using standard air pumps.
• QRM Auto:
  Industrial bearings of this quality are only found in Mavic hubs – QRM bearings with double seals, of the 2RS or LLU type, and with extremely tight tolerances. Self-aligning bearings offer very high durability, low maintenance and excellent smoothness.
• Mavic Instant Drive Freehub Body:
  The new Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8-11-speed, SRAM XD 11- and 12-speed XG/AXS, and Campagnolo 9-11-speed ED cassettes.
• Compatibility:
  the oversized aluminium axles allow for easy conversion to all standard axle systems, including quick-release mounting as well as QR 12x100 mm, X12x142 mm and 12x135 mm thru-axle mounting. End stops for 12 mm thru-axles and quick-release mounts are included in the scope of delivery. Conversion to 15x100 mm front wheel mounting is possible by replacing the entire hub axle
