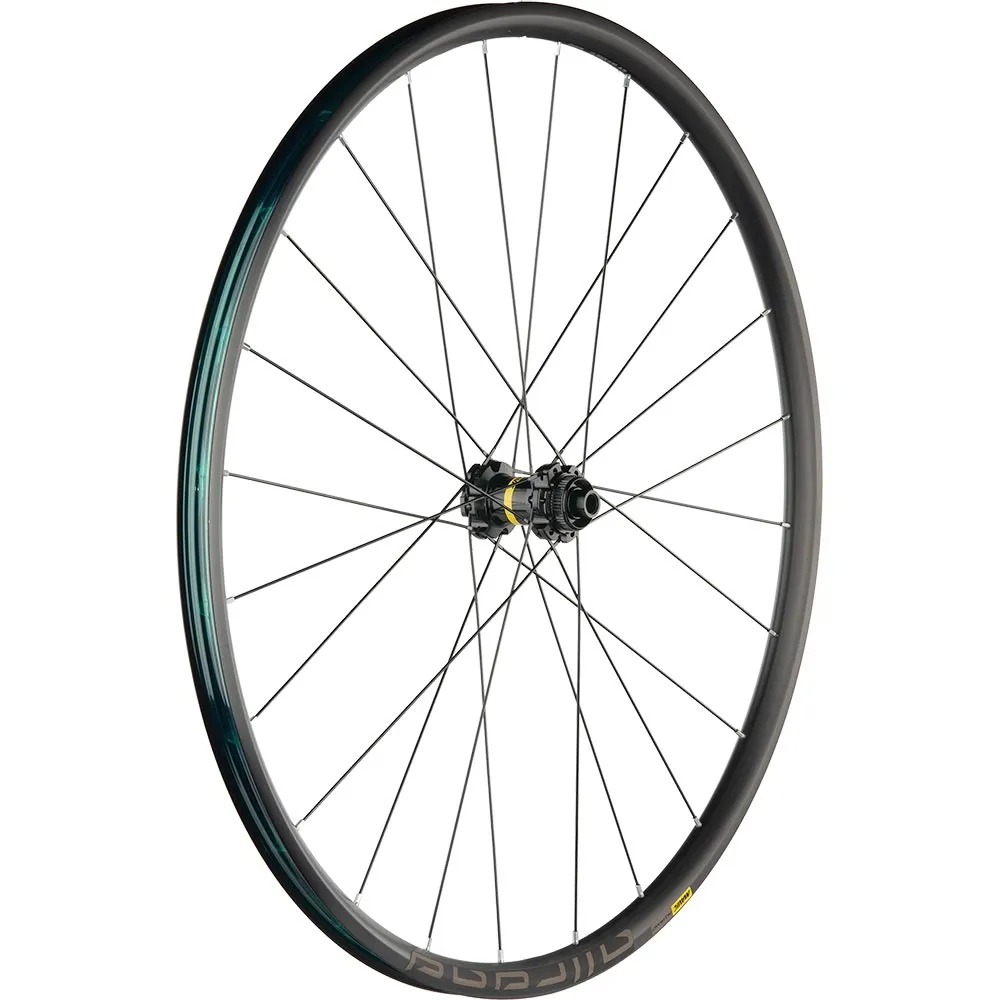

Mavic Allroad Disc Wheel

A high-end entry into the Mavic Allroad world, featuring wide, stable, lightweight and versatile tubeless-ready rims, straight steel aero spokes and rims, the robust Mavic Allroad Disc wheels with Instant Drive freehub body. The rims, with a 23 mm rim width, also offer perfect grip for wide tyres

Of course, these wheelsets can also be used with standard tyres and inner tubes.

Mavic Allroad Disc wheel technology:

• Recommended use: Road racing, training, cyclocross
• 28 inches, 622 x 23, for folding and clincher tyres
• Spokes: 24 straight, black high-tensile steel spokes
• Rim: S6000 aluminium rim, butted, black, H2 cold-forged, tubeless ready
• Spoke pattern: Front and rear wheels double-crossed
• Bearings: Industrial-grade hubs
• Hub body: Aluminium
• Brake disc mounting: Centerlock
• Disc Road front hub 12x100mm thru-axle or 9x100mm quick-release mount, convertible to 15x100mm via axle conversion
• Maximum recommended rider weight: 120 kg

Mavic Allroad Disc weights, manufacturer’s specifications:

• Front wheel: 870 grams

Contents of delivery for Mavic Allroad Disc wheel:

• Mavic Allroad Disc front wheel, end stops as selected, tubeless rim tape, tubeless valve

The Mavic Allroad Disc wheelset weighs just 1890 grams and has a 23 mm rim width. Despite the weight saving, the rims have become even more rigid and durable thanks to H2 cold-forging. High-quality hub technology with industrial bearings, 20 spokes per wheel, cleanly finished, robust rims specially designed for use with disc brakes, and all at a price at which you couldn’t even build your own wheels. The ideal wheelset for gravel, cyclocross, training and road touring.

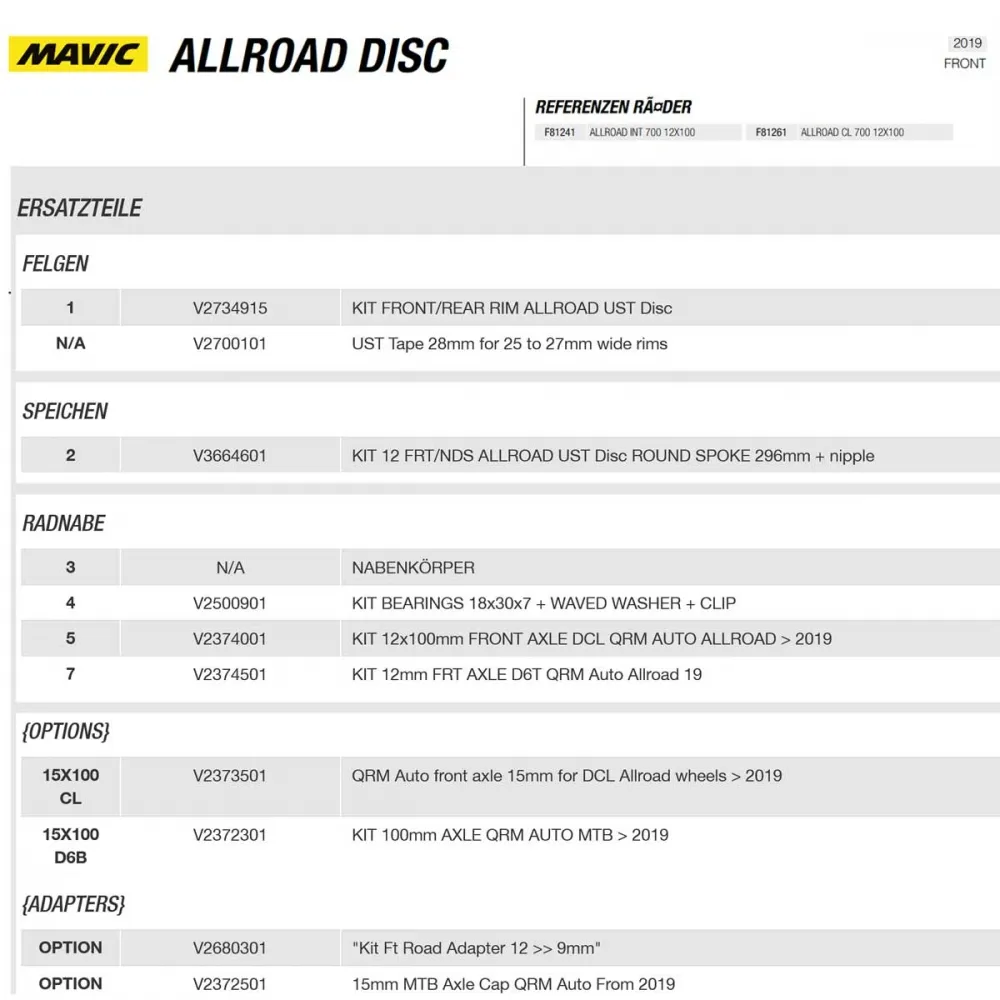

Compatible end stops, front wheel:

• Quick-release mounting, 9x100 mm adapter, item no.: V2680301
• Thru-axle mounting, 12x100 mm, adapter part no.: V2680501
• Thru-axle mounting, 15x100 mm, replacement axle part no.: V23501 plus adapter part no.: V2372501

Mavic Allroad Disc technologies:

• Mavic rims:
  the rims are fitted with special rim flanges that make tyre fitting extremely easy; the tyres practically spring into the correct position and, provided you have a strong thumb, can be fitted without tools and inflated using standard air pumps.
• QRM Auto:
  Industrial bearings of this quality are only found in Mavic hubs – QRM bearings with double seals, of the 2RS or LLU type, and with extremely tight tolerances. Self-aligning bearings offer very high durability, low maintenance and excellent smoothness.
• Mavic Instant Drive Freehub Body:
  The new Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8–11-speed, SRAM XD 11- and 12-speed XG/AXS, and Campagnolo 9–11-speed ED cassettes.
• Compatibility:
  the oversized aluminium axles allow for easy conversion to all standard axle systems, including quick-release mounting as well as QR 12x100 mm, X12x142 mm and 12x135 mm thru-axle mounting. End stops for 12 mm thru-axles and quick-release mounts are included in the scope of delivery. Conversion to 15x100 mm front wheel mounting is possible by replacing the entire hub axle

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
