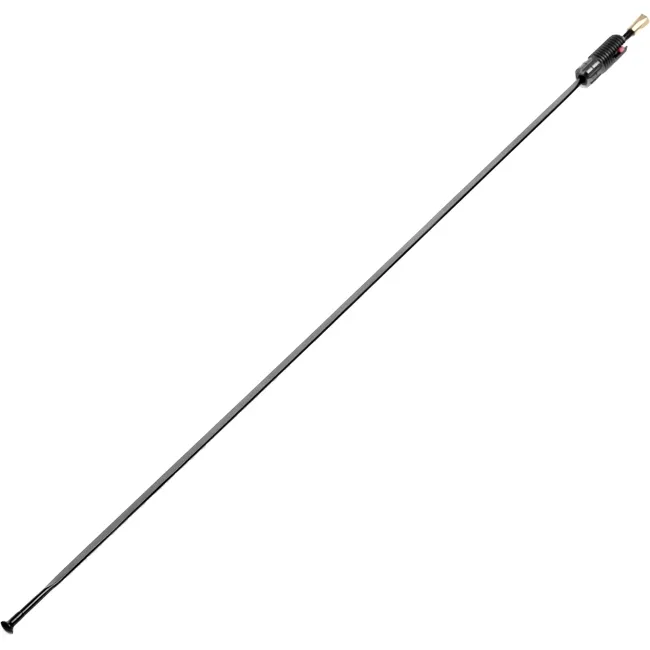

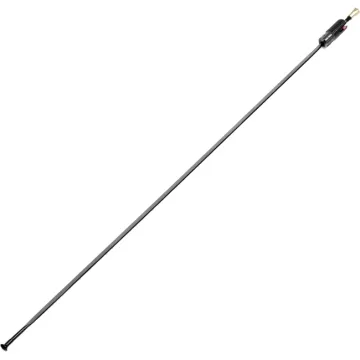

Mavic E Deemax S 29 replacement spoke

On the 2024 model E-Deemax S wheelsets, the spoke lengths for the front and rear wheels are the same.

14 spokes are required per side. The UST spoke nipples have the Force M7/M7 head; the required spoke wrench is item no. 99607901

Is your Mavic wheel damaged? We repair all Mavic wheels, provided that a repair is feasible and the spare parts are still available. Please email us the serial number of your wheel in advance, along with a brief description of the damage. You will usually find the serial number on a small sticker, either on the rim edge or near the barcode

Mavic E-Deemax S Boost 15x110mm front wheel:

The Deemax Boost front wheel with a 15x110mm Boost thru-axle mounting standard. These Boost front wheels are only compatible with Boost forks featuring a 15x110mm thru-axle and cannot be converted to other mounting standards

Spare parts for the Mavic E-Deemax S 29 front wheel:

• Boost end stop for 15x110 mm thru-axle assembly, Part No: 12982801
• Boost end stop for 15x110 mm thru-axle installation, Part No:V2374401
• Replacement rim, front or rear wheel, 28-hole, height 21 mm, width 35 mm, rim width 30 mm, Part No: V00100431
• Replacement stainless steel spokes 305 mm straight with M6 nipples, Item No: V00100831
• Hub bearing type 608 / 18x30x7 mm for 15 mm axle Item No: V2500901
• Hub axle QRM Road, MTB Boost 15x110 Disc 6-hole with bearing cap and retaining ring Item No.: V2372401
• Hub axle QRM Road, MTB Boost 15x110 Disc Centerlock with bearing cap and retaining ring Item No.: V2375601

Torque Caps:

The wheel mount on many current RockShox suspension forks is designed for Torque Cups. These provide a significantly larger contact surface for the hubs and thus greater stiffness in the suspension fork/wheel system. Torque Cups have a diameter of 31 mm, whereas standard cups are 22 mm.

Mavic E-Deemax S Boost 12x148mm rear wheel:

The Deemax Boost rear hub with a 12x148 mm Boost thru-axle mounting dimension. These Boost rear wheels are only compatible with frames featuring 148 mm Boost thru-axles and cannot be converted. Not compatible with Super Boost frames with a 12x157 mm mounting dimension, as these have wider hub bodies.

Spare parts for the Mavic E-Deemax S 29 rear wheel:

• Boost 12x148 mm thru-axle assembly, Part No: V2510700
• Boost 10x141 mm quick-release assembly, Part No: V2510800
• Replacement rim, front or rear, 28-hole, height 21 mm, width 35 mm, rim width 30 mm, Part No: V00100431
• Replacement stainless steel spokes 305 mm straight with M6 nipples, Item No.: V00100831
• Hub bearing type 6903 / 17x30x7 mm Item No: M40076
• Rear wheel axle kit Boost 148 mm for ID360 Disc 6-hole hub with retaining ring and cover Item No.: V2372201
• Rear wheel axle kit Boost 148 mm for ID360 Disc Centerlock hub with retaining ring and cover Item No.: V2375701
• Sprocket retainer with retaining ring Item No: V2252701
• Freewheel body seal Item No.:V00063631 / V2251601
• Sprocket kit 24 teeth with spring Item No: V2375201
• Rubber for noise damping Item No: V2500501
• MTB spring for toothed discs Part No: V2251801
• Bearing cover with shaft washer and circlip Part No: V2373001

Compatible Instant Drive 360 MTB freehub body:

• HG10 aluminium freehub for MTB cassettes, compatible with Shimano 8–11-speed / Sram 8–10-speed, Part No: V3780101
• HG10 steel freehub for MTB cassettes, compatible with Shimano 8–11-speed / 8–10-speed cassettes, Part No: V3790100
• Micro Spline aluminium freehub for Shimano 12-speed MTB cassettes, 12-speed compatible only Item No.: V3990101
• Micro Spline steel freehub for Shimano 12-speed MTB cassettes, 12-speed compatible only Item No: A00090231
• SRAM XD aluminium freehub for SRAM XG MTB cassettes, 11 + 12-speed compatible Item No: V3740101
