DT Swiss Dicut ARC 1100 wheelset

The all-round aero wheelset with excellent characteristics for various applications on the road, DT Swiss ARC 1100 Dicut 62 DB

Included in delivery

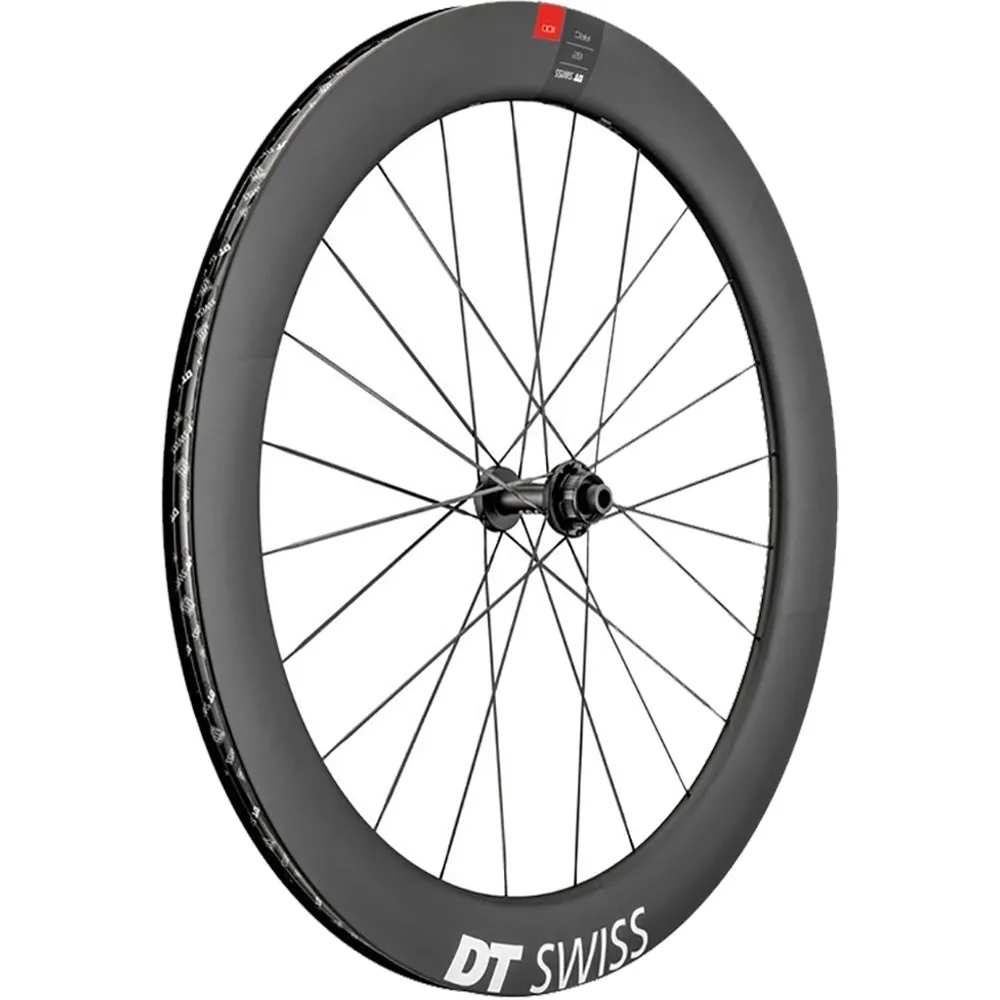

• DT Swiss ARC 1100 Dicut DB 62 front wheel, end stops as selected, tubeless rim tape, tubeless valve

DT Swiss ARC 1100 Dicut DB 62 wheel technology and dimensions:

• 28 / 29 inches, 700C, ETERO 20x622 rims
• Full carbon rims for folding and clincher tyres
• Rim type: Hooked / Crotchet tubeless TC

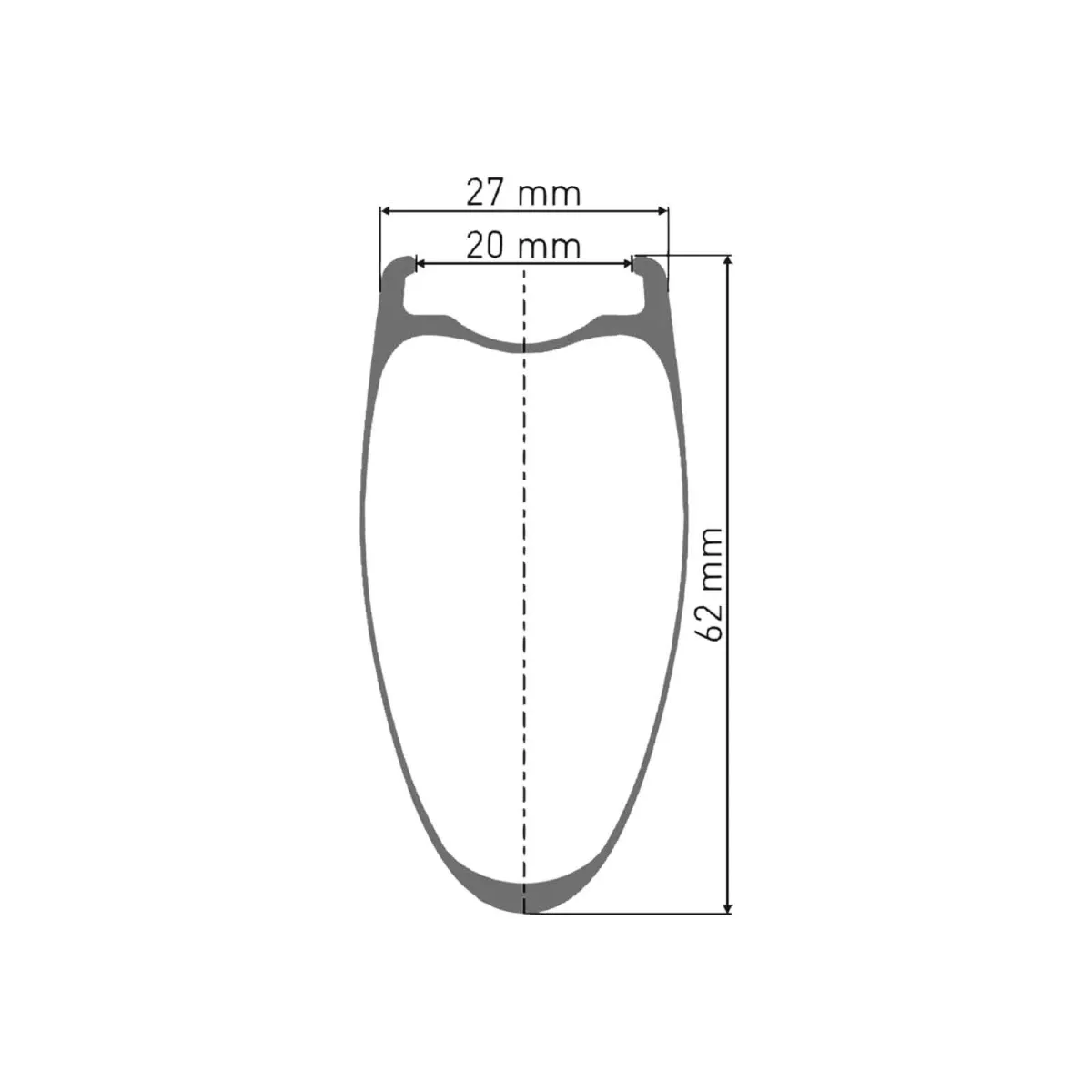

• Rim dimensions: rim width 20 mm, outer width 27 mm, height 62 mm
• High-end hubs with 36-tooth pulleys and Sinc ceramic ball bearings
• Cold-forged DT Swiss Aerolite/Aerocomp spokes, 24 spokes on front and rear wheels
• Pro Lock hexagonal special nipples
• Spoke pattern: 2-cross
• Brake disc mount: Disc Centerlock

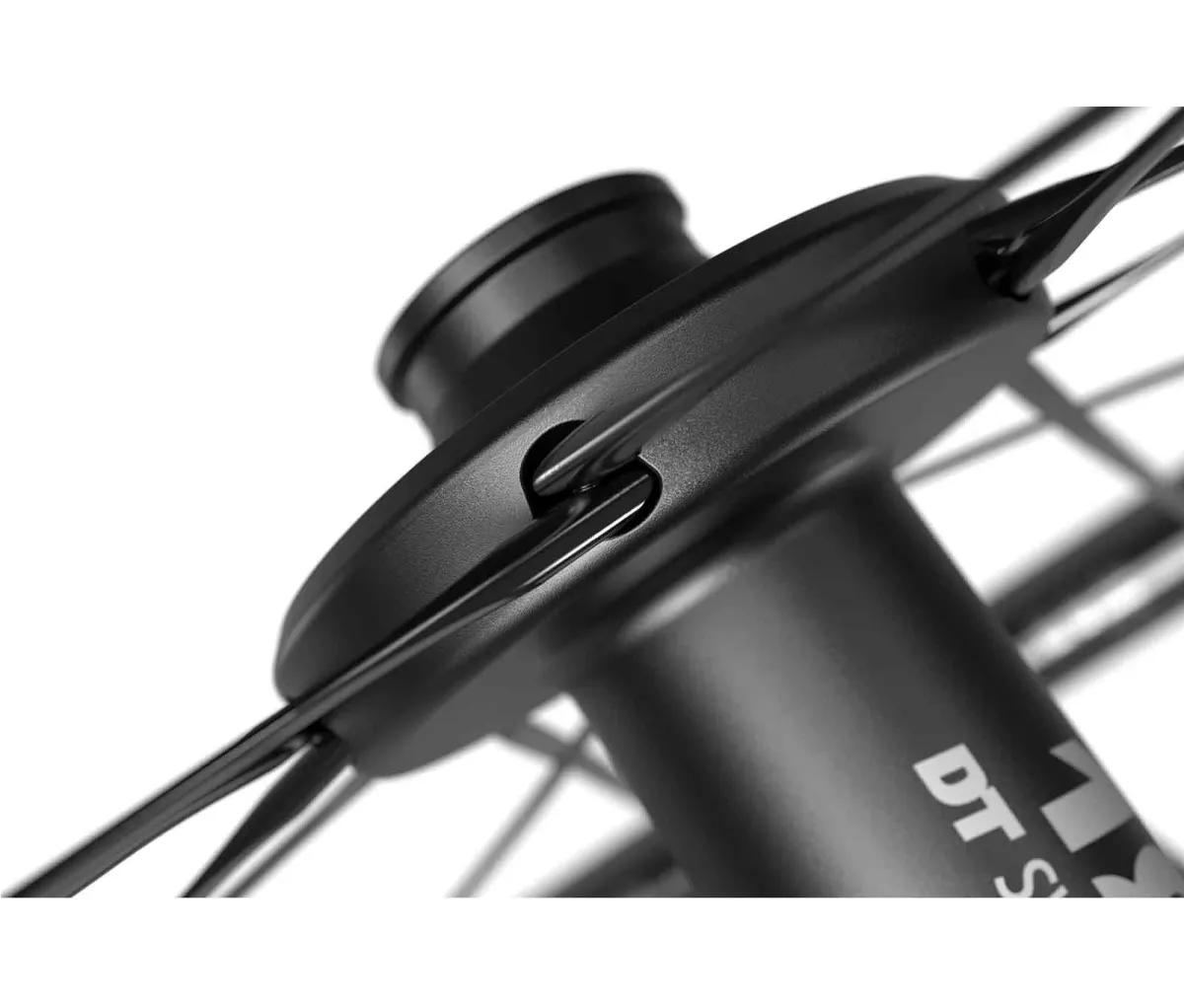

• ARC Dicut 180 front hub, available with either 12x100mm thru-axles or 9x100mm quick-release hub end caps
• Weight: 776 grams, manufacturer’s specification
• Maximum recommended rider weight 110 kg
• ASTM classification 1

The new ARC 1100 series with EXP hubs. The high-end aero disc wheelset for road, triathlon and time trial bikes, featuring 62 mm high and 27 mm wide full-carbon rims, allows the use of wide, excellent-rolling tubeless tyres; the asymmetrical design provides very high lateral stiffness for maximum steering precision. The DT Swiss ARC 1100 Dicut 62 DB wheels are very light, weighing just 1676 grams; the high-end DT Swiss Dicut hubs are fitted with DT Swiss Sinc Ceramic bearings. Finally, the patented ratchet system guarantees durability and easy maintenance of the wheelset

DT Swiss Sinc Ceramic bearings:

the high-end ceramic bearings from DT Swiss, specially optimised for DT Swiss hubs, offer maximum smoothness and minimum weight. In a special manufacturing process, the balls are rolled until their surface exhibits perfect roundness. Whilst the surface of conventional ceramic balls is not 100 per cent smooth, SINC Ceramic balls exhibit an extremely high degree of smoothness and, thanks to their perfect roundness, achieve extremely low rolling resistance. By combining these ceramic balls with high-quality steel bearing cups, the full potential of the bearings can be realised.

DT Swiss ARC 1100 Dicut rims:

The ARC 1100 carbon rims, developed entirely in collaboration with Swiss Side, offer excellent aerodynamics and superior handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ARC 1100 rims provide the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 20 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

DT Swiss ARC 1100 Dicut spokes:

The lacing using the Nail Head System ensures that the spokes cannot twist under load, so the spokes are always at the most aerodynamically favourable angle. Flatter and lighter than all others, the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. On the freehub side of the Dicut wheels, the slightly heavier and even more stable DT Ärcomp spokes are fitted.

DT Swiss Ratchet EXP Freewheel:

Ratchet EXP is DT Swiss’s lightest freehub system and is therefore used in DT Swiss products designed for the most demanding requirements. It is fitted to the 180 and 240 hubs. The DT Swiss EXP Ratchet System hub system allows for easy conversion to various axle or rotor standards. The multi-tooth ratchet freehub body ensures loss-free power transmission. The rear hubs can be converted to Campagnolo ED and N3W, Shimano HG and Microspline, Sram XD and XDR freehub bodies without tools.

Compatible endstops for DT Swiss Disc Aero Road front wheels with Dicut Aero hub:

• Quick-release mounting 9x100 mm, Item No: HWGXXX0000051S
• Thru-axle mounting 12x100 mm, Item No: H24DACDXR24SO7826W

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
