Spare parts for Mavic Cosmic SL 45 DCL wheelsets, carbon, disc centre lock, 2021–2024 models

Mavic Cosmic SL 45 Carbon Disc

Spare parts for the Mavic Cosmic Carbon SL 45 Disc wheels, models 2021 to 2024, item no. P1328155.

Your Mavic wheel is damaged; we repair all Mavic wheels, provided the spare parts are still available. Please send us the serial number of your wheel, stating the nature of the damage. We will then check whether a repair is possible. The serial number is located on the rim next to the barcode.

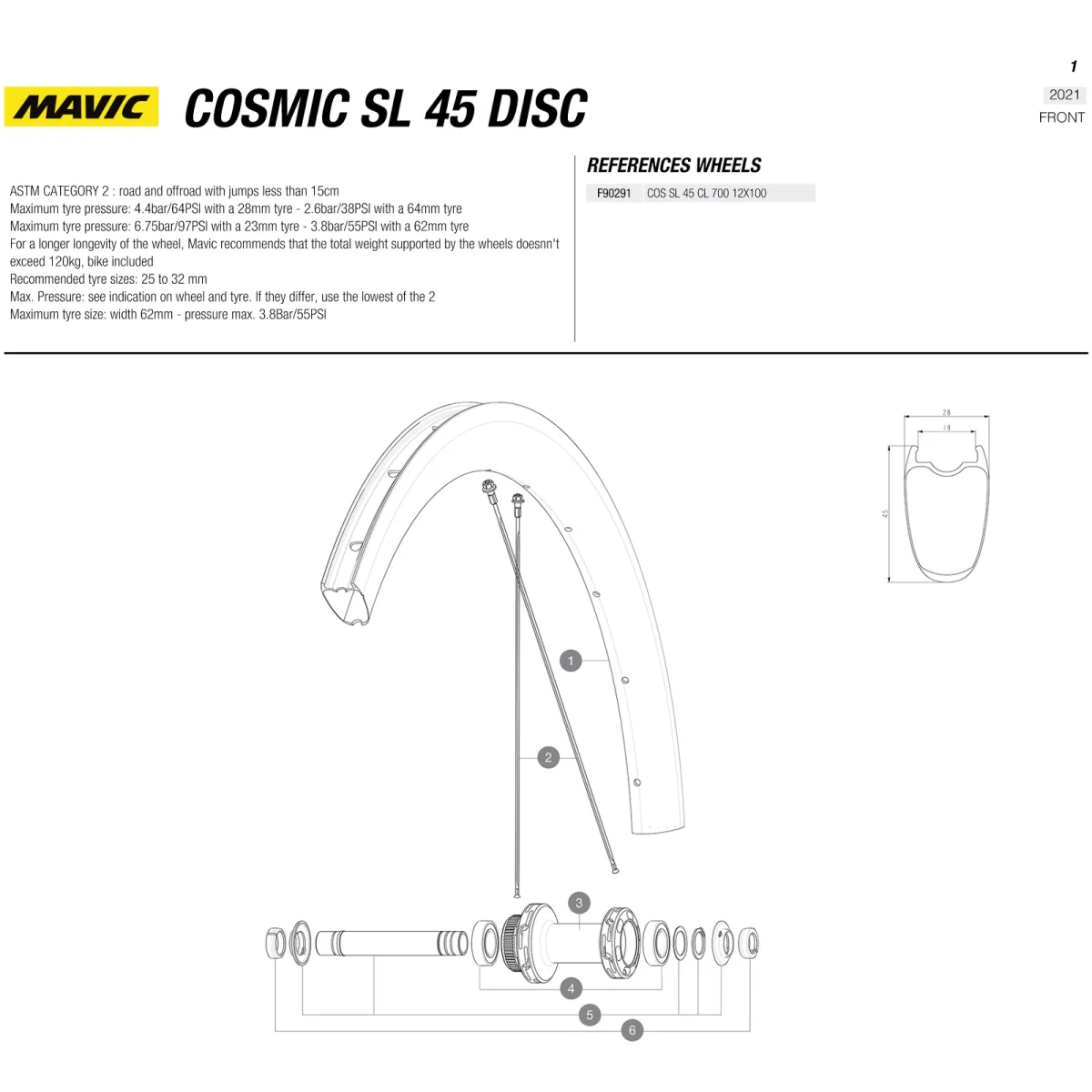

Spare parts for the Mavic Cosmic Carbon SL 45 Disc front wheel, model years 2021–24, item no. F9029100:

Front wheel adapter for 9x100mm quick-release mounting, Part No: V2680301
Front wheel adapter for 12x100mm thru-axle mounting, Part No: V2680501
Replacement rim for front or rear wheel, 24-hole, height 45 mm, width 28 mm, rim width 19 mm, Part No: V4092815
Replacement spokes Aero 271 mm with nipples and washers Item No.:V4162901
Tubeless rim tape 25 mm Item No.: V3720101
Hub bearing type 6902 / 15x28x7 mm Item No: M40129
Hub axle QRM Auto 12 x 100 mm Item No.: V2373301

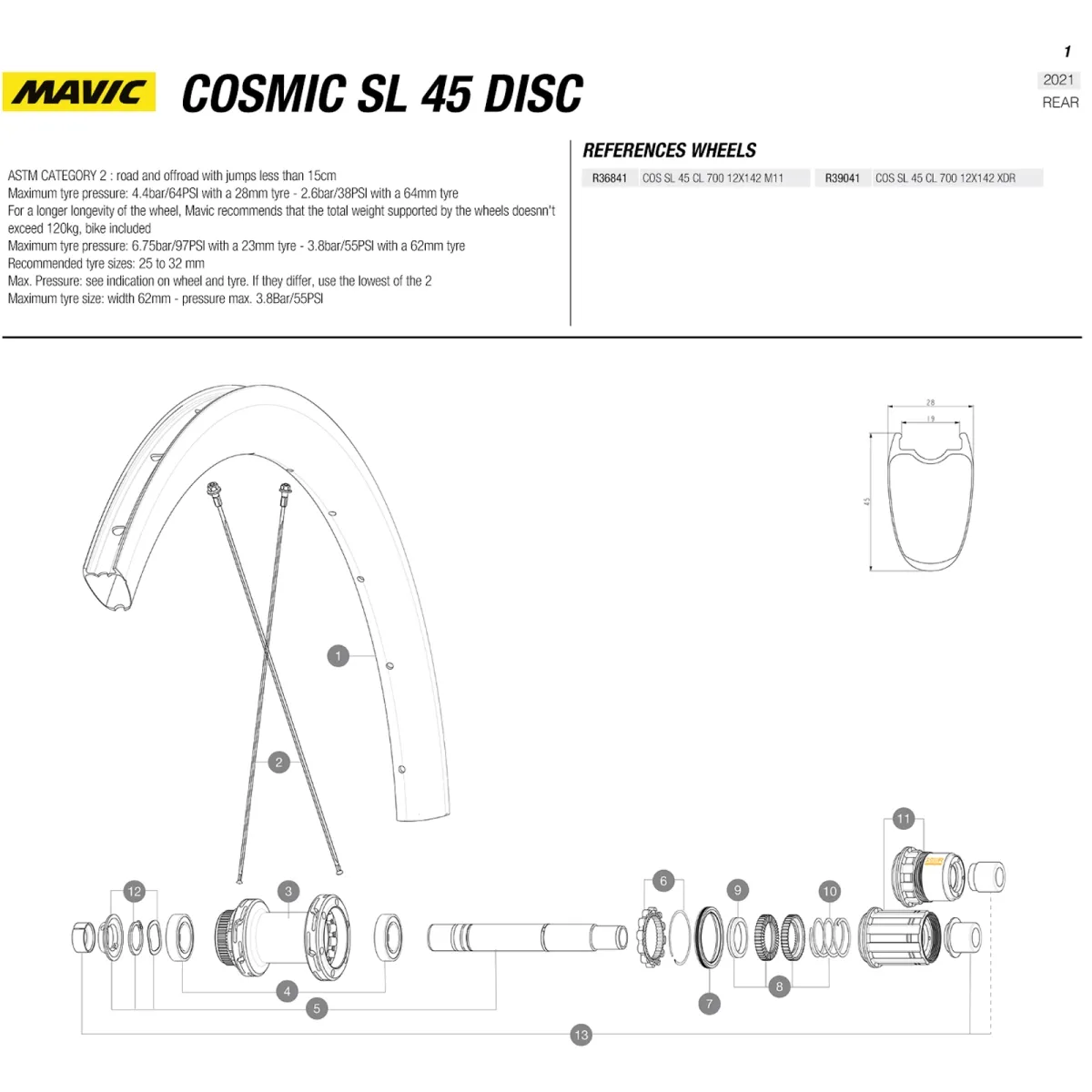

Spare parts for the Mavic Cosmic Carbon SL 45 Disc rear wheel, model 2021-24, item no. R3684155, R3904155:

Rear wheel adapter for 10x135mm quick-release mounting, Item No: V2510801
Rear wheel adapter for 12x135mm thru-axle mounting, Item No: V2510901
Rear wheel adapter for 12x142mm thru-axle mounting, Part No: V2510701
Spare rim, front or rear wheel, 24-hole, height 45 mm, width 28 mm, rim width 19 mm, Item No: V4092815
Replacement spokes Aero 271 mm with nipples and washers Item No.:V4162901
Tubeless rim tape 25 mm Item No: V3720101
Hub bearing type 6903 / 17x30x7 mm Item No: M40076
Rear wheel axle kit 135/142 for ID360 Disc Centerlock hub with retaining ring and cover Item No:V2373401
Sprocket retainer with retaining ring Item No.: V2252701
Freewheel body seal Part No: V2251601
Sprocket kit with spring Item No.: V2251701
Rubber for noise damping Item No: V2500501
Spring for pawls Item No: V2251801
Bearing cover with shaft washer and circlip Part No: V2373001

Compatible Mavic Instant Drive 360 freehub body:

Aluminium Light freehub body for Shimano HG + Sram cassettes Part No: V3850101
Aluminium freehub body for Shimano HG + SRAM cassettes Item No: V3430101
Aluminium freehub body for Campagnolo ED cassettes 10-12 speed Item No: V3440101
Aluminium freehub body for Campagnolo N3W cassettes 10-12 speed Item No: V4270101
Aluminium freehub body for Sram XDR and XD cassettes Item No: V2580101
Aluminium freehub body for Shimano Microspline cassettes Item No: V3990101

Mavic Cosmic SL 45 DCL Carbon Disc Clincher Wheel Specifications and dimensions:

28 inches, clincher for folding and clincher tyres ETRTO 622x19
Material: 12K carbon weave carbon rim bed, tubeless ready
High-profile rim 45 mm
Width: 19 mm (internal), 28 mm (external)
Brake disc mount: Disc Centerlock
Colour: Carbon black
Spoke material: Stainless steel aero spokes
Number of spokes: 24 front and 24 rear
Spoke pattern: 2-cross front, 2-cross rear
Hub body: Aluminium front and rear
Bearing: QRM Auto
Front wheel hub: aluminium body, QR 12x100mm, QR12 thru-axle mount,
optionally convertible to quick-release
Rear wheel hub: aluminium body, 12x142mm, X12 thru-axle mount,
optionally convertible to 12x135mm thru-axle and quick-release mount
Freewheel: Instant Drive 360 aluminium sprocket system
Freewheel: Instant Drive 360 aluminium sprocket system, available as
- HG11 freehub for Shimano and SRAM cassettes, compatible with 8-, 9-, 10- and 11-speed
- ED Campagnolo freehub body for Campagnolo 9-speed, 10-speed, 11-speed and 12-speed cassettes
- N3W Campagnolo freehub body for Campagnolo 13-speed cassettes
- SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
Recommended tyre width 25–32 mm
Maximum recommended rider weight: 120 kg
