Spare part: Mavic road bike disc hub

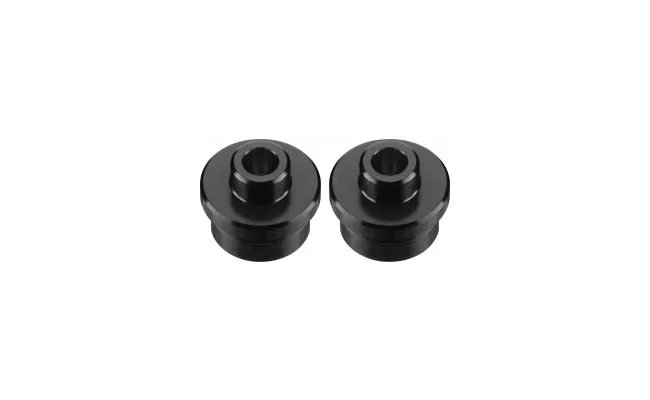

End stops for quick-release mounting for Mavic road bike front disc hubs with an internal axle diameter of 15 mm from model year 2016 onwards

Mavic front disc hub spare parts from 2016 onwards:

• No. 4: 99688601, BEARING KIT 9/15 DCL HUB
• No. 5: V2252401, MY16 FRONT AXLE ROAD DISC 9/12/15 CENTER LOCK
• No. 6: B4104301, 9mm FT road axle adapters 16
• No. 7: B4104201, 12mm FT road axle adapters 16
• No. 8: B4104401, 15mm FT Road Axle Adapters 16
• No. 10: 99688501, BEARING KIT 9/15 D6T HUB
• No. 11: V2252301, MY16 FRONT AXLE ROAD DISC 9/12/15 INT

Mavic Instant Drive 360 Rear Disc Hub Spare Parts:

• No. 5: V2560201, ID360 BEARINGS BIG
• No. 6: V2252701, KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601, ID360 SEAL + GREASE
• No. 8: V2251701, ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801, 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201, ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501, 3 ID360 WAVE WASHERS
• No. 13: V2251401, ID360 AXLE DISC CL
• No. 14: V2251101, ID360 HUB BOLT DISC CL
• No. 15: B4989801, Rear axle adapters 9mm/135 QR, centre lock
• No. 17: V2251301, ID360 AXLE DISC 6T
• No. 18: B4989401, Rear axle adapters 9mm QR
• No. 18: B4989801, Rear axle adapters 9mm QR CL
• No. 18: B4989601, Rear axle adapters 12/142
• No. 18: B4989901, Rear axle adapters 12/142 CL
• No. 19: V2251001, ID360 HUB BOLT UB+DISC 6T BIG

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
