Spare part: Mavic road bike disc hub

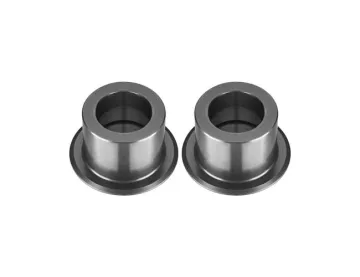

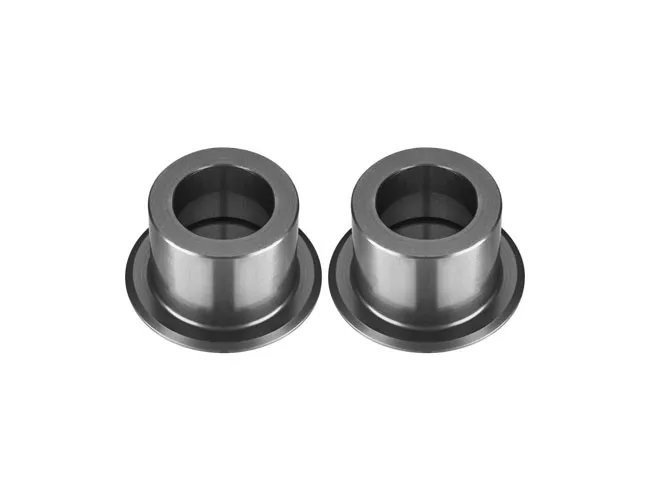

The end stop for X12 mm thru-axle mounting for Mavic road bike rear disc Centre Lock hubs with Instant Drive 360 freehub body from 2016 onwards.

The end stops for the Instant Drive Disc rear hubs are available in two versions: for INTL Disc 6-hole and for Centerlock hubs. On Centerlock hubs, the disc side is shorter than on Disc 6-hole hubs

Mavic front disc hub spare parts from 2016 onwards:

• No. 4: 99688601, BEARING KIT 9/15 DCL HUB
• No. 5: V2252401, MY16 FRONT AXLE ROAD DISC 9/12/15 CENTER LOCK
• No. 6: B4104301, 9mm FT road axle adapters 16
• No. 7: B4104201, 12mm FT road axle adapters 16
• No. 8: B4104401, 15mm FT Road Axle Adapters 16
• No. 10: 99688501, BEARING KIT 9/15 D6T HUB
• No. 11: V2252301, MY16 FRONT AXLE ROAD DISC 9/12/15 INT

Mavic Instant Drive 360 Rear Disc Hub Spare Parts:

• No. 5: V2560201, ID360 BEARINGS BIG
• No. 6: V2252701, KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601, ID360 SEAL + GREASE
• No. 8: V2251701, ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801, 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201, ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501, 3 ID360 WAVE WASHERS
• No. 13: V2251401, ID360 AXLE DISC CL
• No. 14: V2251101, ID360 HUB BOLT DISC CL
• No. 15: B4989801, Rear axle adapters 9mm/135 QR, centre lock
• No. 17: V2251301, ID360 AXLE DISC 6T
• No. 18: B4989401, Rear axle adapters 9mm QR
• No. 18: B4989801, Rear axle adapters 9mm QR CL
• No. 18: B4989601, Rear axle adapters 12/142
• No. 18: B4989901, Rear axle adapters 12/142 CL
• No. 19: V2251001, ID360 HUB BOLT UB+DISC 6T BIG
