Spare part: Mavic road bike disc hub

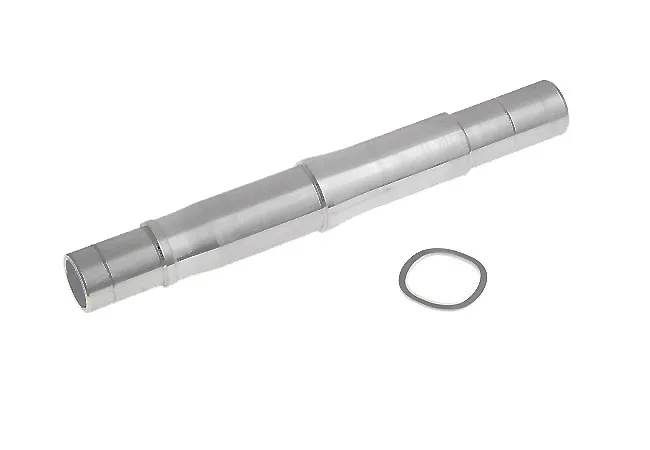

The axle for Mavic road bike rear disc 6-hole hubs with Instant Drive QRM+ from the 2016–17 model year onwards

In spring 2017, Mavic changed the axle system of the Instant Drive hubs from QRM+ to QRM auto. The rear hubs can be identified by the left-hand side of the axle, which is now black instead of silver and requires different spare parts and end stops

Part No. 17 of the exploded view

Mavic front disc hub spare parts from 2016 model year:

• No. 4: 99688601, BEARING KIT 9/15 DCL HUB
• No. 5: V2252401, MY16 FRONT AXLE ROAD DISC 9/12/15 CENTER LOCK
• No. 6: B4104301, 9x100mm Front Road Axle Adapters 16
• No. 7: B4104201, 12x100mm Front Road Axle Adapters 16
• No. 8: B4104401, 15x100mm Front Road Axle Adapters 16
• No. 10: 99688501, BEARING KIT 9/15 D6T HUB
• No. 11: V2252301, MY16 FRONT AXLE ROAD DISC 9/12/15 INT

Mavic Instant Drive 360 QRM Plus Rear Disc Hub Spare Parts:

• Item No: V2560201, ID360 Hub Bearing, dimensions 17x28x7mm and 15x28x7mm
• Item No: V2540410, ID360 Ceramic Hub Bearings, dimensions 17x28x7mm and 15x28x7mm
• Item No: V2251701, ID360 toothed discs (2 pieces) with spring and pad for noise reduction
• Item No: V2251801, ID360 toothed discs spring
• Item No: V2252601, Freewheel body seal
• Item No: V2252001, ID360 toothed discs, freehub body HG11
• Item No: V2252101, ID360 sprockets freehub body ED11
• Part No: V2580101, ID360 toothed disc freewheel body Sram XD
• Part No: V2252201, Spacer ring for 9- and 10-speed cassettes
• Item No: V2251501, Sprocket for axle
• Item No: V2251401, ID360 rear axle with splined disc hub, Centerlock
• Item No: V2251301, ID360 rear axle with splined disc 6-bolt
• Item No: V2251101, Left bearing cap for Centerlock hubs
• Item No: V2251001, Left bearing cap for Disc 6-hole hubs
• Item No: B4989801, End stops 10x135mm quick-release mount, Disc Centerlock
• Item No: B4989901, End stops 12x142 mm thru-axle mount, Disc Centerlock
• Item No: B4989401, End stops 10x135mm quick-release mount, Disc 6-hole
• Item No: B4989601, End stops 12x142 mm thru-axle mount, Disc 6-hole
• Item No: B4989501, End stops 12x135 mm thru-axle fitting, Disc 6-hole and Centerlock
