Spare part: Mavic road bike disc hub

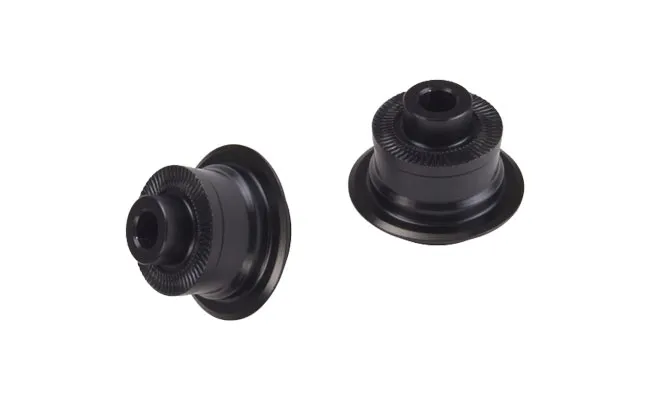

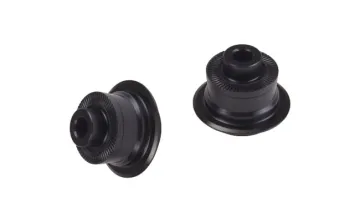

The end stop for 10x135 mm quick-release mounting for Mavic road bike rear disc 6-hole hubs with Instant Drive 360 freehub body from 2016 onwards.

The end stops for Instant Drive Disc rear hubs are available in two versions: for INTL Disc 6-hole and for Centerlock hubs. On Centerlock hubs, the disc side is shorter than on Disc 6-hole hubs

Mavic front disc hub spare parts from 2016 onwards:

• No. 4: 99688601, BEARING KIT 9/15 DCL HUB
• No. 5: V2252401, MY16 FRONT AXLE ROAD DISC 9/12/15 CENTER LOCK
• No. 6: B4104301, 9mm FT road axle adaptors 16
• No. 7: B4104201, 12mm FT road axle adapters 16
• No. 8: B4104401, 15mm FT Road Axle Adapters 16
• No. 10: 99688501, BEARING KIT 9/15 D6T HUB
• No. 11: V2252301, MY16 FRONT AXLE ROAD DISC 9/12/15 INT

Mavic Instant Drive 360 Rear Disc Hub Spare Parts:

• No. 5: V2560201, ID360 BEARINGS BIG
• No. 6: V2252701, KIT ID360 INSERT SHAPED EAR LOBE - 2017 MODELS
• No. 7: V2251601, ID360 SEAL + GREASE
• No. 8: V2251701, ID360 2 RATCHETS + SPRING + GREASE
• No. 9: V2251801, 3 ID360 SPRINGS
• No. 10: V2252001, ID360 HG11 FREEWHEEL
• No. 10: V2252101, ID360 ED11 FREEWHEEL
• No. 10: V2580101, ID360 XD FREEWHEEL
• No. 11: V2252201, ID360 2 REAR HUB RETENTION RING
• No. 12: V2251501, 3 ID360 WAVE WASHERS
• No. 13: V2251401, ID360 AXLE DISC CL
• No. 14: V2251101, ID360 HUB BOLT DISC CL
• No. 15: B4989801, Rear axle adapters 9mm/135 QR, centre lock
• No. 17: V2251301, ID360 AXLE DISC 6T
• No. 18: B4989401, Rear axle adapters 9mm QR
• No. 18: B4989801, Rear axle adapters 9mm QR CL
• No. 18: B4989601, Rear axle adapters 12/142
• No. 18: B4989901, Rear axle adapters 12/142 CL
• No. 19: V2251001, ID360 HUB BOLT UB+DISC 6T BIG

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
