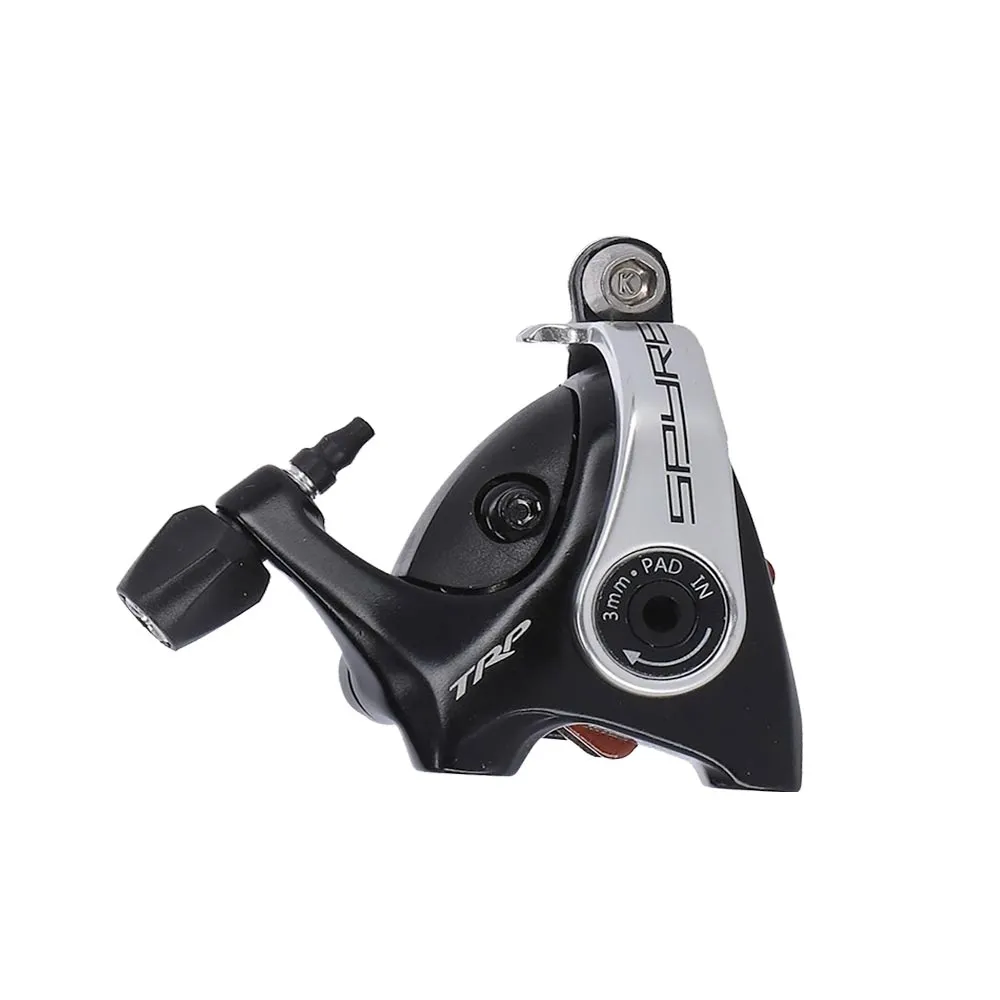

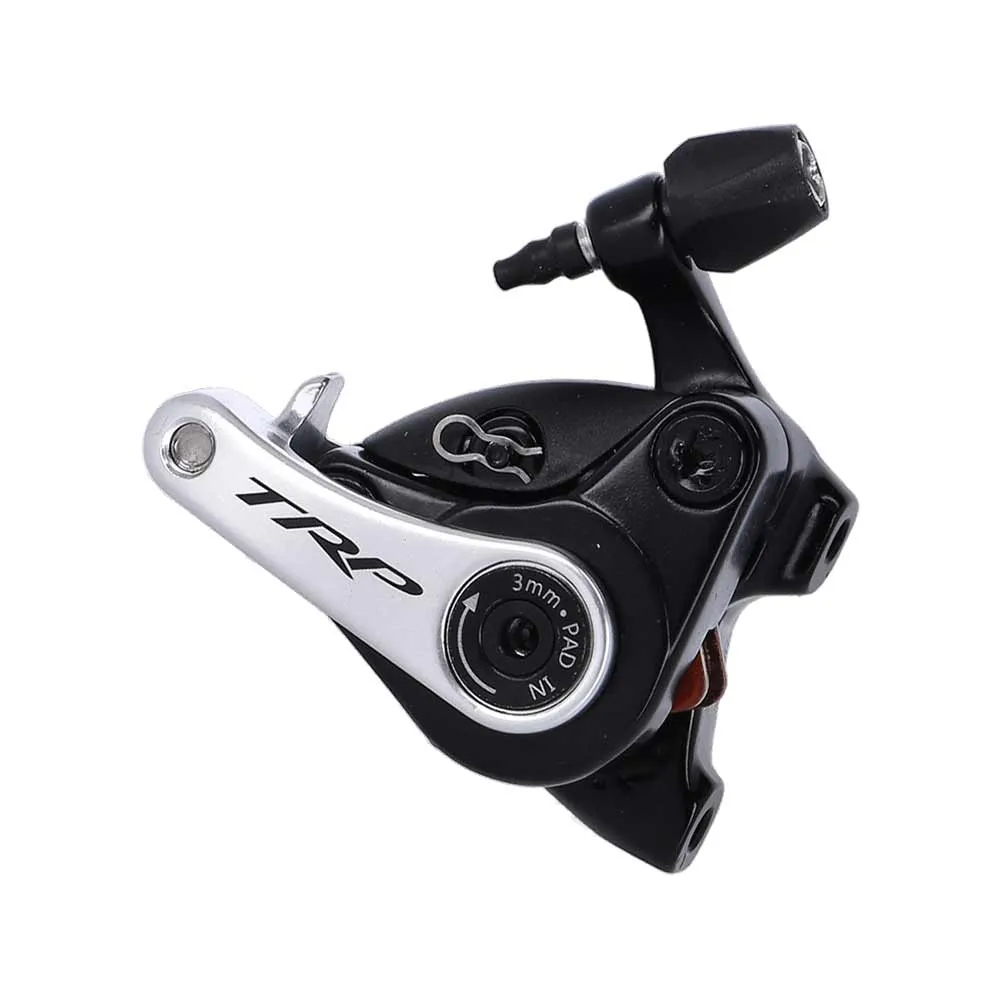

TRP Spyre mechanical disc brake

The mechanical disc brake for road bikes and cyclocross bikes, compatible with all mechanical brake levers.

The Spyre Mechanical Disc Brake combines the highest quality standards with a high degree of innovation. As with a hydraulic brake, both pads are activated, ensuring precisely controllable braking power and even pad wear. A simple adjustment screw is all that is needed for tool-free adjustment or re-adjustment of the pads. The compact dimensions, just 40 mm wide, the low weight and compatibility with all standard mechanical road brake levers on the market round off the Spyre.

TRP Spyre Disc Brakes Technology:

• Material: Aluminium
• Compatibility: for Sram, Shimano, Campagnolo mechanical brake levers
• Suitable for front and rear wheel installation
• Also compatible with Shimano M525/515 pads
• Adapters and discs sold separately
• Brake disc size: 140 mm or 160 mm, 160 mm recommended for the front
• Brake mounting: Flat Mount standard
• Weight: 154 grams

Included:

TRP Spyre mechanical disc brake for road bikes and cyclocross bikes, including brake pads, without adapter

Flat Mount caliper standard:

The Flat Mount caliper standard, developed for road and gravel disc brakes, reduces weight and offers a significantly sleeker look. These brakes are only approved for disc sizes from 140 to 160 mm.

With the Flat Mount standard, the rear brake caliper sits directly on the chainstay; no adapter is required for 140 mm disc sizes to mount the brake caliper. For 160 mm disc sizes, an additional adapter is required, which is then mounted between the brake caliper and the frame. The bolts pass through the chainstay from below directly into the brake caliper.

A flat adapter is also required on the fork. The adapter is screwed onto the rear of the fork leg, with the brake sitting directly on the adapter. By flipping the adapter over, the available brake disc sizes of 140 and 160 mm can be changed.

Bolt spacing: brake caliper 34 mm, frame rear triangle 34 mm, front fork 70 mm
