Shimano XT Rear Derailleur RD M786 Spare Part

Contains the spare part marked No. 6 for the Shimano XT rear derailleur RDM 786.

Compatible with Shimano rear derailleurs RDM786, RDM675, RDM820

The Shadow Plus rear derailleur RDM 786 features a switch on the derailleur cage that allows for a stiffer spring tension to be set and a friction stabiliser to be activated. This counteracts the forces generated by the chain’s up and down movements on rough terrain.

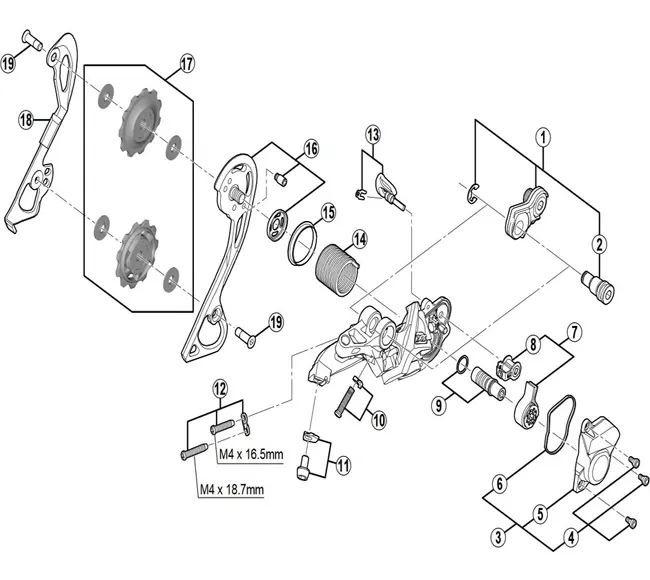

Shimano XT RD M786 rear derailleur spare parts:

• No. 1: Y5Y098010, rear derailleur mount with axle
• No. 2: Y50Y17000, rear derailleur hanger for direct mounting
• No. 3: Y5Y198060, housing for rear derailleur screw
• No. 4: Y5Y198070, stabiliser cover screws (3 pieces)
• No. 5: Y50Z13100, Stabiliser cover
• No. 6: Y5Y219000, stabiliser seal ring
• No. 7: Y5Y198020, Stabiliser unit
• No. 8: Y5Y198120, cam unit
• No. 9: Y5Y198040, Shift shaft assembly
• No. 10: Y5XP98030, Adjustment screw
• No. 11: Y5W798030, Shift cable clamping screw
• No. 12: Y5W798020, Limit screws (2 pcs)
• No. 13: Y5Y198010, Shift lever assembly
• No. 14: Y5XD19000, Shift lever spring
• No. 15: Y5XD15000, Sealing ring
• No. 16: Y5Y198080, outer shift lever GS
• No. 16: Y5Y198090, outer shift lever SGS
• No. 17: Y5XF98130, derailleur pulley set 9-10 speed
• No. 18: Y5XC09100, inner derailleur hanger GS
• No. 18: Y5Y010000, inner derailleur hanger SGS
• No. 19: Y53M24000, derailleur pulley screw, 1 pc

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
