Spare part Deore XT BL M8000

This spare part for the Deore XT BL M8000 brake lever corresponds to figure 3 in the exploded view.

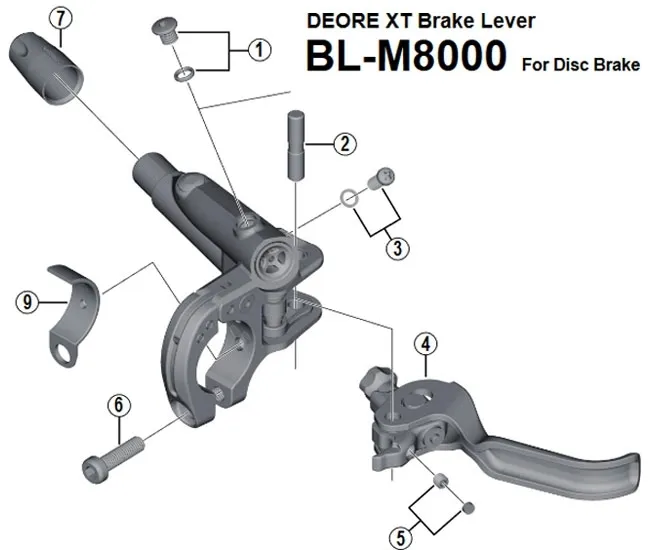

Shimano BL-M8000 Brake Lever Spare Parts

• No. 1: Y8V398010, Bleed Screw, M5 x 4.7, and O-ring
• No. 2: Y8VC05000, Lever Axle ø5

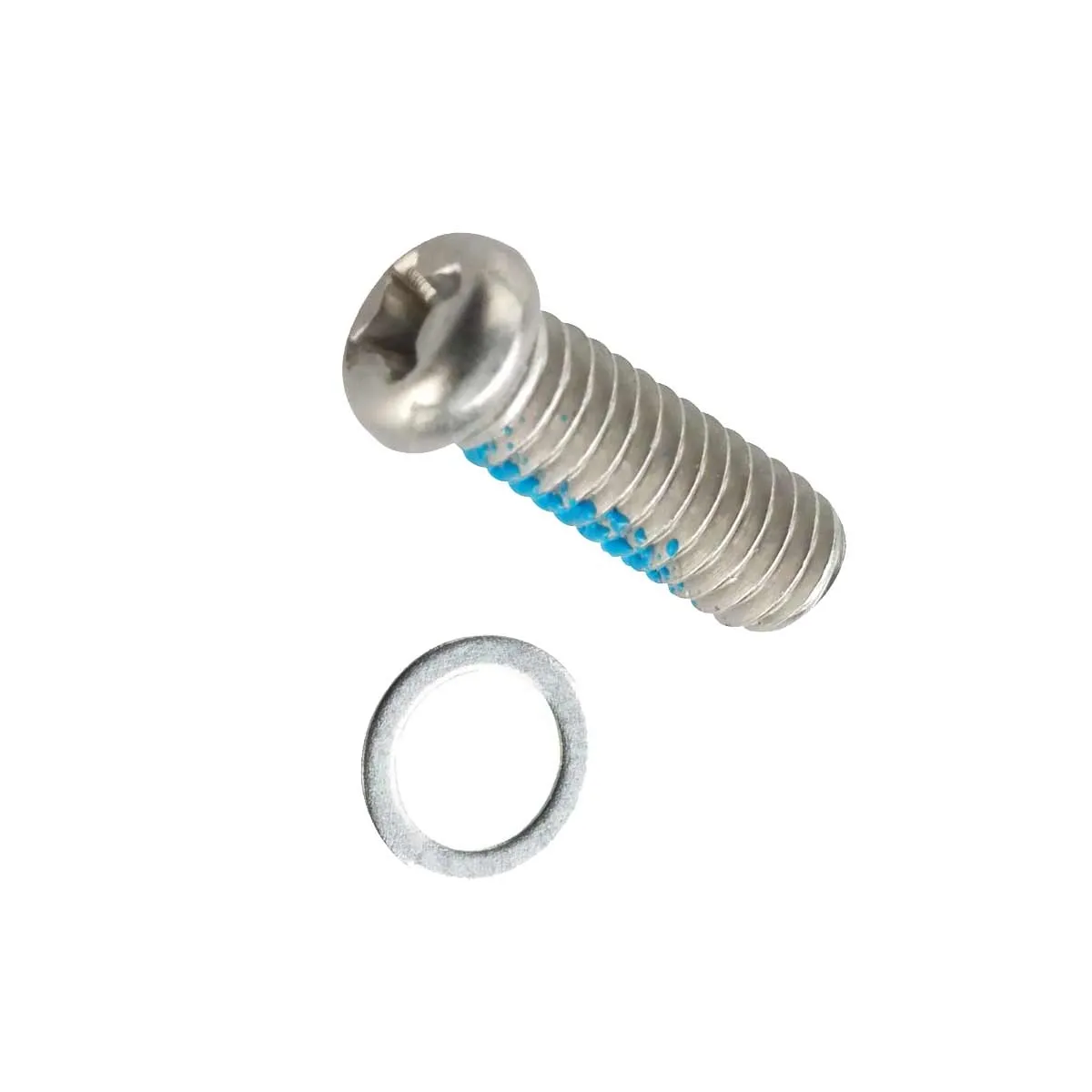

• No. 3: Y8VC98070, Stroke Adjust Screw and Shim, 0.3 mm
• No. 4: Y8MX98010, R.H. Lever Member Unit
• No. 4: Y8MX98020, L.H. Lever Member Unit
• No. 5: Y8V398040, Lever Axle Fixing Bolt and Cap
• No. 6: Y8VC10000, Clamp Bolt, M5 x 18
• No. 7: Y8WM14000, Cover
• No. 8: ESMDISCBP
• No. 9: Y8WM05000, BL Band Adapter

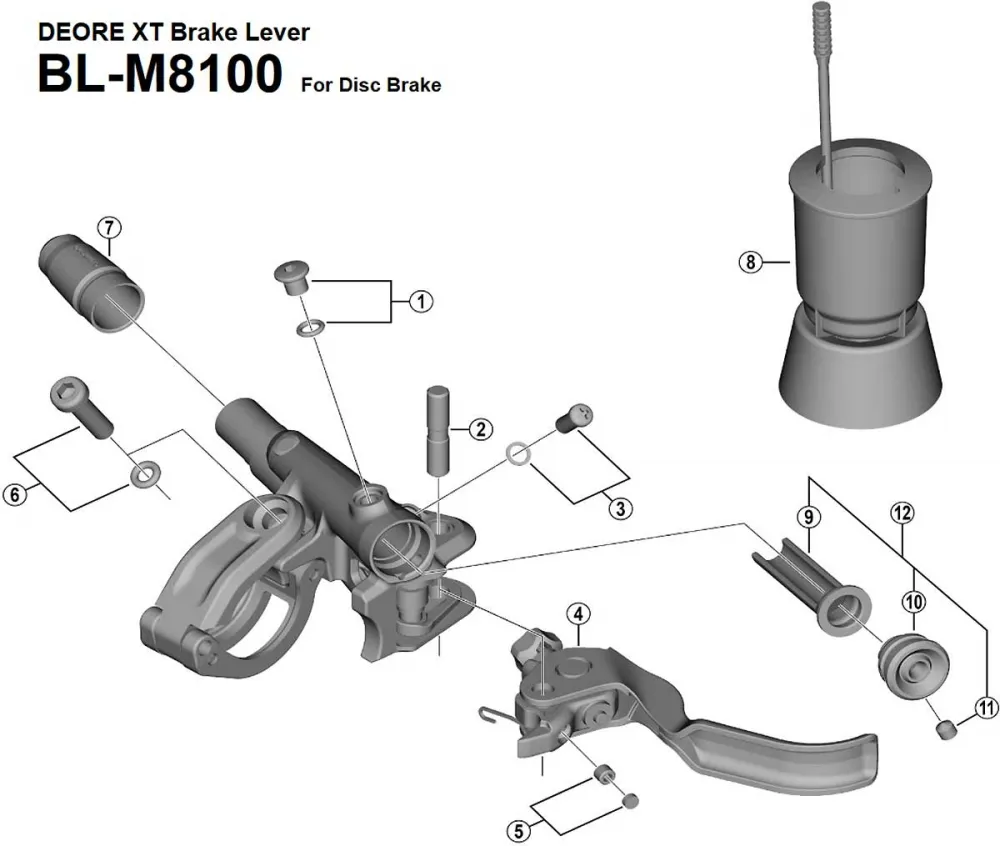

Shimano Deore XT BL-M8100 Disc Brake Lever Spare Parts

• No. 1: Y8V398010 - Expansion tank screw
• No. 2: Y8VC05000 - Lever Axle
• No. 3: Y8VC98070 - Pressure point adjustment screw
• No. 4: Y2RR98010 - Right-hand brake lever
• No. 4: Y2RR98020 - Left brake lever
• No. 5: Y8V398040 - Handle axle screw
• No. 6: Y2RR98030 - Clamping screw
• No. 7: Y1XJ16000 – Brake line cover
• No. 8: Y13000100 - TL-BR003 oil funnel
• No. 9: Y1XK9801T - Diaphragm
• No. 10: Y1XJ9801T – Diaphragm cap
• No. 11: Y8SZ07000 – Clamping screw, lever shaft
• No. 12: Y1XK98030 - Diaphragm assembly
