Shimano Deore XT FD M8025 spare part

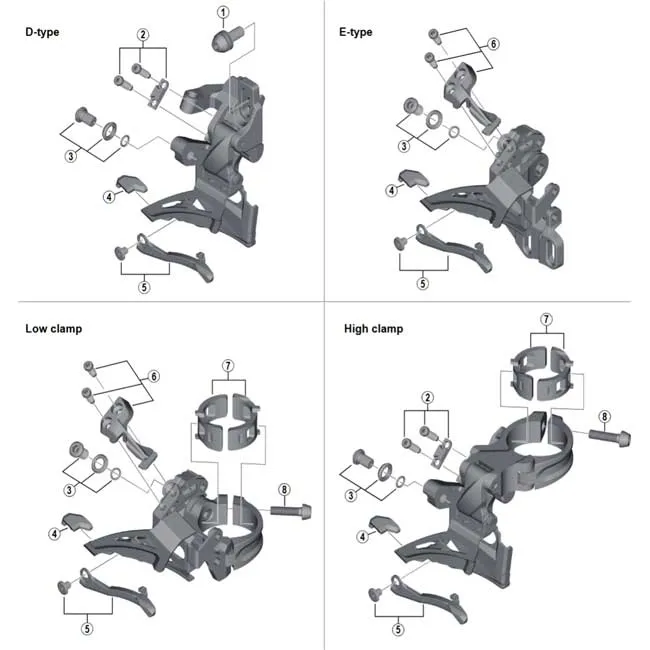

This spare part for the Deore XT FD-M8020 front derailleur corresponds to figure 2 of the exploded view.

Shimano FD-M8025 rear derailleur spare parts

• No. 1: Y5S415000, Clamp Bolt, M6 x 16
• No. 2: Y5S898010, Stroke Adjust Screws, M4 x 13.7, and Plate
• No. 3: Y5S898020, Cable Fixing Bolt Unit
• No. 4: Y5RC08000, Rubber Pad B
• No. 5: Y5RC98020, Chain Catcher and Fixing Bolt, M4 x 5
• No. 6: Y5RD98010, Stroke Adjust Screws, M4 x 8.5, and Plate
• No. 7: Y57Y98030, Clamp Band Adapters for S-size / ø28.6 mm, 1-1/8
• No. 7: Y57Y98040, Clamp Band Adapters for M-size / ø31.8 mm, 1-1/4
• No. 8: Y5S207000, Clamp Bolt, M5 x 18.5
