Shimano Deore XTR and XT rear derailleur spare part

Part No. 7 in the exploded view.

Shimano XTR RD M9000 rear derailleur spare parts:

• No. 1: Y5PV98010, axle unit
• No. 2: Y5PV15000, rear derailleur hanger
• No. 3: Y5PV98030, housing for rear derailleur bolt
• No. 4: Y5Y198070, screw for rear derailleur housing
• No. 5: Y5PV98190, derailleur housing plus cover and cap
• No. 6: Y5PV25000, Seal for derailleur housing
• No. 7: Y5PV98040, Stabiliser unit
• No. 8: Y5PV98050, cam unit
• No. 9: Y5PV98060, derailleur axle unit with seal
• No. 10: Y5PV98070, Adjusting screw with tension spring
• No. 11: Y5PV98080, cable clamp screw with retaining clip
• No. 12: Y5PV98090, Adjustment screw with plate
• No. 13: Y5PV98100, Shift lever assembly with screw
• No. 14: Y5PV17000, tension spring
• No. 15: Y5PV24000, Sealing ring P
• No. 16: Y5PV98120, outer chain guide plate GS
• No. 16: Y5PV98130, outer chain guide plate SGS
• No. 17: Y5PV98160, Shift roller set for GS and SGS
• No. 18: Y5PV09100, inner chain guide plate GS
• No. 18: Y5PV10100, inner chain guide plate SGS
• No. 19: Y5WJ21100, Bolt for pulley
• No. 20: Y5PV48000, Tab for cable clamp screw
• No. 21: Y04120800, Special grease

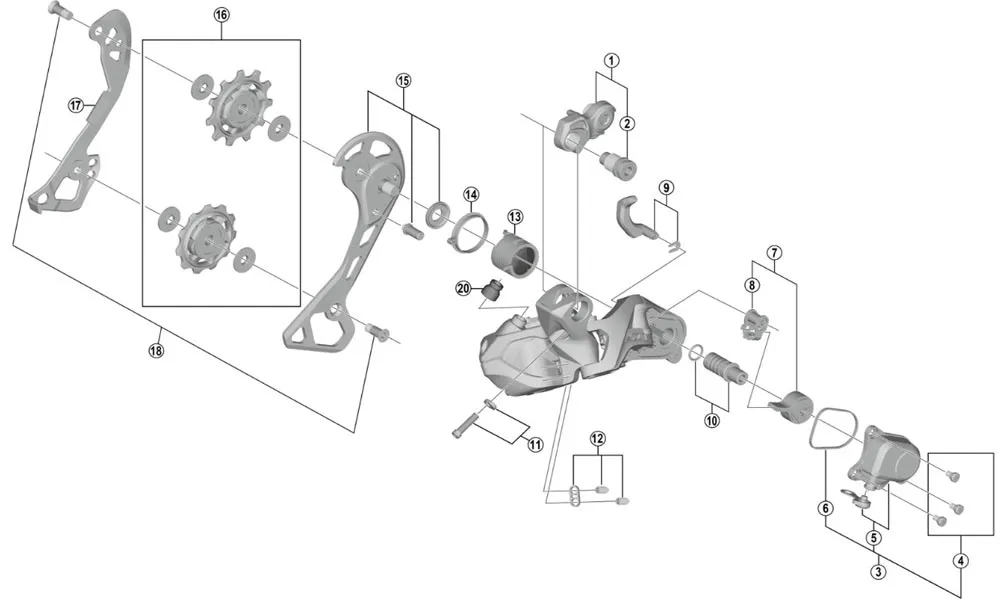

Shimano Deore XT Di2 RD-M8050 11-speed rear derailleur spare parts:

• No. 1: Y5ZN98010 - Axle unit
• No. 2: Y5ZN00023 – Axle, rear derailleur hanger
• No. 3: Y5ZN98020 – Housing unit
• No. 4: Y5Y198070 - Housing fixing screws
• No. 5: Y5ZN98030 - Complete housing - Sold out
• No. 6: Y5ZN00031 - Housing seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y5ZN98040 - Gear lever unit
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y5ZN98050 – Tension spring adjustment screw
• No. 12: Y5ZN98060 – Stop screws, complete
• No. 13: Y5PU13100 – Tension spring
• No. 14: Y5PU130T0 – Tension spring seal
• No. 15: Y5ZN98070 – Outer GS chain guide plate, complete
• No. 16: Y5RT98120 – Set of shift rollers
• No. 17: Y5PU09100 – GS inner chain guide plate
• No. 18: Y5V598140 – Shift roller screws
• No. 19: Y0412080A – Special grease for stabiliser
• No. 20: Y5PU130Y0 - Rubber boot

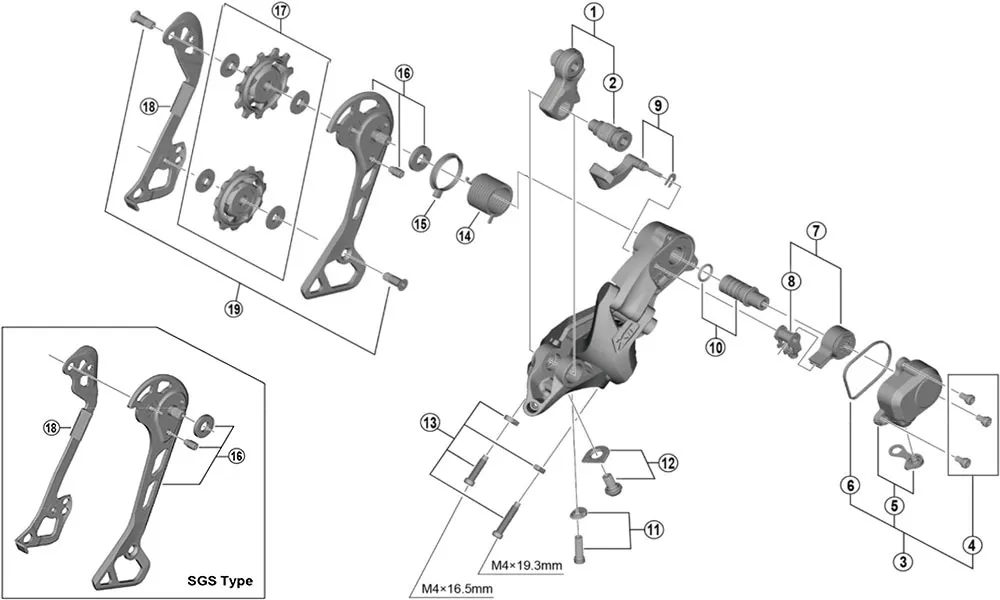

Shimano Deore XT RD-M8000 11-speed rear derailleur spare parts:

• No. 1: Y5RT98010 - Axle unit, rear derailleur hanger
• No. 2: Y5RT26000 - Axle for rear derailleur hanger
• No. 3: Y5RT98020 - Housing assembly
• No. 4: Y5Y198070 - Complete set of fixing screws
• No. 5: Y5RT98150 - Housing complete
• No. 6: Y5RT16000 - Housing seal
• No. 7: Y5PV98040 – Stabiliser unit
• No. 8: Y5PV98050 – Cam unit
• No. 9: Y5RT98030 – Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y5RT98050 – Adjustment screw, complete
• No. 12: Y5RT98060 – Shift cable clamp screw, complete
• No. 13: Y5RT98070 – Stop screws, complete
• No. 14: Y5PV17000 - Tension spring
• No. 15: Y5PV24000 – Tension spring seal
• No. 16: Y5RT98080 – Outer GS chain guide plate, complete
• No. 16: Y5RT98090 – Outer SGS chain guide plate, complete
• No. 17: Y5RT98120 - Set of shift rollers
• No. 18: Y5RT09000 – GS inner chain guide plate
• No. 18: Y5RT10000 - SGS inner chain guide plate
• No. 19: Y5V598140 - Shift roller screws
