Shimano Deore XT RD-M8000 spare part

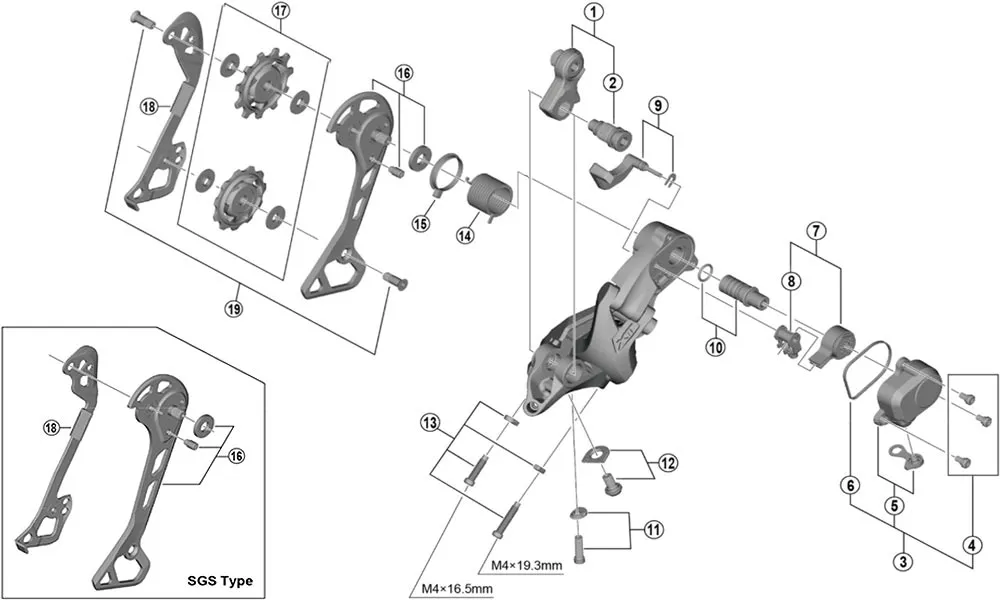

Item No. 11 in the exploded view

Shimano Deore XT RD-M8000 11-speed rear derailleur spare parts:

• No. 1: Y5RT98010 – Axle unit, rear derailleur hanger
• No. 2: Y5RT26000 – Axle, rear derailleur hanger
• No. 3: Y5RT98020 – Housing unit
• No. 4: Y5Y198070 – Mounting screws, complete
• No. 5: Y5RT98150 - Housing complete
• No. 6: Y5RT16000 - Housing seal
• No. 7: Y5PV98040 – Stabiliser unit
• No. 8: Y5PV98050 – Cam unit
• No. 9: Y5RT98030 – Gear lever unit
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y5RT98050 – Adjustment screw, complete
• No. 12: Y5RT98060 – Shift cable clamp screw, complete
• No. 13: Y5RT98070 – Stop screws, complete
• No. 14: Y5PV17000 - Tension spring
• No. 15: Y5PV24000 – Tension spring seal
• No. 16: Y5RT98080 – Outer GS chain guide plate, complete
• No. 16: Y5RT98090 - Outer SGS chain guide plate, complete
• No. 17: Y5RT98120 – Set of shift rollers
• No. 18: Y5RT09000 – GS inner chain guide plate
• No. 18: Y5RT10000 - SGS inner chain guide plate
• No. 19: Y5V598140 - Shift roller screws

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
