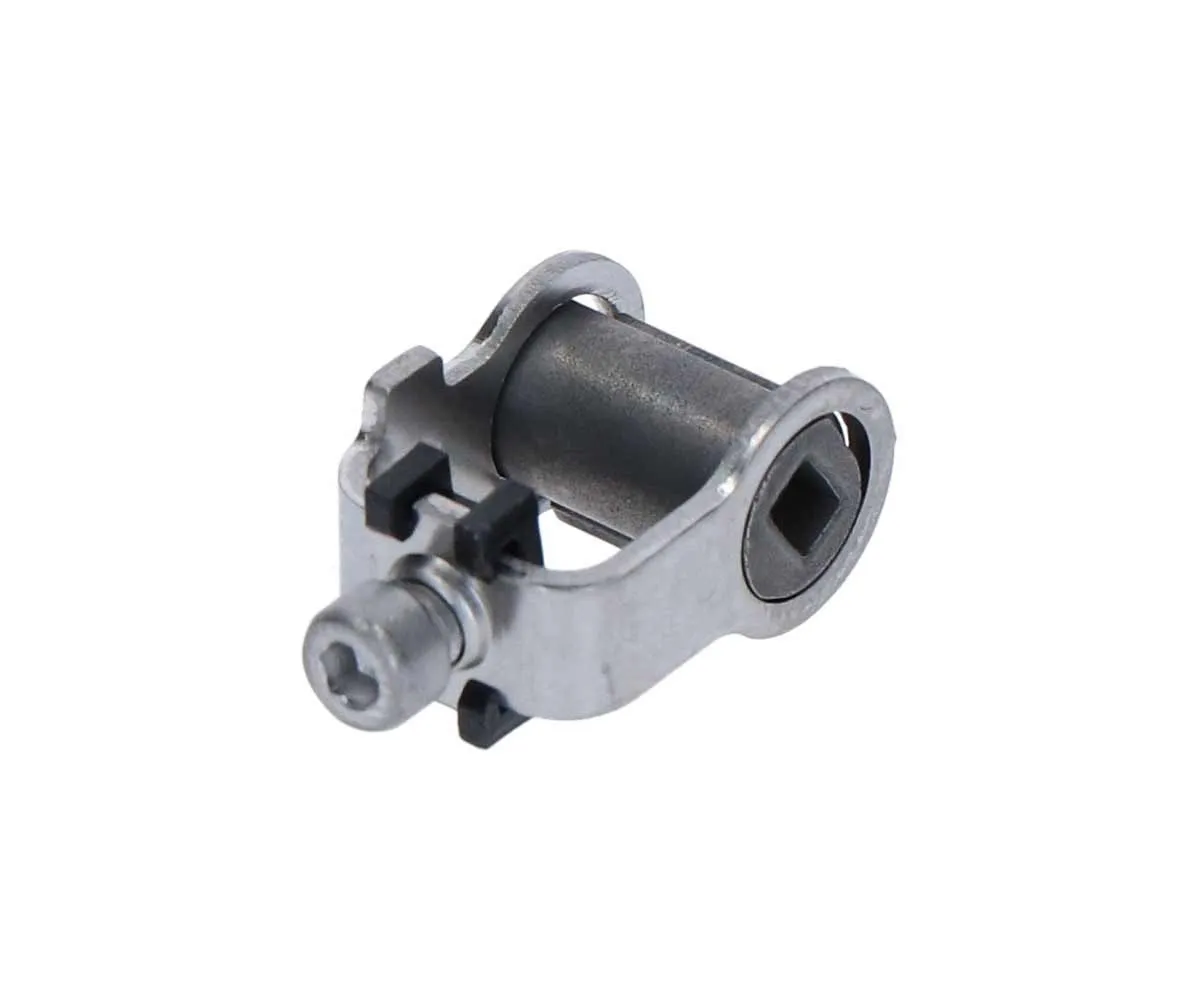

Shimano rear derailleur spare part

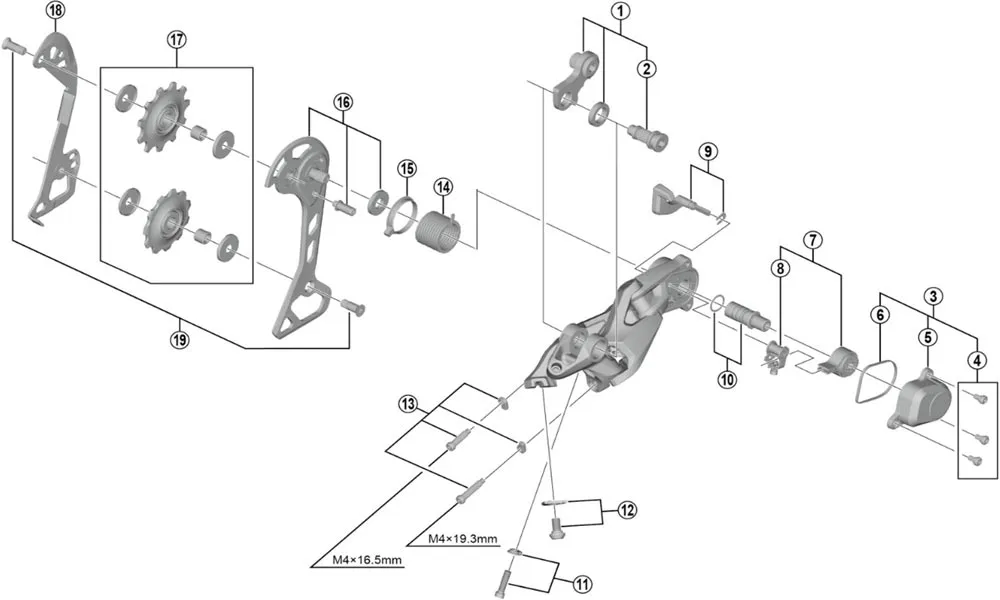

Part No. 8 in the exploded view.

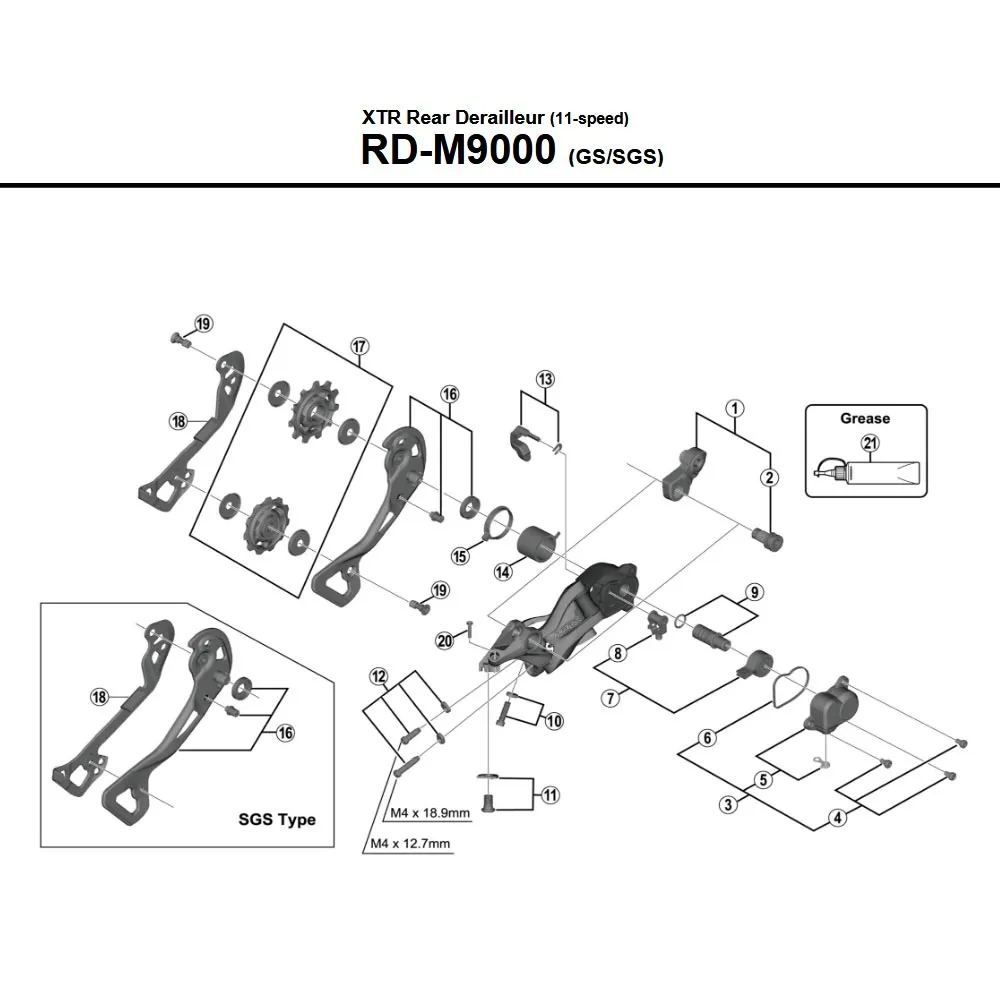

Shimano XTR RD-M9000 rear derailleur spare parts:

• No. 1: Y5PV98010, frame mounting kit
• No. 2: Y5PV15000, screw for Direct Mount rear derailleur bracket
• No. 3: Y5PV98030, housing cover, screws, sealing ring and cap
• No. 4: Y5Y198070, screws for stabiliser cover (3 pieces)
• No. 5: Y5PV98190, housing cover and cap
• No. 6: Y5PV25000, Sealing ring for housing cover
• No. 7: Y3GF98040, stabiliser unit
• No. 8: Y3E498040, cam unit
• No. 9: Y5PV98060, rear derailleur axle and O-ring
• No. 10: Y5PV98070, Limit screw and plate
• No. 11: Y5PV98080, cable clamp screw and plate
• No. 12: Y5PV98090, Adjustment screw for rear derailleur and plate
• No. 13: Y5PV98100, Shift lever assembly
• No. 14: Y5PV17000, tension spring
• No. 15: Y5PV24000, Sealing ring P for tension spring
• No. 16: Y5PV98120, outer chain guide plate GS with stop pin and plate
• No. 16: Y5PV98130, outer SGS chain guide plate with stop pin and plate
• No. 17: Y5PV98160, set of shift rollers for GS and SGS
• No. 18: Y5PV09100, GS inner chain guide plate
• No. 18: Y5PV10100, SGS inner chain guide plate
• No. 19: Y5WJ21100, Shift roller screws (2 pieces)
• No. 20: Y5PV48000, rubber grommet for cable

Shimano XTR RD-M9100 rear derailleur spare parts:

• No. 1: Y3FA98010 - Axle unit for rear derailleur hanger
• No. 2: Y3FA42000 - Axle for rear derailleur hanger
• No. 3: Y3FA98020 – Housing cover, complete
• No. 4: Y5Y198070 – Screws for housing cover
• No. 5: Y3FA98030 - Housing cover + cap
• No. 6: Y3FA63000 - Sealing ring for housing cover
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y3FA98040 – Gear lever unit
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y3FA98050 – Stop screws, complete
• No. 12: Y3FA98060 – Shift cable clamp screw, complete
• No. 13: Y5PV98070 – Adjustment screw, complete, for tension spring
• No. 14: Y5PV48000 - Tab for shift cable clamp screw
• No. 15: Y3FA55000 - Tension spring
• No. 16: Y3FA62000 - Sealing ring for tension spring
• No. 17: Y3FA98070 - GS outer chain guide plate, complete
• No. 17: Y3FA98080 - SGS outer chain guide plate, complete
• No. 18: Y3FA59000 - Impact protection for GS/SGS outer chain guide
• No. 19: Y3FA98090 - Set of shift rollers
• No. 20: Y3FA16000 - GS inner chain guide plate
• No. 20: Y3FA26000 - SGS inner chain guide plate
• No. 21: Y5XX98130 - Shift roller screws
• No. 22: Y0412080A - Special grease for stabiliser
• No. 23: Y3FA98100 - Stabiliser kit unit

Shimano XTR RD-M9120 rear derailleur spare parts:

• No. 1: Y3FA98010 - Axle unit for rear derailleur hanger
• No. 2: Y3FA42000 - Axle for rear derailleur hanger
• No. 3: Y3FB98010 - Housing cover, complete
• No. 4: Y5Y198070 - Screws for housing cover
• No. 5: Y3FB98020 - Housing cover + cap
• No. 6: Y5PV25000 - Sealing ring for housing cover
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 – Cam unit
• No. 9: Y3FB98030 – Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y3FB98040 – Stop screws, complete
• No. 12: Y5PV98080 – Shift cable clamp screw, complete
• No. 13: Y5PV98070 – Adjustment screw, complete, for tension spring
• No. 14: Y5PV48000 - Tab for shift cable clamp screw
• No. 15: Y5PV17000 - Tension spring
• No. 16: Y5PV24000 - Sealing ring for tension spring
• No. 17: Y3FB98050 – SGS outer chain guide plate, complete
• No. 18: Y3FA98090 - Set of shift rollers
• No. 19: Y3FA26000 - SGS inner chain guide plate
• No. 20: Y5XX98130 – Shift roller screws
• No. 21: Y04121000 - Special grease for stabiliser
• No. 22: Y3FB98060 - Stabiliser kit unit

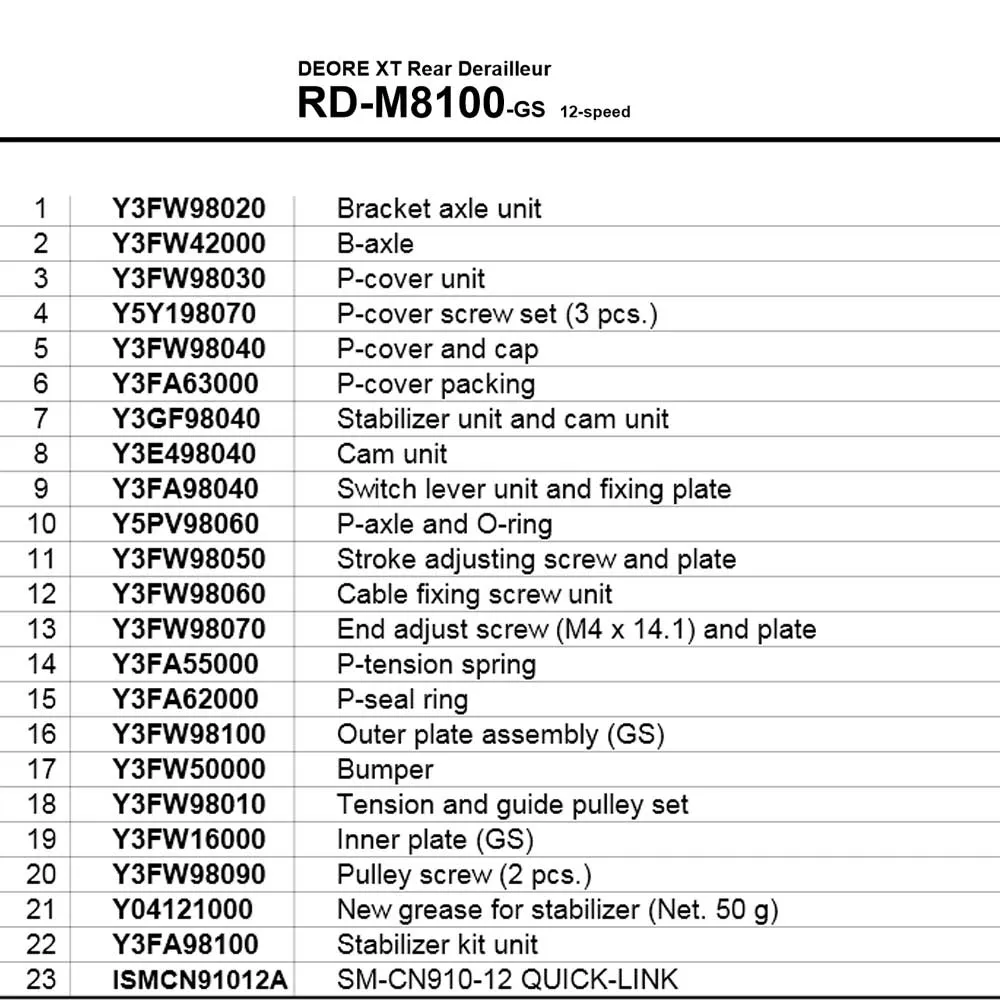

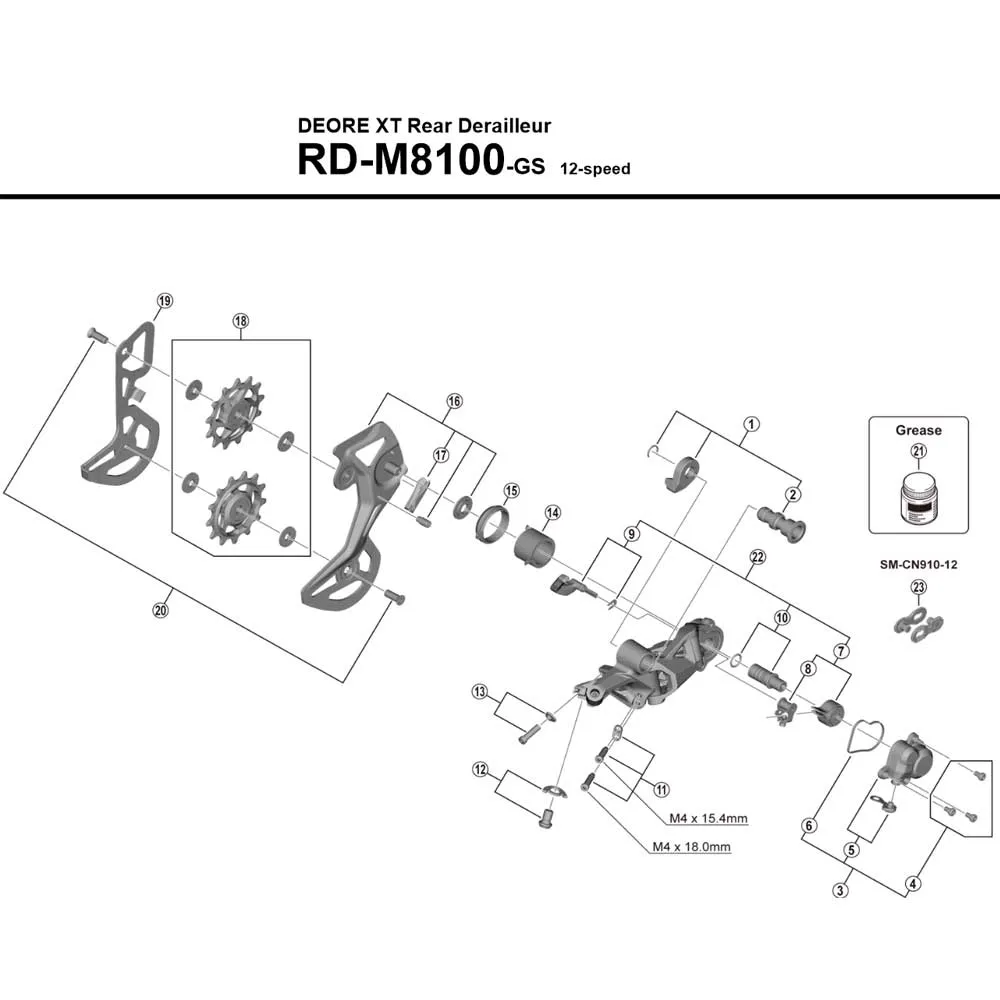

Shimano Deore XT RD-M8100 Rear Derailleur Spare Parts:

• No. 1: Y3FW98020 - Rear derailleur hanger axle unit
• No. 2: Y3FW42000 - Rear derailleur hanger axle
• No. 3: Y3FW98030 - Housing unit
• No. 4: Y5Y198070 - Housing cover screws
• No. 5: Y3FW98040 - Housing cover + cap
• No. 6: Y3FA63000 - Seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y3FA98040 - Gear lever assembly
• No. 10: Y5PV98060 - Shift shaft assembly
• No. 11: Y3FW98050 - Stop screws + plate
• No. 12: Y3FW98060 – Shift cable clamping screw + plate
• No. 13: Y3FW98070 – Adjustment screw for tension spring + plate
• No. 14: Y3FA55000 - Tension spring
• No. 15: Y3FA62000 – Sealing ring
• No. 16: Y3FW98100 – GS outer chain guide plate, complete
• No. 16: Y3FW98080 – SGS outer chain guide plate, complete
• No. 17: Y3FW50000 - GS/SGS impact guard
• No. 18: Y3FW98010 – Set of sprockets
• No. 19: Y3FW16000 – GS inner chain guide plate
• No. 19: Y3FW26000 - SGS inner chain guide plate
• No. 20: Y3FW9809 - Shift roller screws
• No. 21: Y04121000 – Special grease for stabiliser
• No. 22: Y3FA98100 - Stabiliser kit unit

Shimano Deore XT Di2 RD-M8050 11-speed rear derailleur spare parts:

• No. 1: Y5ZN98010 - Axle unit
• No. 2: Y5ZN00023 - Axle derailleur hanger
• No. 3: Y5ZN98020 - Housing unit
• No. 4: Y5Y198070 - Housing mounting screws
• No. 5: Y5ZN98030 - Complete housing - Sold out
• No. 6: Y5ZN00031 – Housing seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y5ZN98040 - Gear lever unit for the
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y5ZN98050 – Tension spring adjustment screw
• No. 12: Y5ZN98060 – Stop screws, complete
• No. 13: Y5PU13100 – Tension spring
• No. 14: Y5PU130T0 – Tension spring seal
• No. 15: Y5ZN98070 – Outer GS chain guide plate, complete
• No. 16: Y5RT98120 – Set of shift rollers
• No. 17: Y5PU09100 – GS inner chain guide plate
• No. 18: Y5V598140 - Shift roller screws
• No. 19: Y0412080A – Special grease for stabiliser
• No. 20: Y5PU130Y0 - Rubber sleeve

Shimano SLX RD-M7000 11-speed rear derailleur spare parts:

• No. 1: Y5YX98020 - Axle unit, rear derailleur hanger
• No. 2: Y5RT26000 - Axle for rear derailleur hanger
• No. 3: Y5YX98030 - Housing unit
• No. 4: Y5Y198070 - Complete set of fixing screws
• No. 5: Y5YX41000 - Housing
• No. 6: Y5RT16000 – Housing seal
• No. 7: Y3GF98040 – Stabiliser unit
• No. 8: Y3E498040 – Cam unit
• No. 9: Y5YX98040 – Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y5YX98050 – Shift cable adjustment screw, complete
• No. 12: Y5RT98060 – Shift cable clamp screw, complete
• No. 13: Y5YX98060 - Stop screws, complete
• No. 14: Y5PV17000 - Tension spring
• No. 15: Y5PV24000 - Tension spring seal
• No. 16: Y5YX98070 - Outer GS chain guide plate, complete
• No. 17: Y5RS98010 - Set of shift rollers
• No. 18: Y5YX16000 – GS inner chain guide plate
• No. 19: Y50J98070 – Shift roller screws
• No. 20: Y04121000 - Special grease for stabiliser

Shimano GRX RD-RX812 11-speed rear derailleur spare parts:

• No. 1: Y3E998020 - Axle unit for rear derailleur hanger
• No. 2: Y3E958000 - Axle for Direct Mount rear derailleur hanger
• No. 3: Y3GF98010 - Complete derailleur housing
• No. 4: Y5Y198070 - Screws for derailleur housing
• No. 5: Y3GF41000 - Derailleur housing
• No. 6: Y5RT16000 - Seal for derailleur housing
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y5YX98040 - Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y3E998030 – Shift cable adjustment screw, complete
• No. 12: Y5PV48000 – Tab for shift cable adjustment screw
• No. 13: Y3E998040 - Adjustment screw, complete, for axle unit
• No. 14: Y3GF98020 - Shift cable clamping screw, complete
• No. 15: Y5YX98060 - Stop screws, complete
• No. 16: Y5PV17000 - Tension spring
• No. 17: Y5PV24000 - Seal for tension spring
• No. 18: Y3GF98030 - Outer chain guide plate, complete
• No. 19: Y3E998010 - Set of shift rollers
• No. 20: Y5RT09000 – Inner chain guide plate
• No. 21: Y3GE98050 – Shift roller screws
• No. 22: Y04121000 - Special grease for stabiliser

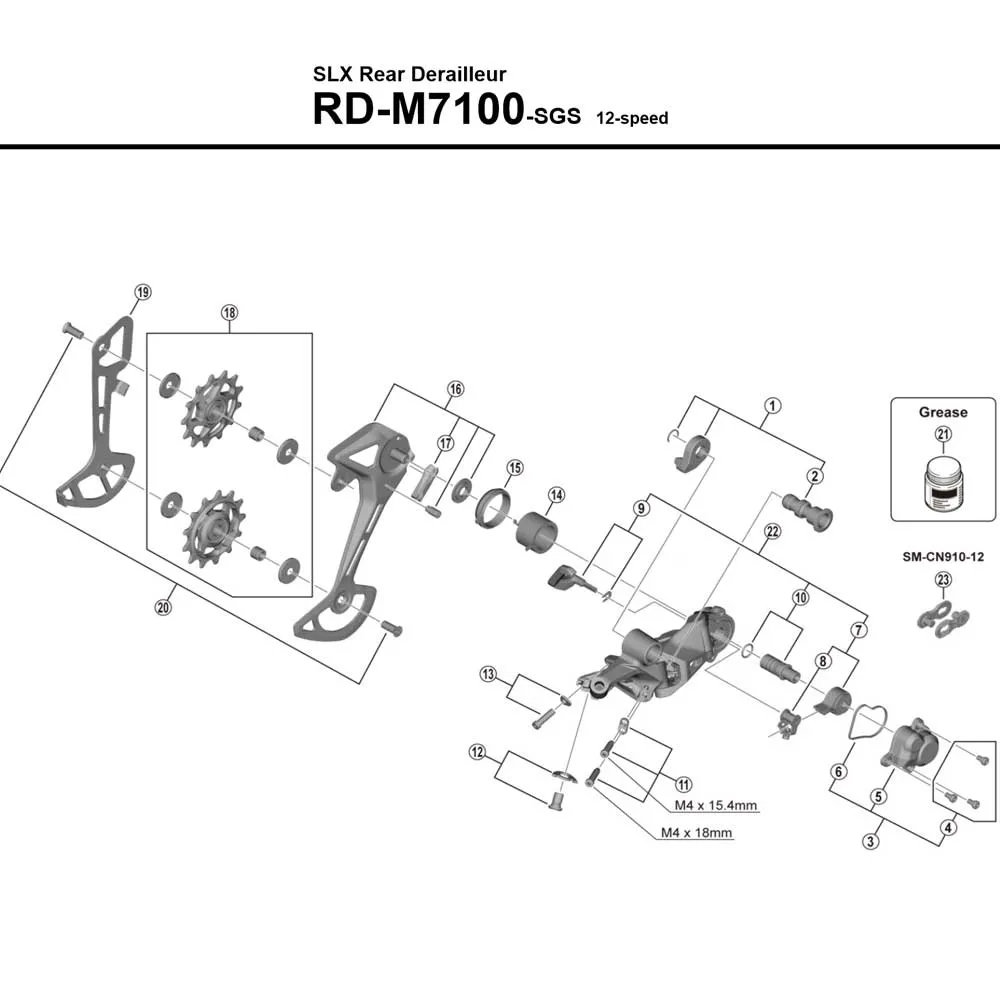

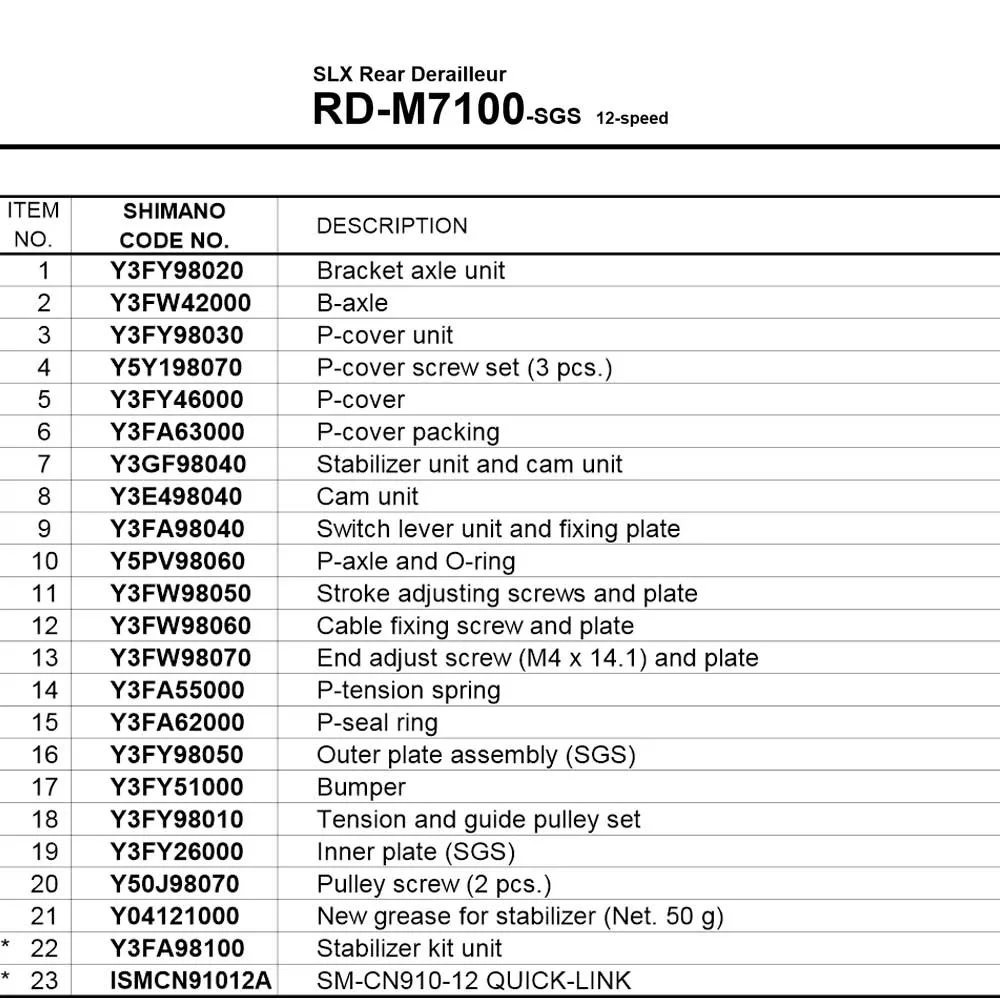

Spare parts for Shimano RD-M7100 rear derailleur:

• No. 1: Y3FY980200 - Axle unit, rear derailleur hanger
• No. 2: Y3FW42000 - Rear derailleur hanger axle
• No. 3: Y3FY98030 - Housing assembly
• No. 4: Y5Y198070 – Complete set of fixing screws
• No. 5: Y3FY46000 – Housing complete
• No. 6: Y3FA63000 – Housing seal
• No. 7: Y3GF98040 – Stabiliser unit
• No. 8: Y3E498040 – Cam unit
• No. 9: Y3FA98040 – Gear lever unit
• No. 10: Y5PV98060 – Shift shaft unit
• No. 11: Y3FW98050 – Adjustment screw, complete
• No. 12: Y3FW98060 – Shift cable clamp screw, complete
• No. 13: Y3FW98070 – Stop screws, complete
• No. 14: Y3FA55000 – Tension spring
• No. 15: Y3FA62000 – Tension spring seal
• No. 16: Y3FY98050 – SGS outer chain guide plate, complete
• No. 16: Y5RT98090 – SGS outer chain guide plate, complete
• No. 17: Y3FY51000 – Bumper
• No. 18: Y3FY98010 – Set of shift rollers
• No. 19: Y3FY26000 – SGS inner chain guide plate
• No. 19: Y50J98070 – Shift roller screws
