Spare part Shimano XTR HB-M9010 and HB-M9010-B

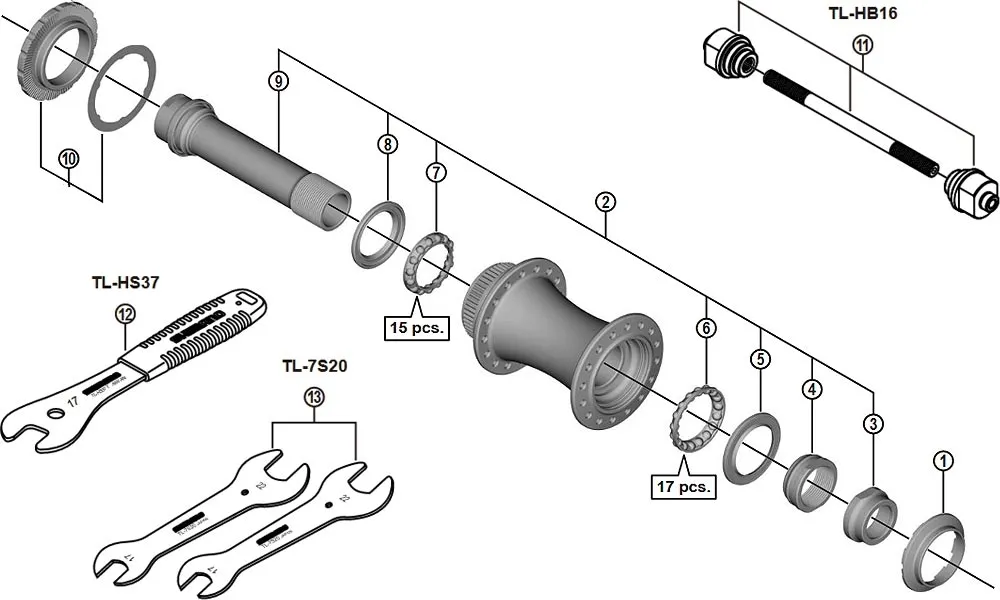

Included in delivery No. 1 of the exploded view.

With the exception of the axles, the spare parts for the Shimano XTR HB-MT9010 and HB-MT9010-B, Boost, front wheel hubs are identical. With Boost or non-Boost axles, hubs cannot be converted to the other mounting standard, as the hub bodies are of different widths.

Shimano XTR HB-M9010 / HB-M9010-B Disc front hub spare parts:

• No. 1: Y27X17000 – Right-hand dust cap
• No. 2: Y4FZ98010 – Complete hollow axle for HB-M9010
• No. 2: Y39G98010 – Complete Boost thru-axle for HB-M9010-B
• No. 3: Y27X19100 - Axle nut, right
• No. 4: Y27X11000 - Conical nut, right
• No. 5: Y27X15000 - Sealing ring, right
• No. 6: Y27X98030 - Right-hand ball bearing 5/32" 17 balls, complete
• No. 7: Y27X98040 - Left-hand ball bearing 5/32" 15 balls, complete – sold out
• No. 8: Y27X14000 - Sealing ring, left (sold out)
• No. 9: Y4FZ98020 - Hollow axle for HB-M9010
• No. 9: Y39G98020 - Boost hollow axle for HB-M9010-B
• No. 10: Y29F98010 - Centerlock locking ring + washer - sold out
• No. 11: Y20W98020 - TL-HB16 centring aid
• No. 12: Y23098030 - TL-HS37 cone wrench 17mm 1 piece
• No. 13: Y13098900 - TL-7S20 cone wrench 17mm/22mm, 2 pieces
