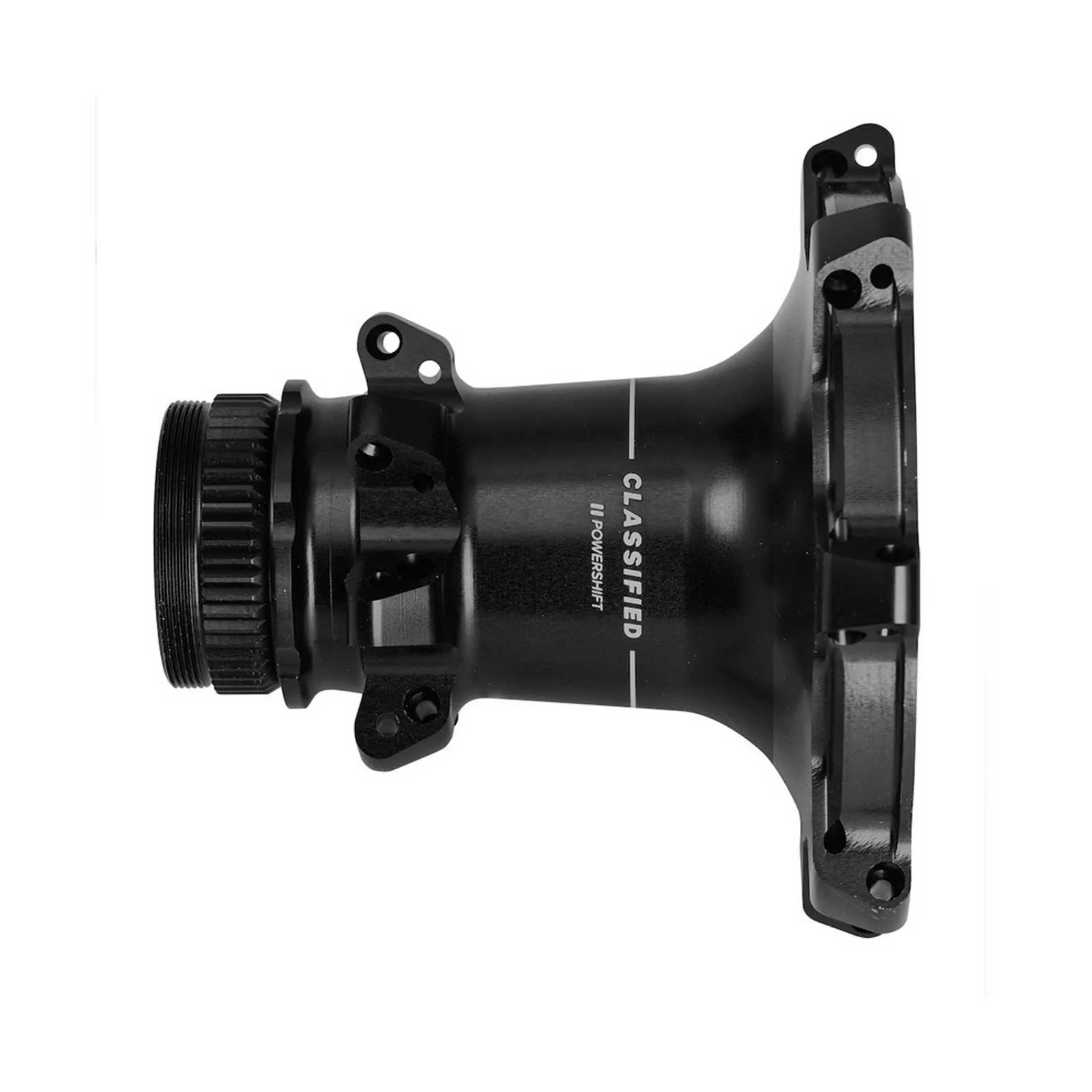

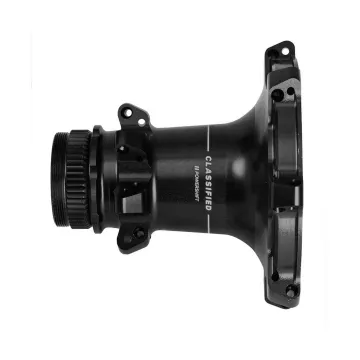

Classified Powershift MTB Hub Body

The MTB hub body for the 12x148mm Boost mounting standard for the Classified Powershift drivetrain

The hub body connects the Powershift hub gear to the wheel. A retaining ring, available separately, secures the gear hub within the hub body. This design enables easy installation and also allows the same gear hub to be used in different rear wheels.

Included in delivery:

• Powershift hub body

Classified Powershift hub body Dimensions and technical specifications:

• Application: MTB
• Mounting width: 12x148mm thru-axle
• 28-hole
• For straight-pull spokes
• For disc brakes, Centerlock brake disc mount
• Weight: 110 grams, manufacturer’s specification

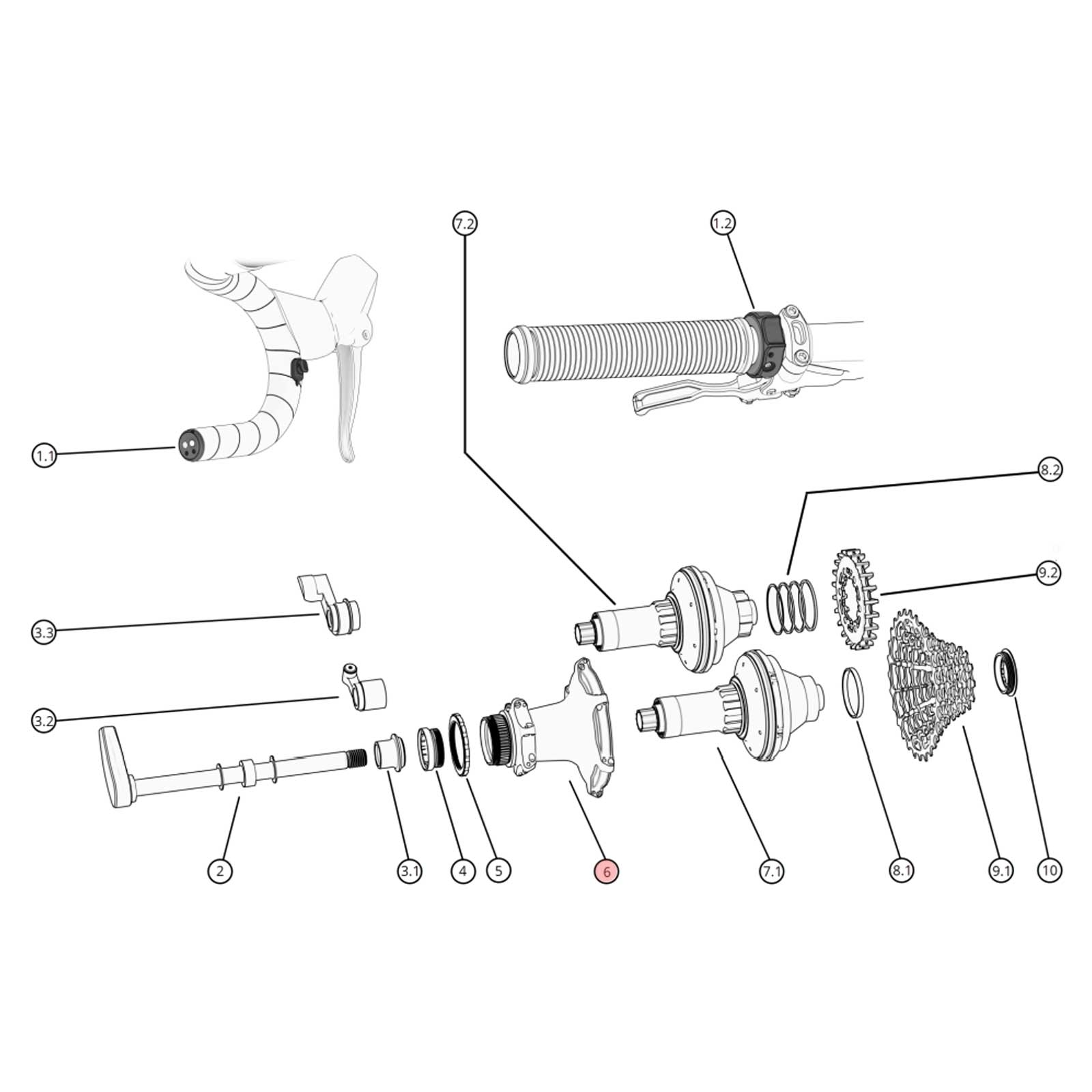

What components are required?

The hub gear is the heart of the Powershift system. The following components are required for installation:

• Classified hub gear
• Classified hub body with lock ring
• Classified Smart Thru Axle
• Classified torque arm
• Classified cassette
• Classified Ring Shifter or Classified Control Unit with switches
• Possibly spacers for torque arm and thru-axle

Your choice of wheel with Powershift hub:

Ask us for a personalised quote. We will lace your chosen wheel, perfectly centred by hand. Select your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Classified Cycling, Damplein 23, 2018 Antwerp, Belgium, https://www.classified-cycling.cc/
