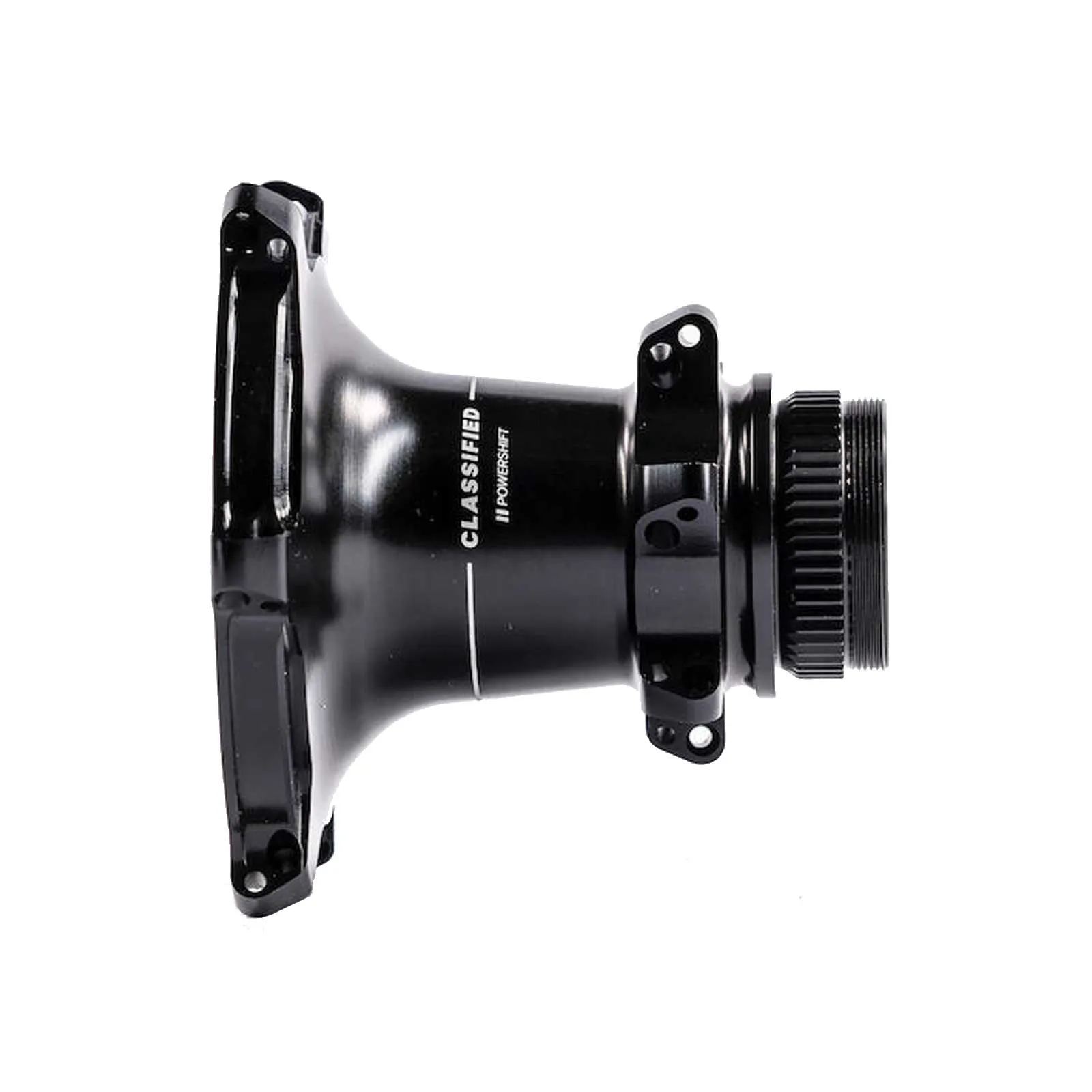

Classified Powershift Hub Body Road/Gravel

The road and gravel straight-pull hub shell for the 12x142mm mounting dimension for the Classified Powershift drivetrain

The hub body connects the Powershift hub gear system to the wheel. A separately available locking ring secures the gear system within the hub body. This design enables easy installation and also allows the same gear hub to be used in different rear wheels.

Included:

• Powershift hub body

Classified Powershift hub body Dimensions and technical specifications:

• Application: Road, Gravel
• Mounting width: 12x142mm thru-axle
• 24-hole
• For straight-pull spokes
• For disc brakes, Centerlock brake disc mount
• Weight: 100 grams, manufacturer’s specification

What components are required?

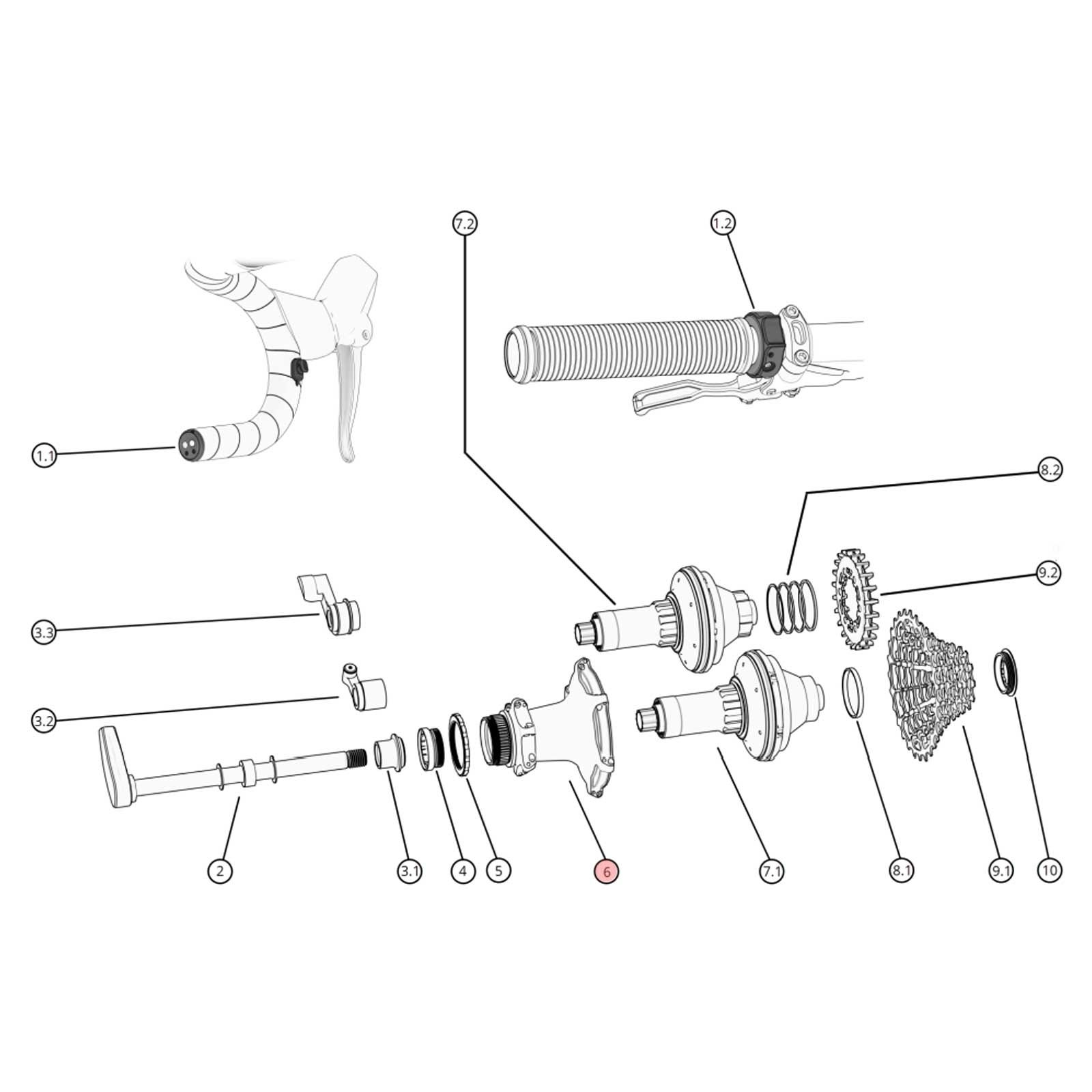

The hub gear is the heart of the Powershift system. The following components are required for assembly:

• Classified hub gear
• Classified hub body with lockring
• Classified Smart Thru Axle
• Classified torque arm
• Classified cassette
• Classified Ring Shifter or Classified Control Unit with switches
• Possibly spacers for torque arm and thru-axle

Your choice of wheel with Powershift hub:

Ask us for a personalised quote. We will lace your chosen wheel, perfectly centred by hand. Select your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Classified Cycling, Damplein 23, 2018 Antwerp, Belgium, https://www.classified-cycling.cc/
