EXP Freewheel Body DT Swiss MTB

The hybrid steel freehub bodies are used in DT Swiss e-bike wheels and hubs, but can of course also be used with all other wheels and hubs.

For converting DT Swiss 240 EXP MTB hubs, equipped with the Ratchet EXP system, to the Shimano HG10 system for Shimano HG 8-12-speed and Sram PG 8-11-speed MTB cassettes.

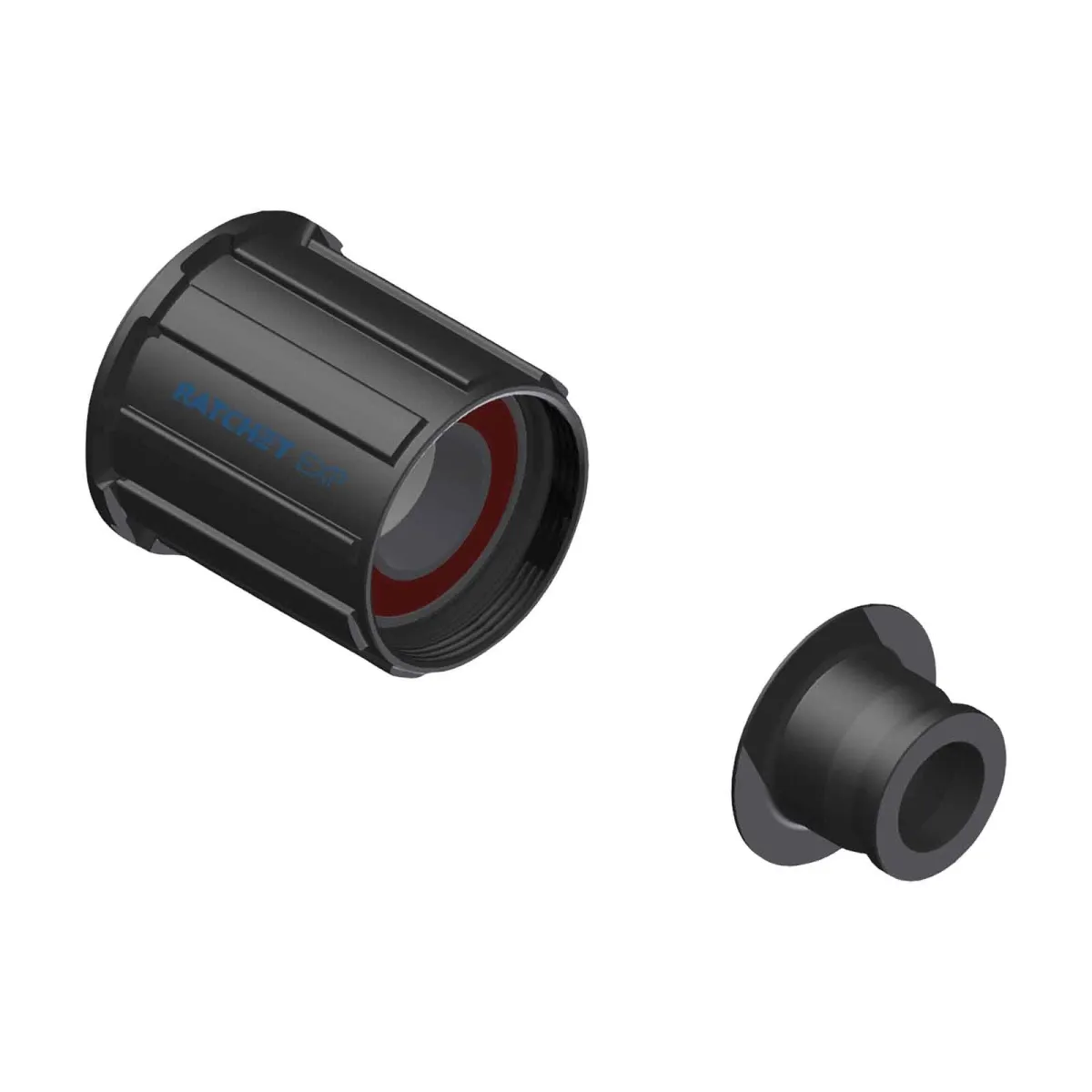

• The kit includes the freehub body and the right-hand frame stop for 12x142mm, 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the different mounting dimensions are the same; the hub widths differ.
• The Ratchet EXP freehub bodies are only compatible with DT Swiss 240 EXP, 240 EXP OS and 180 EXP hubs and rear wheels fitted with these hubs.
• DT Swiss manufactures separate right-hand end caps for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end stops from older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet Star or Ratchet DEG hubs.
Not suitable for converting the hubs to a different installation dimension.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
