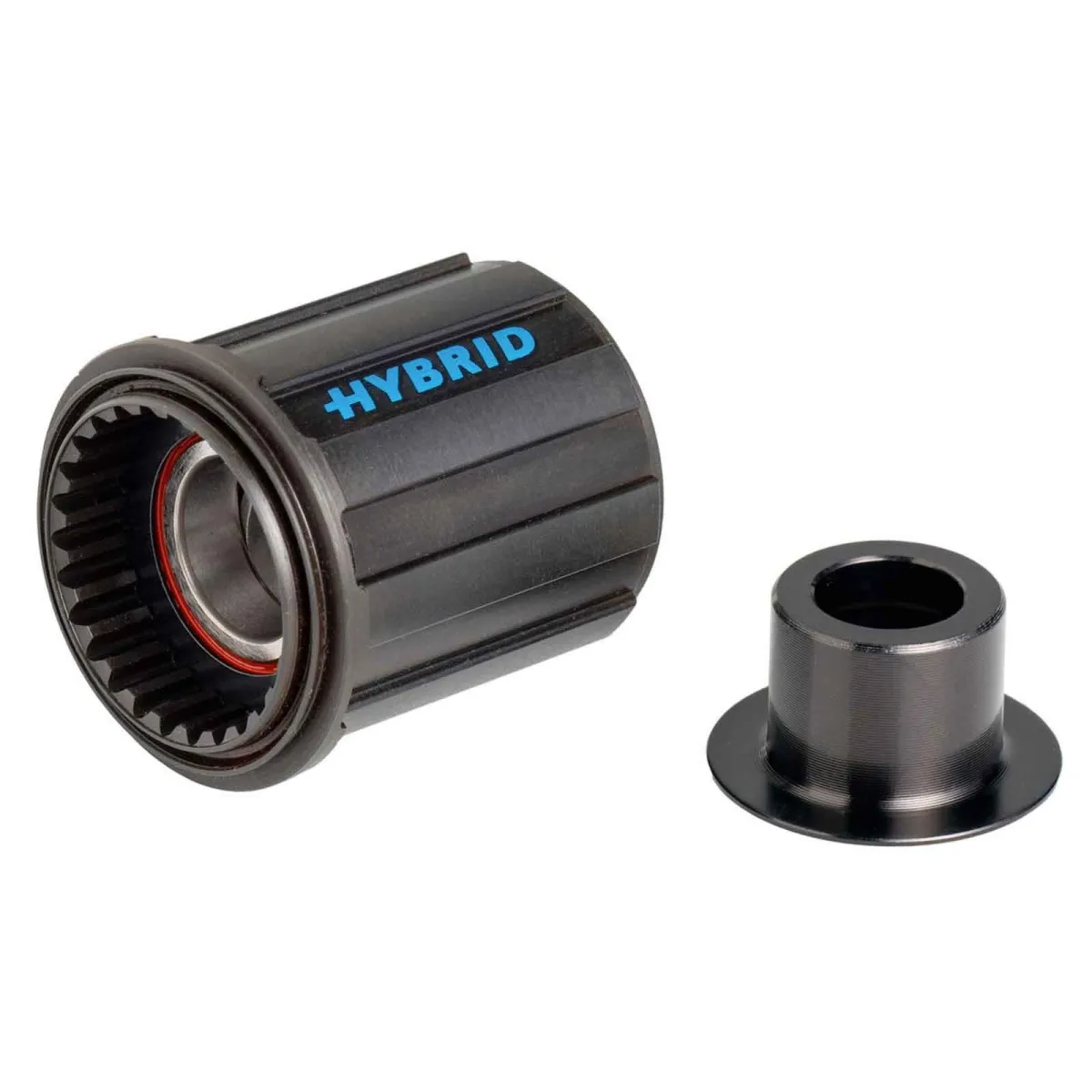

DT Swiss MTB Freewheel Body

The hybrid steel freehub bodies are used on DT Swiss e-bike wheels and hubs, but can of course also be used on all other wheels and hubs.

For converting DT Swiss 350 and 240S MTB hubs, with the Ratchet System, to the Shimano HG10 system for Shimano HG 8-12-speed and Sram PG 8-11-speed MTB cassettes.

• The kit includes the freehub body and the right-hand frame stop for 12x142mm, 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the different mounting dimensions are the same; the hub widths differ.
• The Ratchet Star freehub bodies are only compatible with DT Swiss 350 hubs, the older DT Swiss 240S hubs and rear wheels fitted with these hubs.
• DT Swiss manufactures separate right-hand end caps for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end caps for older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet EXP, Ratchet DEG hubs.
Not suitable for converting the hubs to a different installation dimension.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
