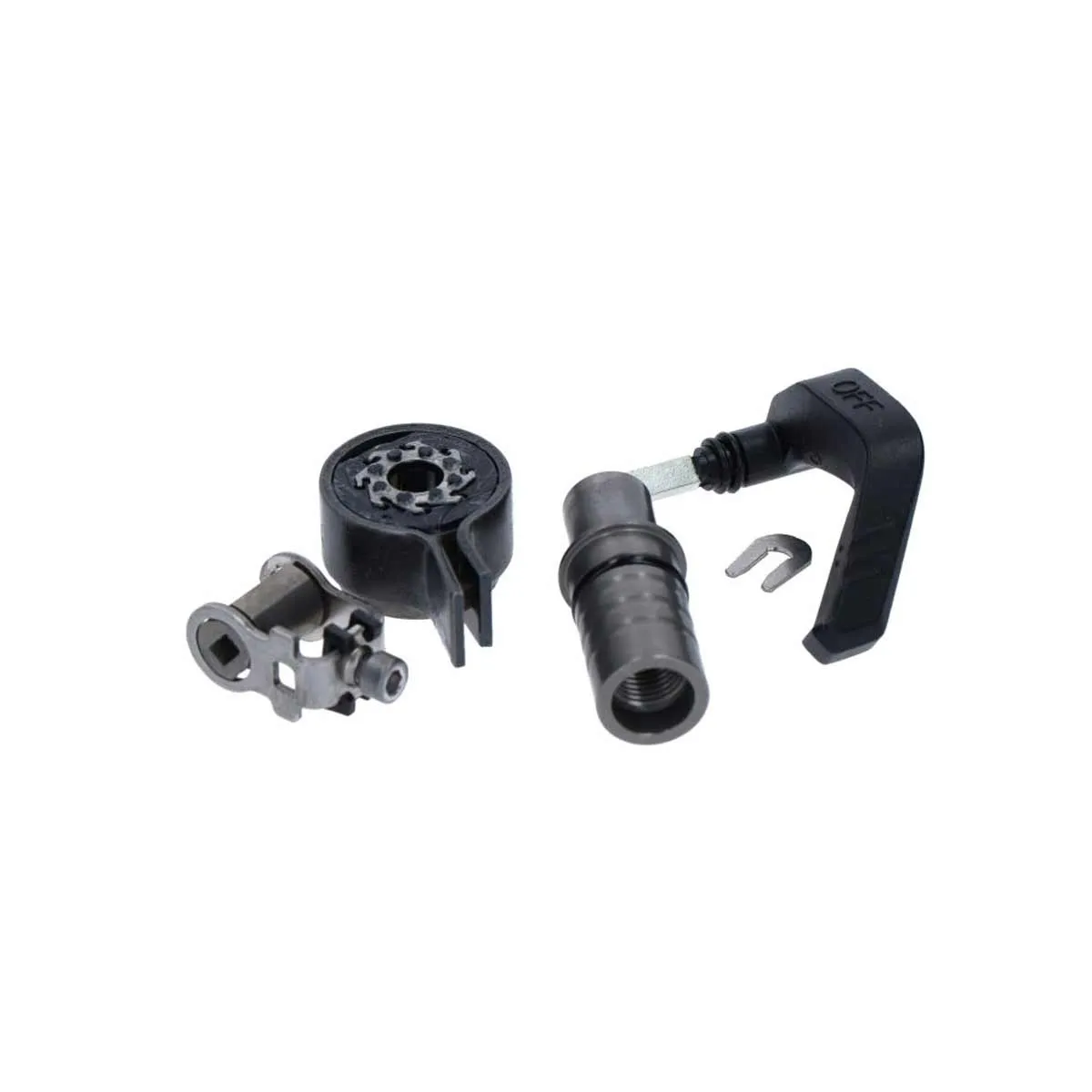

Shimano Deore RD-M8100 RD-M9100 rear derailleur spare part

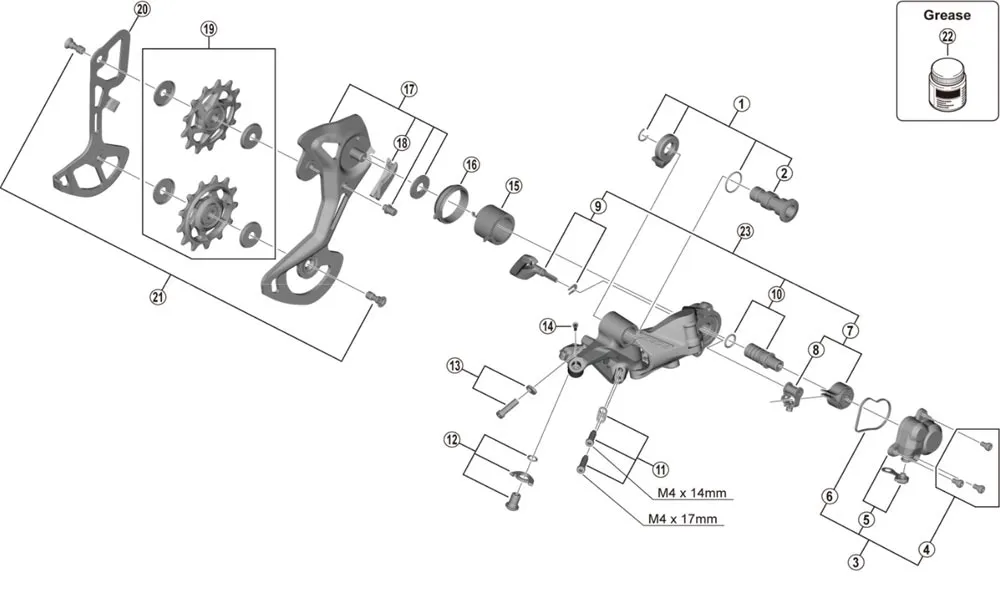

Included in parts 22 and 23 of the exploded view.

Shimano Deore XT RD-M8100 rear derailleur spare parts:

• No. 1: Y3FW98020 – Rear derailleur hanger axle unit
• No. 2: Y3FW42000 – Rear derailleur bracket axle
• No. 3: Y3FW98030 – Housing unit
• No. 4: Y5Y198070 – Housing cover screws
• No. 5: Y3FW98040 - Housing cover + cap
• No. 6: Y3FA63000 - Seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y3FA98040 - Gear lever assembly
• No. 10: Y5PV98060 - Shift shaft assembly
• No. 11: Y3FW98050 - Stop screws + plate
• No. 12: Y3FW98060 – Shift cable clamping screw + plate
• No. 13: Y3FW98070 – Adjustment screw for tension spring + plate
• No. 14: Y3FA55000 - Tension spring
• No. 15: Y3FA62000 – Sealing ring
• No. 16: Y3FW98100 – GS outer chain guide plate, complete
• No. 16: Y3FW98080 – SGS outer chain guide plate, complete
• No. 17: Y3FW50000 - GS/SGS impact guard
• No. 18: Y3FW98010 – Set of switch rollers
• No. 19: Y3FW16000 – GS inner chain guide plate
• No. 19: Y3FW26000 - SGS inner chain guide plate
• No. 20: Y3FW9809 - Shift roller screws
• No. 21: Y04121000 – Special grease for stabiliser
• No. 22: Y3FA98100 – Stabiliser kit unit

Included in the scope of delivery No. 23 of the exploded view.

Shimano XTR RD-M9100 rear derailleur spare parts:

• No. 1: Y3FA98010 - Axle unit for rear derailleur hanger
• No. 2: Y3FA42000 – Axle for rear derailleur hanger
• No. 3: Y3FA98020 – Housing cover, complete
• No. 4: Y5Y198070 – Screws for housing cover
• No. 5: Y3FA98030 - Housing cover + cap
• No. 6: Y3FA63000 - Sealing ring for housing cover
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y3FA98040 – Gear lever unit
• No. 10: Y5PV98060 - Shift shaft unit
• No. 11: Y3FA98050 – Stop screws, complete
• No. 12: Y3FA98060 – Shift cable clamp screw, complete
• No. 13: Y5PV98070 – Adjustment screw, complete, for tension spring
• No. 14: Y5PV48000 - Tab for shift cable clamp screw
• No. 15: Y3FA55000 - Tension spring
• No. 16: Y3FA62000 - Sealing ring for tension spring
• No. 17: Y3FA98070 - GS outer chain guide plate, complete
• No. 17: Y3FA98080 - SGS outer chain guide plate, complete
• No. 18: Y3FA59000 - Impact protection for GS/SGS outer chain guide plate
• No. 19: Y3FA98090 - Set of shift rollers
• No. 20: Y3FA16000 - GS inner chain guide plate
• No. 20: Y3FA26000 - SGS inner chain guide plate
• No. 21: Y5XX98130 - Shift roller screws
• No. 22: Y0412080A - Special grease for stabiliser
• No. 23: Y3FA98100 - Stabiliser kit unit
