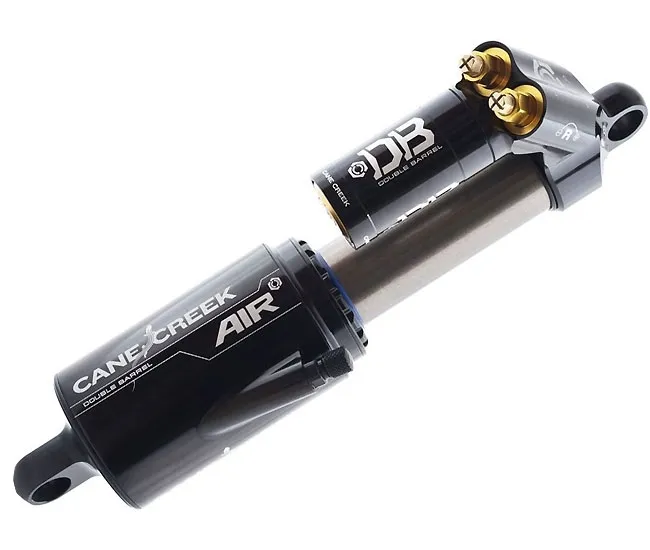

Cane Creek Double Barrel Air Shock
The high-end shock absorber with an extremely wide adjustment range, external high- and low-speed rebound and compression adjustment. The enduro shock absorber for maximum performance. The Cane Creek Double Barrel Air shock features a unique design in which the oil flows through externally adjustable valves. This allows the shock to be precisely tailored to personal preferences. The self-adjusting negative air spring ensures maximum bottom-out protection.
Handcrafted in the USA and developed in collaboration with Öhlins, the Double Barrel shock is manufactured with extreme precision and designed for maximum performance and reliability. To perfectly adapt the shock to the respective frame, volume spacers can be used to reduce the air volume, thereby making the shock more progressive.
Cane Creek Twin Tube Technology
Twin Tube Technology ensures that, unlike in conventional dampers where oil flows solely through the main piston, it flows through the valves responsible for the respective damping. This results in superior, reproducible adjustability.
Cane Creek HSC
The High-Speed Compression (HSC) stage serves to absorb the energy from heavy impacts, such as large ledges or hard landings.
Cane Creek HSR
A unique adjustment parameter on the Double Barrel is the High-Speed Rebound, which regulates the rebound speed when the suspension is fully compressed and enables controlled take-offs from jump edges.
Cane Creek LSC
The Low-Speed Compression (LSC) stage regulates traction and suspension stability. The LSC setting suppresses unwanted bobbing whilst pedalling, influences the response to bumps and small dips, and affects how the bike reacts to changes in weight.
Cane Creek LSR
Like the Low-Speed Compression, the Low-Speed Rebound contributes to traction and suspension stability. The Low-Speed Rebound ensures maximum traction on technical climbs, bumpy trails, berms and braking bumps.
Cane Creek Double Barrel Air shock absorber technology:
- Application: Trail, All Mountain, Enduro
- Oil damping with Twin Lube technology
- Air suspension
- Adjustment: Air pressure, high and low-speed compression and rebound
- Large air chamber diameter 57 mm
- Weight approx. 500 grams
- Bushings not included
Included: Cane Creek Double Barrel Air shock, without bushings
Two bushing sets are required for installation, top and bottom. These are available separately and are not included
