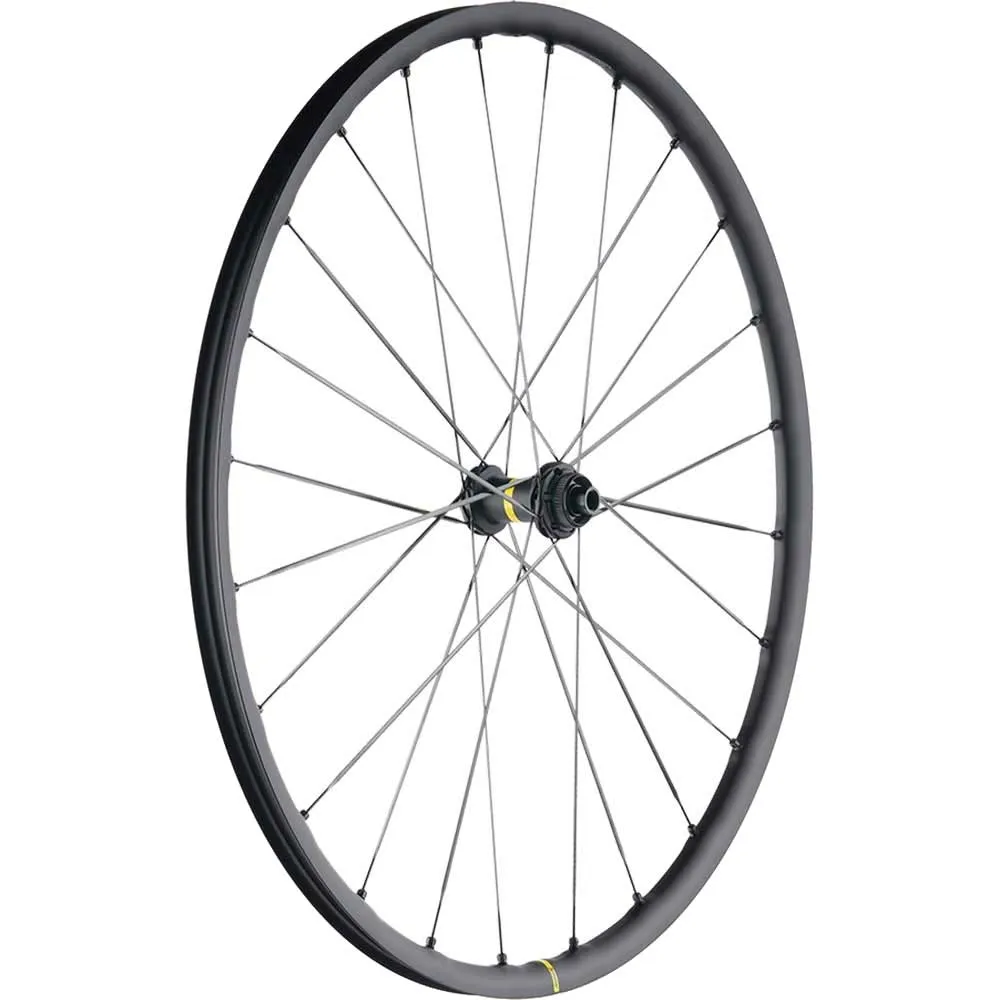

Mavic Allroad SL Road+ UST Wheel
Lightweight aluminium wheels for use on 27.5-inch gravel bikes. With a 25 mm rim width, suitable for tyre widths up to 2.4.
The Mavic Allroad SL UST Disc wheelsets feature new Infinity hubs, the Instant 360 freehub system, and 25 mm wider, 440-gram ISMD4 Disc UST rims. Thanks to their undrilled rim bed, the new UST Force rims are particularly stable despite their low weight.
Of course, the Mavic UST wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.
Mavic Allroad SL Road Plus Disc Wheel 27.5-inch 650B Specifications:
- Intended use: Cross, Gravel, Touring, Road
- 27.5-inch, for folding and clincher tyres, ETRTO 584x25
- 24 straight, aerodynamic stainless steel spokes per wheel
- Double-cross lacing on front and rear wheels
- Rim type: hookless
- Self-locking aluminium M7 spoke nipples
- Maxtal Aluminium Force rim, welded, undrilled
- Asymmetrical rim profile
- Industrial-grade QMR Auto Infinity hubs
- Disc brake mount: Disc Centerlock
- Infinity Disc Road front hub 12x100mm thru-axle or 9x100mm quick-release mount, convertible to 15x100mm via axle conversion
- Recommended tyre widths 30–64 mm
- Maximum recommended rider weight 120 kg
- ASTM Category 2
Mavic Allroad SL Road+ Disc weights
Contents of delivery for the Mavic Allroad SL Road+ Disc wheel:
- Mavic Allroad SL Road+ Disc front wheel, end caps as selected, UST valve

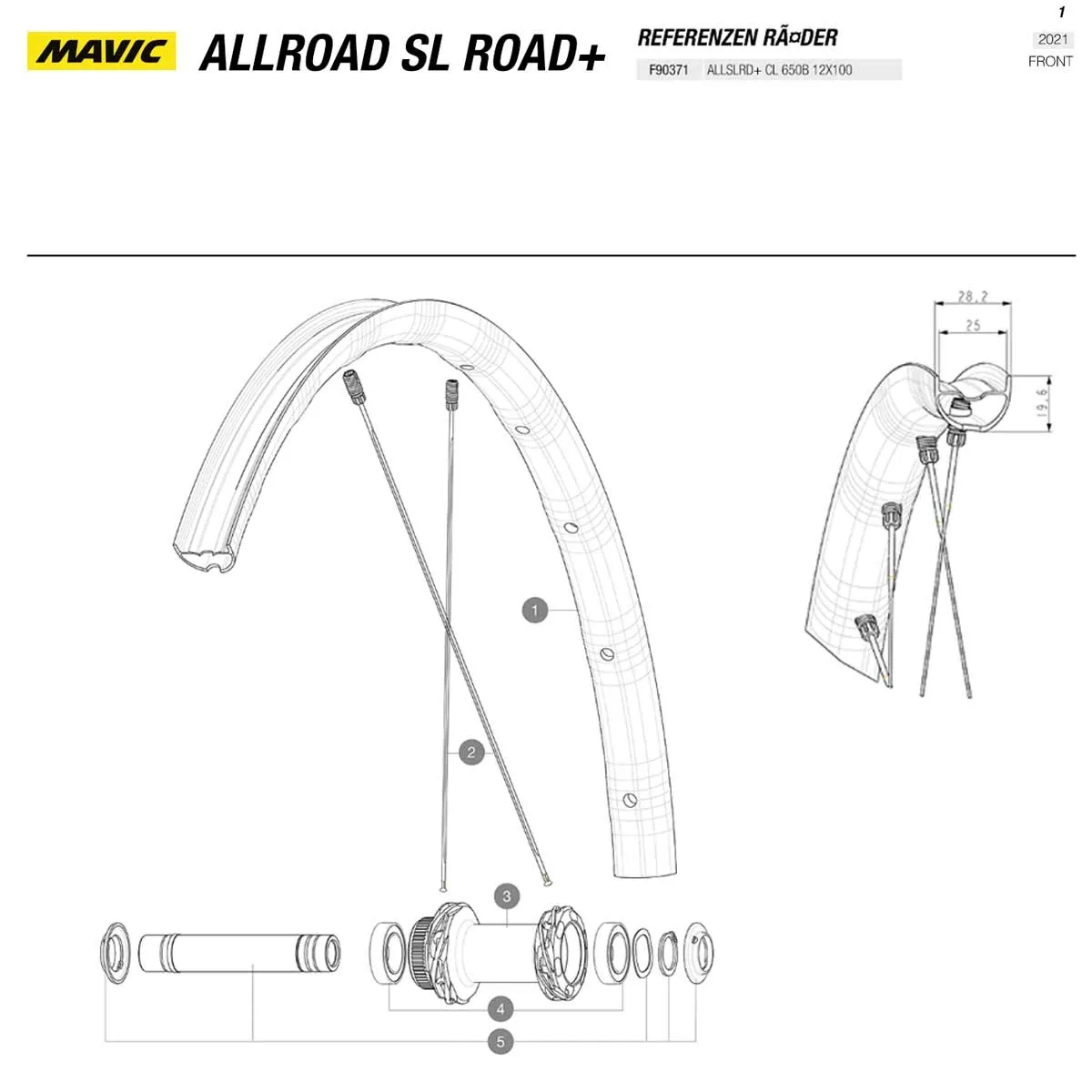

Mavic Allroad SL Road+ Disc UST Force rims 27.5 inches:
The Allroad SL Force rims with a 25 mm rim width are genuine UST rims with a closed rim bed. The spoke hole is drilled only into the rim base, making the rim significantly more resistant to fatigue and approximately 20 per cent stiffer. A tubeless rim tape is not required. The Maxtal aluminium alloy, manufactured exclusively for Mavic, is 30 per cent stronger than 6106 aluminium. This allows Maxtal rims to be super-light yet still sturdy. Mavic’s ISM4 weight-optimisation saves every gram on the rims for reduced inertia; the rims weigh just 440 grams. Naturally with a welded rim joint

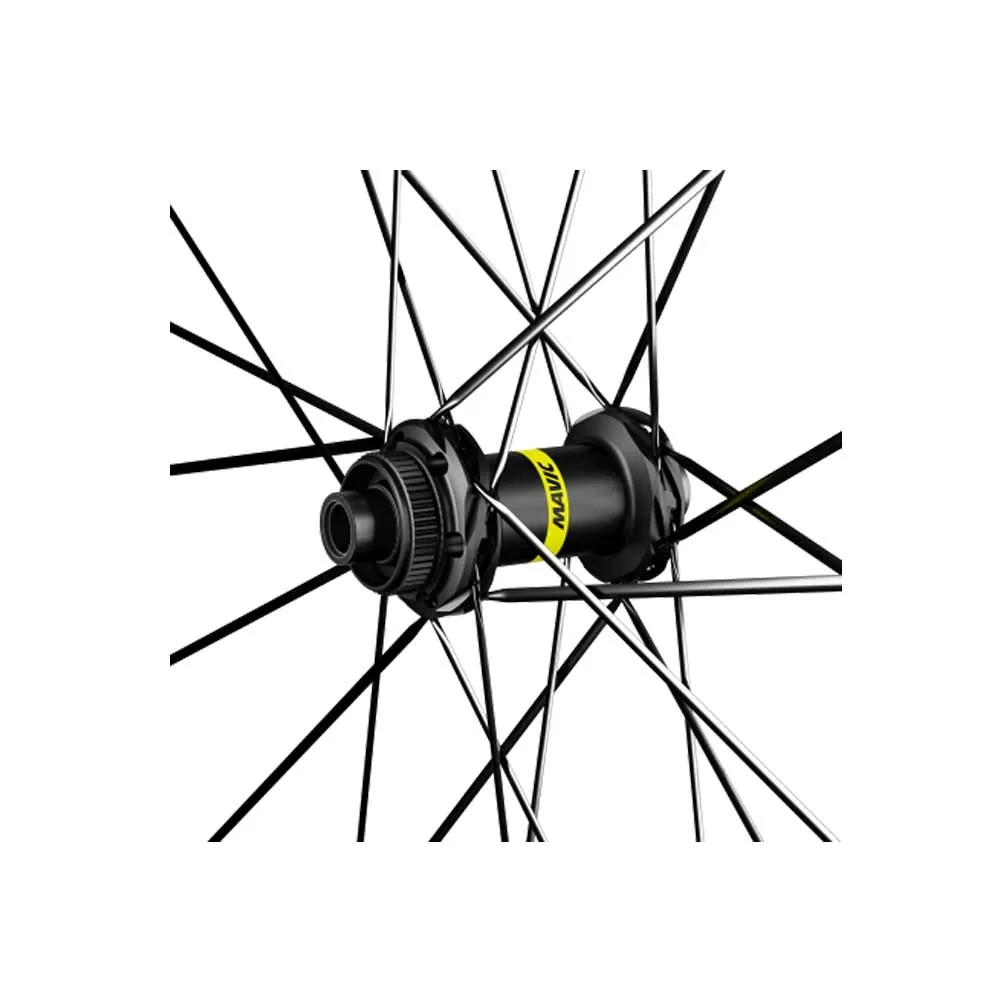

Mavic Infinity Disc hubs:
The completely newly developed Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The proven Mavic QRM auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket freehub body, the ORM auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.
Mavic Infinity Disc Hub Compatibility:
The oversized aluminium axles allow for easy conversion to all standard axle systems. The Infinity front hub is compatible with QR9x100mm quick-release and QR12x100mm or 15x100mm thru-axle mounts; the Infinity rear hub is compatible with 10x135mm quick-release mounts and 12x142mm and 12x135mm thru-axles.
Mavic Instant Drive 360 Freehub Body
The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG11 version for Shimano and SRAM 8–11-speed, SRAM XDR 12-speed road bike and Campagnolo 9–12-speed ED cassettes. A rubber damper is fitted as standard, which can be removed. For those who prefer a slightly more distinctive sound.
Mavic Aero Spokes:
The patented elliptical spoke shape significantly improves aerodynamics, featuring the tried-and-tested double-butted Aero spokes. Highly strong and resilient, the durability of Mavic stainless steel spokes is exceptionally high.
Mavic Tubeless System:
The new rim bed facilitates tubeless tyre fitting. The pronounced and wider grooves in the rim bed make tubeless fitting significantly easier. Mavic is thus setting the standard for easy tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and reduced risk of punctures – to come into their own.

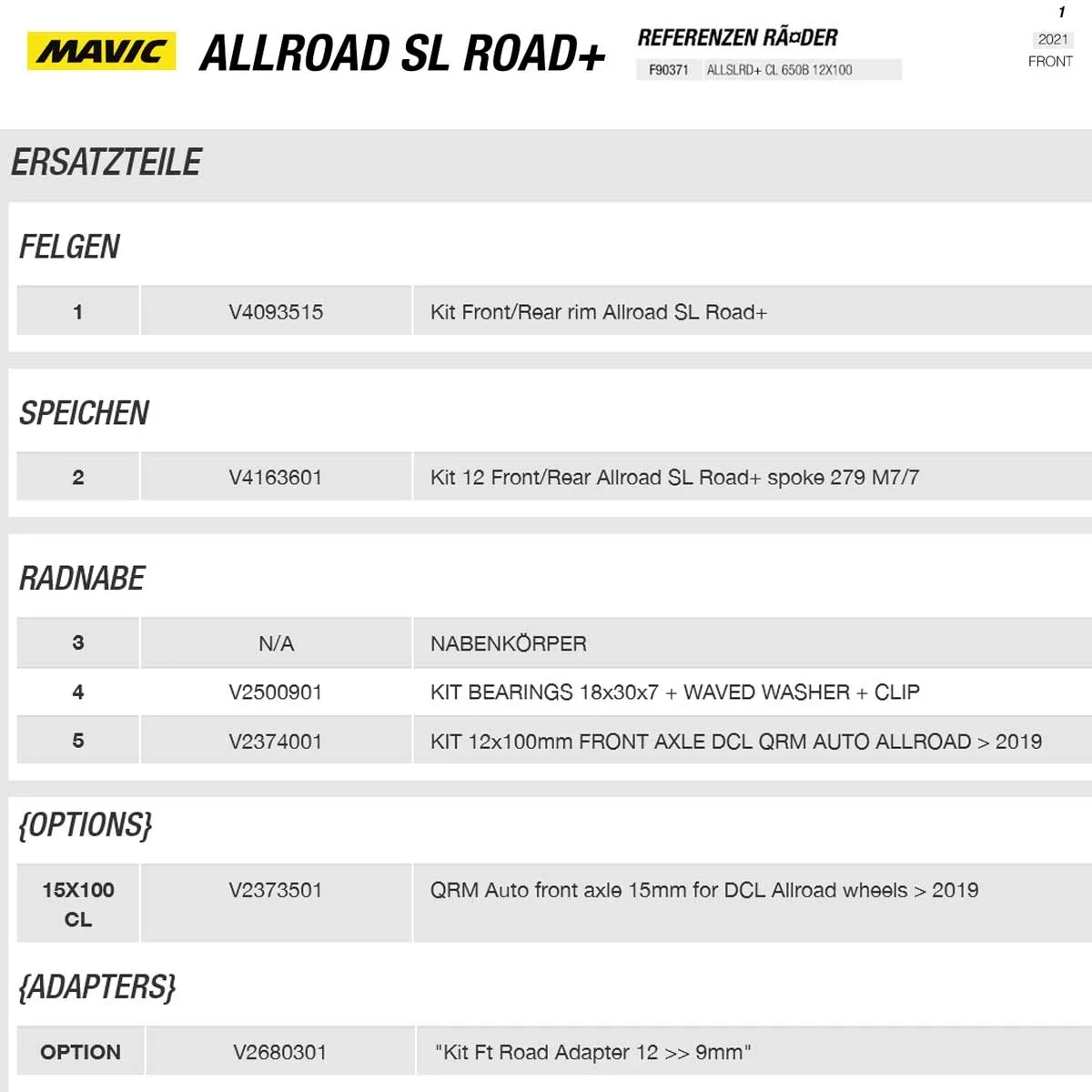

Compatible end stops, front wheel:
- Quick-release mounting, mounting dimension 9x100 mm, adapter part no.: V2680301
- Thru-axle fitting, mounting dimension 12x100 mm, adapter part no.: V2680501
- Thru-axle mounting, mounting dimension 15x100 mm, replacement axle item no. V2373501 plus adapter item no.:V2372501
Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
