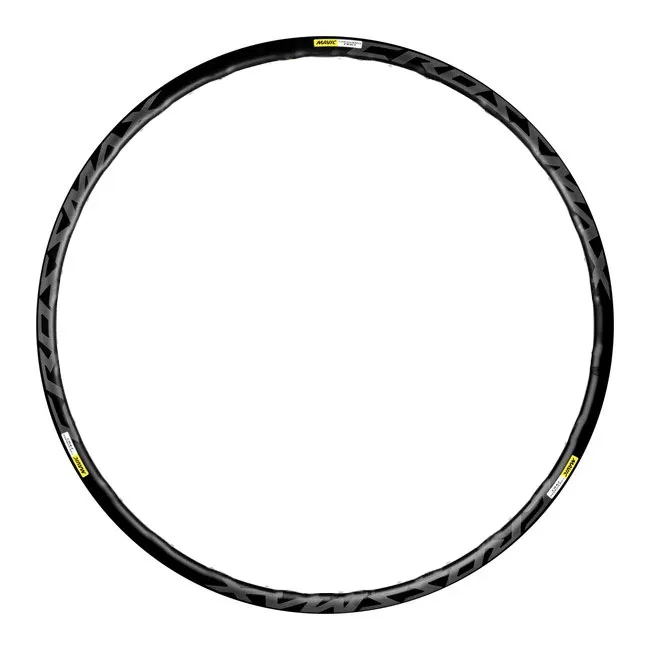

Mavic Crossmax Pro Replacement Rim

The Mavic replacement rim for the Crossmax Pro and Pro Boost 29-inch front wheel

The rims and spokes of the Mavic Crossmax Pro wheels are compatible with both standard and Boost wheels

Mavic Crossmax Pro rim dimensions:

• Height 20.9 mm
• Width 25 mm
• Spoke depth 22 mm

Spare parts for the 2017 model Mavic Crossmax Pro 29-inch front wheel:

• Item No: V2316210, Mavic Crossmax Pro front wheel rim
• Item No: V2384801, Crossmax Pro Zircal spokes, front wheel 293 mm
• Item No: 99688501, Hub bearing Type 6804, dimensions 20x32x7 mm
• Item No: V2252301, Hub axle including fasteners
• Item No: B4104401, End stops for 15x100 mm thru-axle assembly
• Item No: B4104301, End stops for 9x100 mm quick-release assembly

Spare parts for Mavic Crossmax Pro 29-inch rear wheel, 2017 model:

• Item No: V2316313, Mavic Crossmax Pro rear wheel rim
• Item No: V2384801, Crossmax Pro Zircal spoke, left disc side 293 mm
• Item No: 35113801, Crossmax Pro Zircal spoke, right-hand freehub side 269.5 mm
• Item No: 30870401, Hub axle including fasteners
• Item No: M40076, ITS4 rear wheel bearing, dimensions 17x30x7 mm
• Item No: 99610701, Seal for ITS4 freehub body
• Item No: 99610601, ITS4 pawls with springs, 4 pcs
• Item No: 35126001, ITS4 freehub body HG10
• Item No: 35684101, ITS4 freehub body Sram XD with left-hand end stop
• Item No: 30873101, HG end stops ITS4 hub 10x135 mm for quick-release mounting
• Item No: 30870401, HG end stops ITS4 hub 12x135 mm for thru-axle mounting
• Item No: 30859301, HG end stops ITS4 hub 12x142 mm for thru-axle mounting
• Item No: 36929301, XD end stops ITS4 hub 12x135 mm for thru-axle mounting
• Item No: 36929501, XD end stops ITS4 hub X12x142 mm for thru-axle mounting

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
