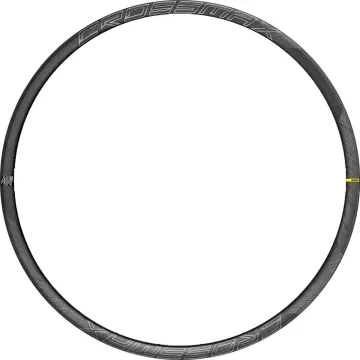

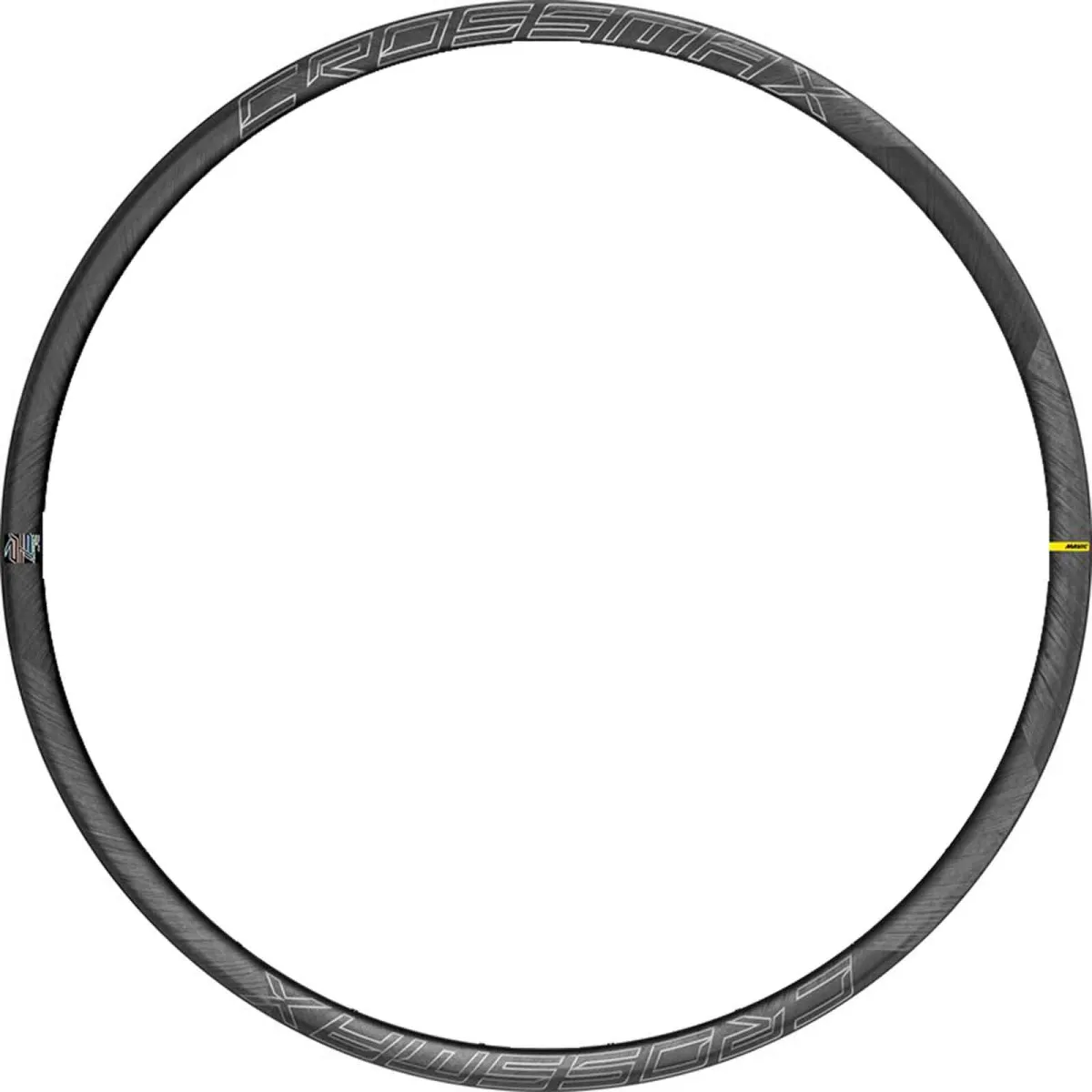

Mavic Crossmax SLR Replacement Rim

The replacement rim for the Mavic Crossmax SLR and Carbon 29-inch, front and rear wheels, 2022 model

Original Mavic spare part designation: Kit Front/Rear rim Crossmax SLR 29'' 22

These rims have a standard spoke pattern and spoke holes and are also compatible with conventional spokes and spoke nipples.

We repair Mavic wheelsets. If you provide us with the serial number and details of the damage to your wheelset, we can check whether it is repairable.

The compatibility of spare parts can be checked using your wheel’s serial number. You will usually find this on a small sticker on the rim edge near the barcode.

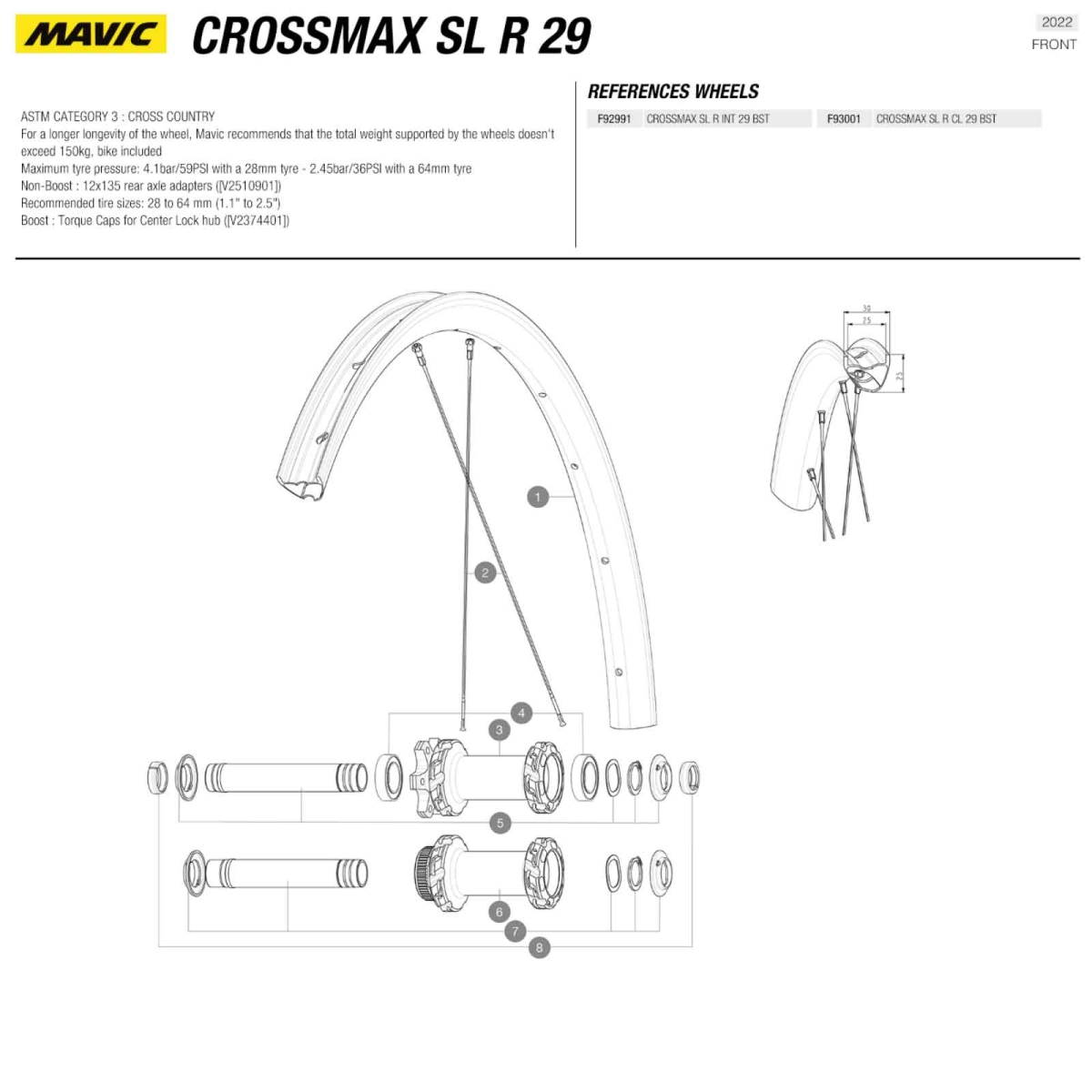

Mavic Crossmax Carbon SLR front wheel, part no. F9299110 / F9300115, spare parts:

• Replacement rim front/rear 24-hole, height 25 mm, width 30 mm, rim width 25 mm, Item No.: V00004731, Kit Front/Rear rim Crossmax SLR 29'' 22
• Replacement spokes Aero 293 mm with nipples and washers, Item No: V00065231, Ft/Rr MTBcarb29 ss spk293
• Hub bearings 18x30x7mm Type 608, Item No: V2500901, KIT BEARINGS 18x30x7 + WAVED WASHER + CLIP
• QRM Auto Disc 6-hole hub axle, Item No:V2375601, KIT 110mm AXLE QRM AUTO MTB > 2019
• Hub axle QRM Auto Disc Centerlock Item No.:V2375601, Kit 110mm axle QRM auto MTB from 2019 DCL
• Torque Caps Boost 15/31x110 mm Thru-Axle Item No.: V2374401, TORQUE CAPS 15*31 Adapter MTB QRM Auto > 2019 Front Hub
• Axle End Stops Boost 15x110 mm Thru-Axle Item No.: V2372501, 15mm MTB Axle Cap QRM Auto From 2019
• Axle end caps Boost 9x110 mm quick release Part No: 99694101, 2 REDUCERS 15/9mm

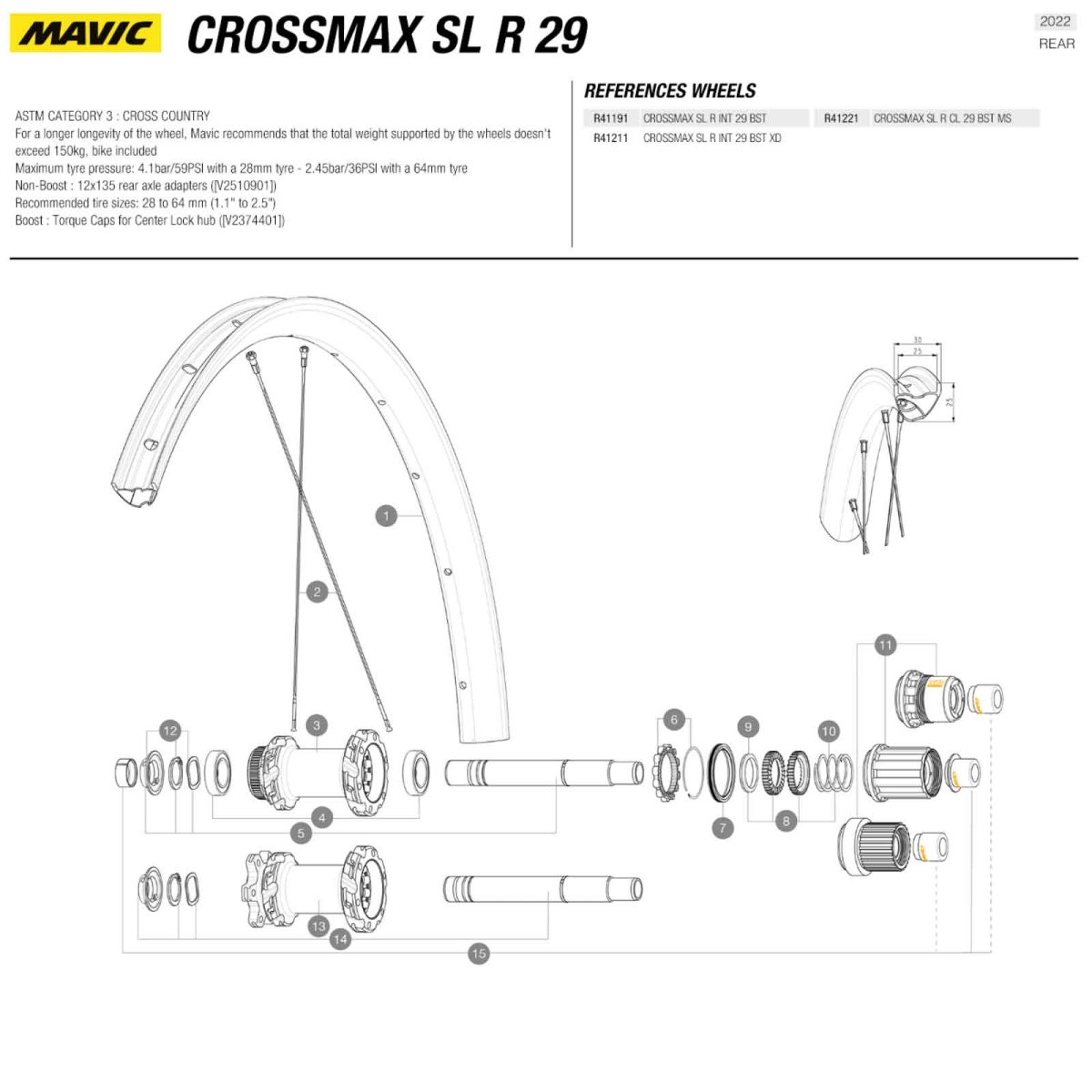

Mavic Crossmax Carbon SLR Rear Wheel Item No. R4121110 / R4121115, Spare Parts:

• Replacement rim front/rear 24-hole, height 25 mm, width 30 mm, rim width 25 mm, Item No: V00004731, Kit Front/Rear rim Crossmax SLR 29'' 22
• Replacement spokes Aero 293 mm with nipples and washers, Item No.: V00065231, Ft/Rr MTBcarb29 ss spk293
• Hub bearings type 6903 / 17x30x7 mm, Part No: M40076, HUB BEARINGS 17x30x7 6903 x 2
• Rear wheel axle kit Boost 148 for ID360 Disc Centerlock with circlip and cover, Item No: V2375701, Kit ID360 148 DCL axle with circlip
• Rear wheel axle kit Boost 148 for ID360 Disc 6-hole with circlip and cover Item No: V2372201, KIT ID360 148 D6T AXLE WITH CLIP
• Sprocket retainer with circlip Part No: V2252701, KIT ID360 INSERT SHAPED EAR LOBE > 2017
• Freewheel body seal Part No: V00063631, Kit ID360 seal version 2 (larger)
• Ratchet disc kit 40 teeth with spring Part No: V2372801, KIT ID360 2x40 TEETH RATCHETS + MTB SPRING + GREASE + PAD
• 24-tooth sprocket kit with spring Part No: V2375201, KIT ID360 24 TEETH 2 RATCHET + MTB SPRING + PAD (specific)
• Noise-reducing rubber, Item No.: V2375401, ID360 MTB 24T NOISE REDUCING PAD
• MTB spring for sprockets Part No: V2372901, KIT 3 ID360 MTB SPRINGS
• Bearing cover with shaft washer and circlip Part No: V2373001 KIT ADJUST. SYSTEM QRM AUTO ID360 for 17x30x7 bearing
• Axle end stops Boost 10x142/148/157mm thru-axle assembly Part No: V2510701, ID360 EVO REAR AXLE ADAPTERS 12x142mm DCL & D6T
• Boost 10x141mm quick-release axle end stops, Part No: V2510801, ID360 EVO REAR AXLE ADAPTERS 9x135mm DCL & D6

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
