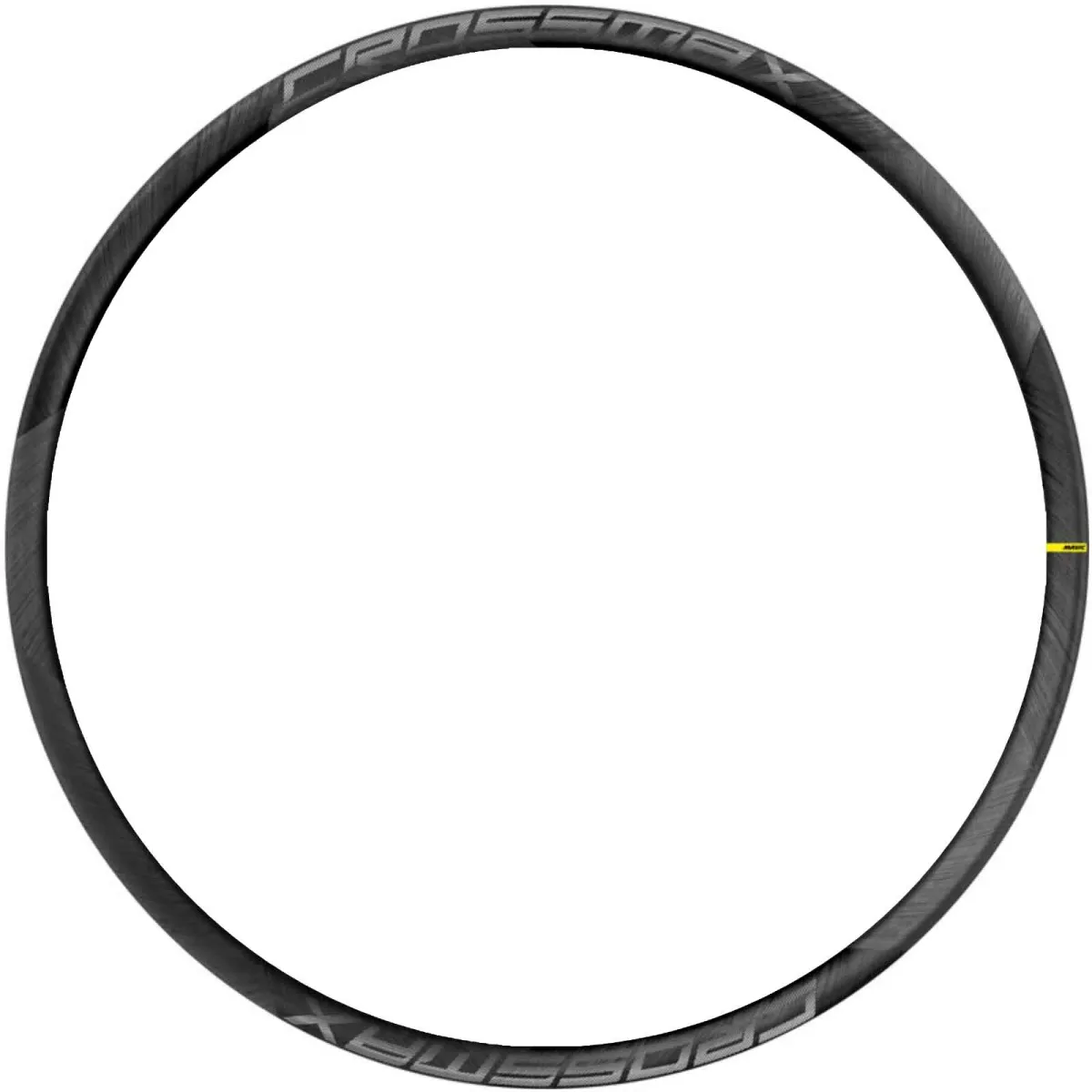

Mavic Crossmax XLR Replacement Rim

The replacement rim for the Mavic Crossmax XLR Carbon 29-inch, front and rear wheels, 2022 model

Original Mavic spare part designation: Kit Front/Rear rim Crossmax XLR 29'' 22

These rims have a standard spoke pattern and spoke holes and are also compatible with conventional spokes and spoke nipples.

We repair Mavic wheelsets. If you provide us with the serial number and details of the damage to your wheelset, we can check whether it is repairable.

The compatibility of spare parts can be checked using your wheel’s serial number. You will usually find this on a small sticker on the rim edge near the barcode.

Mavic Crossmax Carbon XLR front wheel Part No. F9297110 / F9298115, spare parts:

1. Item No: V00004931, XL R Carbon replacement rim front/rear 24-hole, height 25 mm, width 35 mm, rim width 30 mm, kit front/rear rim Crossmax XLR 29''
2. Item No: V00065231 Replacement spokes Aero 293 mm with M6 nipples and washers Front/Rear MTBcarb29 ss spk293
3. Hub body not available as a spare part
4. Item No: V2500901, Hub bearings 18x30x7mm Type 608, KIT BEARINGS 18x30x7 + WAVED WASHER + CLIP
5. Item No: V237560,1 QRM Auto Disc 6-hole hub axle, KIT 110mm AXLE QRM AUTO MTB > 2019
6. Hub body not available as a spare part
7. Item No: V2375601, QRM Auto Disc Centre Lock Kit 110mm axle QRM auto MTB from 2019 DCL
8. Axle end caps Boost 15x110 mm thru-axle Item No.: V2372501, 15mm MTB Axle Cap QRM Auto From 2019

• Item No: 99694101, Axle end caps Boost 9x110 mm quick release 2 REDUCERS 15/9mm
• Item No: V2374401, Torque Caps Boost 15/31x110 mm thru-axle, TORQUE CAPS 15*31 adapter MTB QRM Road > 2019 Front Hub

Mavic Crossmax Carbon XLR Rear Wheel Item No. R4116110 / R4117110 / R4118115, Spare parts:

1. Item No: V00004931, XL R Carbon Replacement Rim Front/Rear 24-hole, Height 25 mm, Width 35 mm, Rim Width 30 mm, Kit Front/Rear Rim Crossmax XLR 29''
2. Item No: V00065231 Replacement spokes Aero 293 mm with M6 nipples and washers, Front/Rear MTBcarb29 ss spk293
3. Hub body not available as a spare part
4. Item No: M40076, Hub bearings type 6903 / 17x30x7 mm, HUB BEARINGS 17x30x7 6903 x 2
5. Item No: V2375701 Rear wheel axle kit Boost 148 for ID360 Disc Centerlock with circlip and cover, Kit ID360 148 DCL axle with circlip
6. Item No: V2252701, Sprocket retainer with circlip, KIT ID360 INSERT SHAPED EAR LOBE > 2017
7. Item No: V00063631, Freewheel body seal, Kit ID360 seal version 2 (larger)
8. Item No: V2375201 Sprocket kit 24 teeth with spring, KIT ID360 24 TEETH 2 RATCHET + MTB SPRING + PAD (specific)
9. Item No: V2375401, Noise-reducing rubber pad ID360 MTB 24T NOISE REDUCING PAD
10. Item No: V2372901 MTB spring for sprockets, KIT 3 ID360 MTB SPRINGS
11. Freewheel body Instant Drive HG / XD / Microspline
12. Item No: V2373001, Bearing cover with shaft washer and circlip, KIT ADJUST. SYSTEM QRM AUTO ID360 for 17x30x7 bearing
13. Hub body not available as a spare part
14. Item No: V2372201 Rear wheel axle kit Boost 148 for ID360 Disc 6-hole with retaining ring and cover, KIT ID360 148 D6T AXLE WITH CLIP
15. Item No: V2510701 Hub axle end stops Boost 10x142/148/157mm thru-axle fitting, ID360 EVO REAR AXLE ADAPTERS 12x142mm DCL & D6T

• Item No: V2510801, Hub Axle End Stops Boost 10x141mm Quick-release Mounting, ID360 EVO REAR AXLE ADAPTERS 9x135mm DCL & D6T
• Item No: V2372801, 40-tooth ratchet kit with spring, KIT ID360 2x40 TEETH RATCHETS + MTB SPRING + GREASE + PAD

The Instant Drive 360 freehub bodies for MTB, road and gravel cassettes are compatible with all Instant Drive 360 hubs. Whether road bike, mountain bike or gravel bike:

• Item No: V3780101, Aluminium freehub body HG10
• Item No: V3790101, Steel freehub body HG10
• Item No: V3430101, Aluminium freehub body HG11
• Item No: V3850101, Aluminium freehub body HG11 Light
• Item No: V3740101, Aluminium Sram XD freehub body
• Item No: V2580101, Aluminium Sram XDR freehub body
• Item No: V3990101, Aluminium freehub body, Shimano 12-speed Micro Spline
• Item No: A00090231, Steel freehub body, Shimano 12-speed Micro Spline
• Item No: V3440101, Aluminium freehub body, Campagnolo ED 12-speed
• Item No: V2375201, Aluminium freehub body, Campagnolo N3W 13-speed
