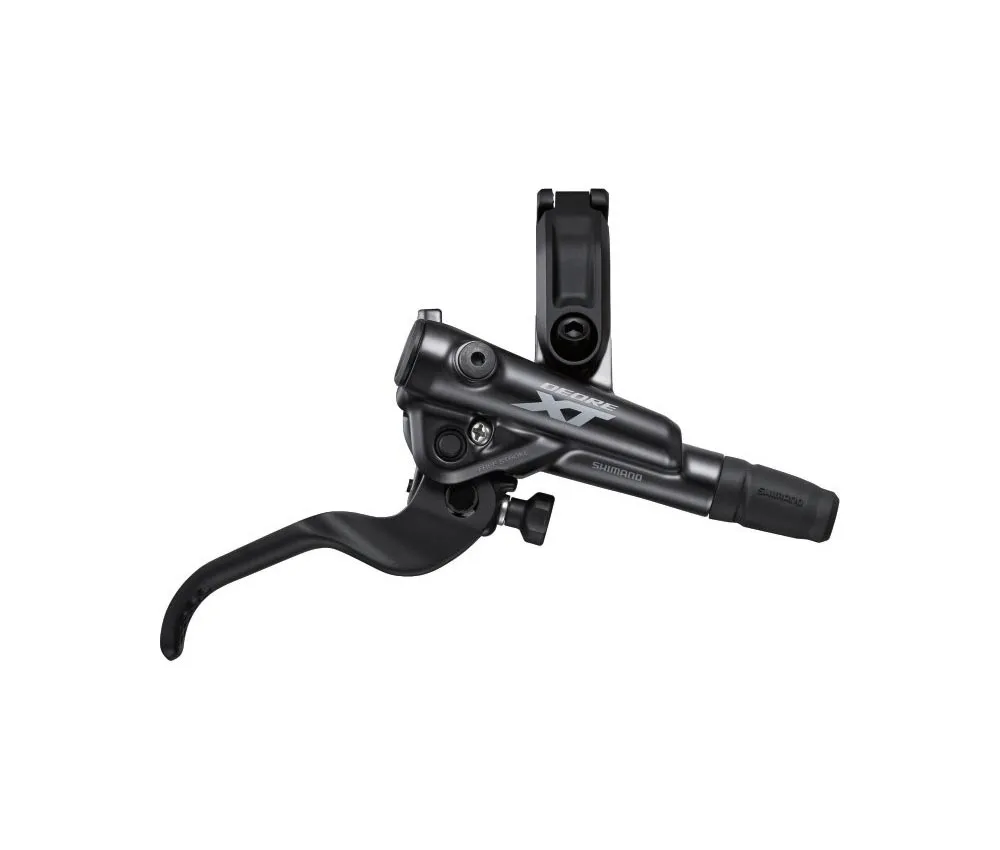

Shimano BL M8100 disc brake lever

The original brake lever for the Shimano XT brakes BRM8100 and BRM8120 for the 12-speed groupset with I-Spec EV direct mount capability. Compatible with Shimano XTR, XT, SLX, LX and Saint disc brake calipers.

The XT BLM 8100 brake levers, featuring a 1.5-finger lever for ergonomic handling, are suitable for direct mounting of I Spec EV shifters. The Shimano XT BR-M-8100 brake levers are equipped with the new Servo Wave System for even better responsiveness. Adjustable reach and pressure point allow for the perfect adjustment to your riding style.

Shimano XT BL M8100 Disc Brake Lever Technology:

• Aluminium clamp
• Servo Wave technology
• Adjustable pressure point
• Adjustable grip width
• I Spec EV mounting
• Compatible disc brake hose SM-BH90-SBM Item No. ISMBH90SBML
• Compatible with all Shimano hydraulic MTB disc brakes
• Weight approx. 128 grams per lever

Available spare parts for the Deore XT BL-M8100 brake lever:

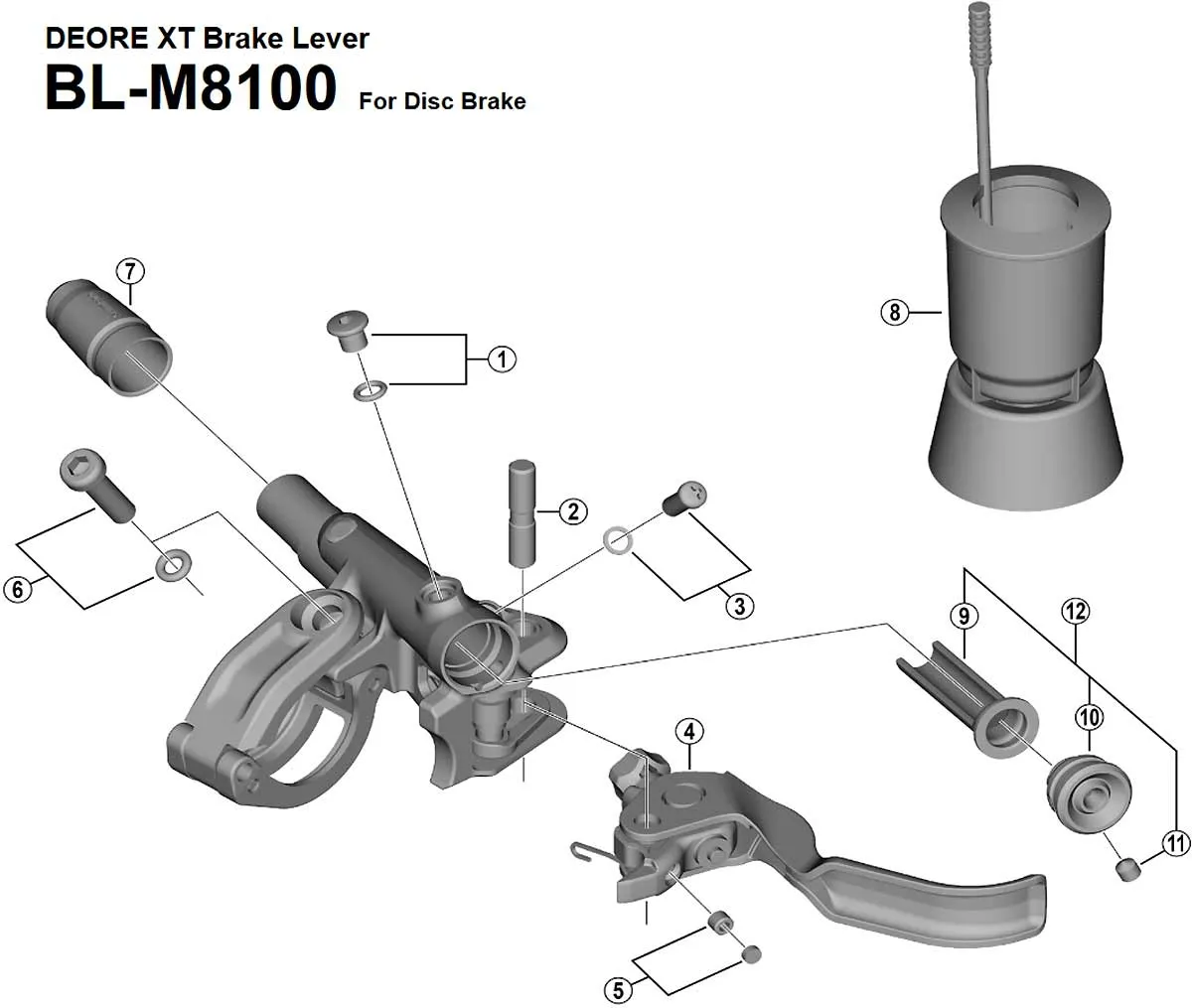

Shimano Deore XT BL-M8100 Disc Brake Lever Spare Parts

• No. 1: Y8V398010, bleed screw M5 x 4.7 with O-ring
• No. 2: Y8VC05000, brake lever axle
• No. 3: Y8VC98070, pressure point adjustment screw with 0.3 mm washer
• No. 4: Y2RR98010, Right-hand brake lever
• No. 4: Y2RR98020, left brake lever
• No. 5: Y8V398040, fixing screw for brake lever axle
• No. 6: Y2RR98030, Handlebar clamp screw M5 x 18
• No. 7: Y1XJ16000, rubber grommet for brake line
• No. 8: ESMDISCBP, oil funnel for bleeding
• No. 9: Y1XK9801T, Diaphragm for expansion tank
• No. 10: Y1XJ9801T, Cap for expansion tank
• No. 11: Y8SZ07000, Fixing screw for expansion tank cap
• No. 12: Y1XK98030, Diaphragm, cap and screw for expansion tank
