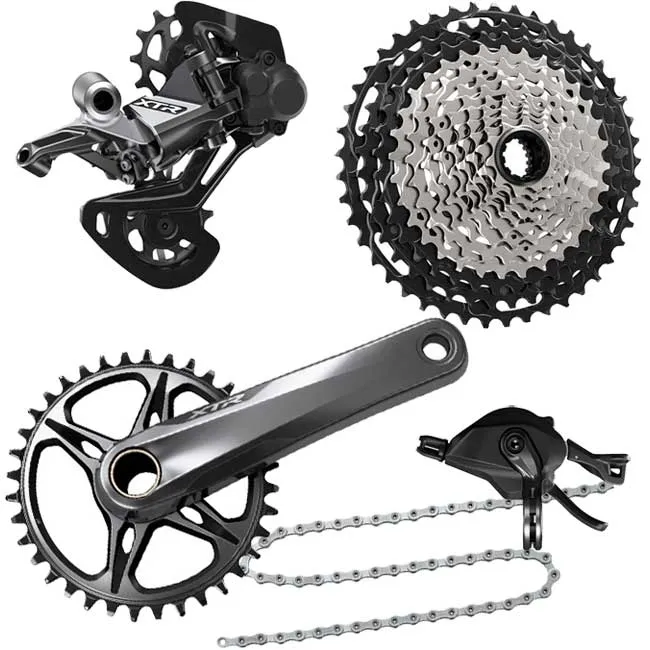

Shimano XTR 9100 groupset, 2x1-speed

The new Shimano XTR 12-speed and 11-speed components, designed for use ranging from cross-country to enduro. Available with a crankset featuring either one or two chainrings and the new 12-speed cassettes with 10-45 and 10-51 tooth ratios. The new XTR components from the 9100 / 9120 series are not compatible with older shifters or cassettes. The new Micro Spline freehub body is required for the cassette.

The XTR M9100, the new flagship of Shimano’s mountain bike components, comes with a revolutionary 12-speed cassette with a choice of 10-45 or 10-51 teeth, two- or four-piston brakes and hubs featuring Shimano’s new Micro Spline technology. The completely redesigned mounting system for shift and brake levers allows users to customise their cockpit for optimal control; a release lever for retractable seatposts, seamlessly integrated into this system, is also available. All in all, the new XTR has shed more than 150 g in weight compared to its predecessor in the XC configuration; for enduro use, this still amounts to a weight saving of 90 g. The shift lever forces and travel have been revised and optimised to guarantee intuitive control in all conditions and allow riders to focus on the challenges of the terrain.

Shimano XTR RD-M9100 rear derailleur:

The XTR Shadow Plus 9100 rear derailleur shifts with extreme precision, speed and smoothness. The new, slimmer design, fluorine-coated stainless steel bushings and extremely precise machined fits ensure high shifting precision and a long service life. With the ability to adjust the friction damper via a screw mechanism as desired, the system can be tuned to prioritise maximum stability or minimal operating forces. Furthermore, the rear derailleur features an even slimmer profile, which protects it from damage and further reduces operating forces thanks to the shallow angle of attack.

The XTR RDM 9100 rear derailleur is available in two versions: the RD-M9100GS short cage for use with XTR 2x cranksets and the 11-45-tooth cassette. The SGS version of the Shimano XTR rear derailleur is designed for the 11-51-tooth cassette

Shimano XTR SL-M9100 Rapidfire shifters:

The XTR Rapidfire 12- and 11-speed SL-M9100 shifters are available for classic clamp mounting or in the new I-Spec EV version. Shifting effort has been reduced by 35 per cent thanks to a modified gear ratio combined with lower cage tension on the rear derailleur. However, the M9100 shifter shifts 20 per cent faster due to a redesigned internal mechanism, allowing the rider to react even more quickly to changing terrain conditions. The further optimised, ergonomic design of the Shimano XTR SL M9100 Rapidfire shifters literally takes shifting to a new level. The shifters feature a dual-textured, non-slip surface and are equipped with all the latest high-end technologies such as Multi-Release, Instant-Release and 2-Way-Release. Carbon was chosen as the material for the shift levers to ensure the lowest possible weight. Fitted with polymer-coated cables, shifting performance is significantly optimised and operating forces are reduced by 20 per cent. The shift lever can be converted from 12-speed to 11-speed

Shimano I Spec EV:

The new I-Spec version of the Shimano XTR shifters and brakes offers a wide adjustment range, 14 mm laterally and rotatable by 60 degrees, ensuring optimal shifting ergonomics. With the I-Spec EV version, the shifter can be mounted on XTR M9100/9120 brake levers in a space-saving manner. Furthermore, mounting via the new standard provides a 14-millimetre lateral adjustment range, and the shifter can also be rotated by 60 degrees. The new I-Spec version is not compatible with older brakes.

Shimano XTR Crankset FC-M9100/FC-M9120:

The cranksets with the Shimano Direct Mount are suitable for Boost 148 mm and standard 135/142 mm rear ends. The FC-M9100 and FC-M9120 cranksets have a chainline of 52 mm. The FC-M9100, with a Q-factor of 162 mm and a chainline of 52 mm, is designed for hardtail frames with narrow rear ends; the FC-M9120 cranks, with a Q-factor of 168 mm, are designed for full-suspension frames with standard-width rear ends

Shimano XTR Direct Mount Chainring SMCR-M95:

The new Direct Mount chainrings from the XTR 12-speed series are available in sizes ranging from 30 to 38 teeth. The new Dynamic-Chain-Mount+ tooth profile reliably prevents the chain from coming off. At the same time, friction resistance has been significantly reduced. The TL-FC41 tool or a Hollowtech II bottom bracket tool is required to fit the chainrings. We supply the cranks with the chainrings already fitted.

Shimano Direct Mount chainring mount:

The new XTR cranksets now also feature a Direct Mount chainring mount. This allows the chainrings to be easily changed. Alternatively, Shimano also offers a 2-speed spider. This allows for a maximum gear range to be fitted. The 2-speed XTR crankset can only be used with the XTR 10-45-tooth cassette and the RDM9120 SGS rear derailleur.

Bottom bracket:

We offer optional bottom brackets for the XTR M9100 groupset to suit most frames and bottom bracket shells. These include threaded and BB92 bearings from the XTR series, as well as bottom brackets from Wheels Manufacturing suitable for BB30, Pressfit 30, BB386 Evo and BBright. New additions include the BB30A and Pressfit 30A bottom brackets and the 47T threaded bottom brackets. The Wheels Outboard bottom brackets feature aluminium sleeves that are screwed together. This ensures a perfect fit in the frame and long-lasting durability, even on frames that are difficult to fit or have been worn out.

Shimano XTR CS-M9100 cassette:

The Shimano XTR 12-speed CS-M9100 cassette is available in 10-45 and 10-51 tooth configurations, with closely spaced gears and perfect shifting. At the same time, it is also the most carefully spaced cassette and, thanks to Hyperglide+, shifts superbly even under load. The close spacing of the XTR 12-speed cassette enables precisely calculated gear changes without large, noticeable jumps or gaps, which saves power and energy and helps maintain flow on the trail in all situations. As is customary with Shimano’s high-end cassettes, it features a titanium sprocket, aluminium spider and is very light at 349/359 grams

Shimano XTR 9100 12-speed cassette compatibility:

The new Shimano 12-speed cassette from the XTR 9100 series is only compatible with XTR 9100 shifting components. The CN-M9100 chain is recommended. The 12-speed XTR cassettes are only compatible with the new Micro Spline freehub bodies.

Shimano HG-M9100 Chain

The Shimano chain for the new 12-speed MTB drivetrains. Extremely lightweight thanks to its hollow rivets, and made from a high-quality, particularly robust zinc alloy, the Shimano HG-M9100 12-speed chain is also extremely durable. For perfect shifting performance, the chain is directional; the inner chain plates are specially shaped for fast and smooth shifting. The special asymmetrical outer and inner plates, combined with Shimano’s SIL-TEC surface coating, minimise friction, optimise performance and also reduce dirt build-up.

This set is not eligible for a discount

Included in the Shimano XTR groupset:

• Shimano XTR rear derailleur RD M9100 SGS / GS with Shadow technology
• Shimano XTR SL M9000 shift lever, Rapidfire 12-speed, optionally also I-Spec EV
• Shimano XTR crankset FC M9100 or FC M9120
• Shimano XTR chainring, Direct Mount SMCRM95, 30–38 teeth
• Shimano XTR cassette CS M9100, 11–45 or 10–51 teeth, 12-speed
• Shimano XTR chain CN M9100, 116 links HG - X 12-speed

Compatible bottom bracket shell / bottom bracket

• BSA threaded shell, installation width 68/73 mm Shimano XTR
  SM-BB93 bottom bracket
• Pressfit BB86-92 shell, installation width 86.5–92 mm, press-fit depth 41 mm Shimano
  SM-BB94-41A bottom bracket or Wheels MFG Outboard
  BB86-OUT-BB bottom bracket
• BB30 shell, installation width 68/73 mm, press-fit depth 42 mm, Wheels MFG
  Outboard BB30-OUT bottom bracket
• BB30A shell, installation width 68 mm, press-fit dimension 42 mm
• Wheels MFG Outboard BB30-OUT bottom bracket
• Pressfit 30 shell, installation width 68/73 mm, press-fit dimension 46 mm, asymmetrical Wheels MFG Outboard
  PF30A-OUT bottom bracket
• Pressfit 30A housing, installation width 73 mm, press-fit dimension 46 mm, asymmetrical
• Wheels MFG Outboard PF30A-OUT bottom bracket
• BBRight shell, installation width 79 mm, press-fit depth 46 mm Wheels MFG Outboard
  BBRIGHT-OUT bottom bracket
• BB386 shell, installation width 86.5 mm, press-fit dimension 46 mm, Wheels MFG Outboard
  386EVO + 386EVO-SHI bottom bracket
• T47 threaded shell, installation width 68 mm, thread 47 mm Wheels MFG
  T47-OUT-SHIM-AC bottom bracket
