Shimano XTR SL-M9100 shift lever

The new Shimano XTR 12-speed components, designed for use ranging from cross-country to enduro. Available with a crankset featuring either one or two chainrings and the new 12-speed cassettes with 10-45 and 10-51 tooth ratios. The new XTR components from the 9100 / 9120 series are not compatible with older shift levers or cassettes. The new Micro Spline freehub body is required for the cassette.

The XTR M9100, the new flagship of Shimano’s mountain bike components, comes with a revolutionary 12-speed cassette with a choice of 10-45 or 10-51 teeth, two- or four-piston brakes, and hubs featuring Shimano’s new Micro Spline technology. The completely redesigned mounting system for shift and brake levers allows users to customise their cockpit for optimal control; a release lever for retractable seatposts, seamlessly integrated into this system, is also available. All in all, the new XTR has shed more than 150 g in weight compared to its predecessor in the XC configuration; for enduro use, the weight saving is still a significant 90 g. The shift lever actuation forces and travel have been revised and optimised to guarantee intuitive control in all conditions and allow riders to focus on the challenges of the terrain.

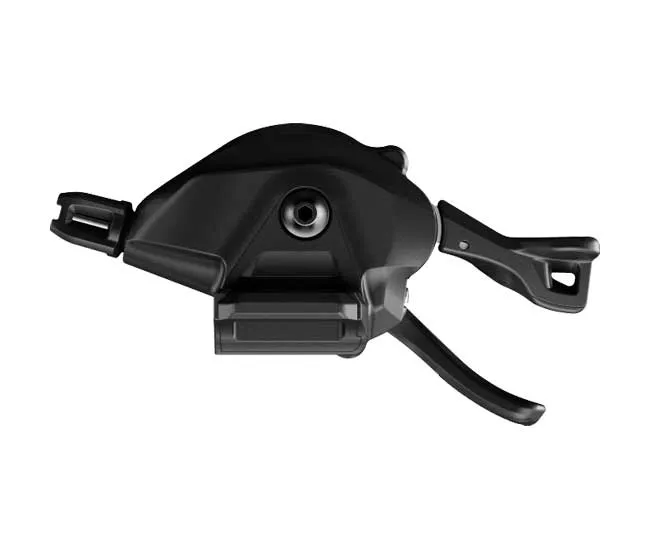

Shimano XTR SL-M9100 Rapidfire shift lever:

The XTR Rapidfire 12-speed SL-M9100 shifters are designed for classic mounting with a clamp on the handlebar. Shifting force has been reduced by 35 per cent thanks to a modified gear ratio combined with lower cage tension at the rear derailleur. However, the M9100 shifter shifts 20 per cent faster due to a redesigned internal mechanism, allowing the rider to react even more quickly to changing trail conditions. The further optimised, ergonomic design of the Shimano XTR SL M9100 Rapidfire shifters literally takes shifting to a new level. The shifters feature a dual-textured, non-slip surface and are equipped with all the latest high-end technologies such as Multi-Release, Instant-Release and 2-Way-Release. Carbon was chosen as the material for the shift levers to ensure the lowest possible weight. Fitted with polymer-coated cables, shifting performance is significantly optimised and operating forces are reduced by 20 per cent

Shimano XTR 9100 Shift Lever Compatibility:

The new Shimano XTR 9100 shift lever series is only compatible with the XTR 12-speed rear derailleurs RDM9100 / RDM9120, the XT and SLX 12-speed rear derailleurs and the 12-speed Shimano MTB cassettes. The CNM9100 or HG-901 chains are recommended. The 12-speed XTR cassettes are only compatible with the new Micro Spline freehub bodies.

Shimano I-Spec EV:

The new I-Spec version of the Shimano XTR shifters and brakes offers a wide adjustment range – 14 mm laterally and 60 degrees of rotation – ensuring optimal shifting ergonomics. With the I-Spec EV version, the shifter can be mounted on XTR M9100/9120 brake levers in a space-saving manner. Furthermore, mounting via the new standard offers a 14-millimetre lateral adjustment range, and the shifter can also be rotated by 60 degrees. The new I-Spec version is not compatible with older brakes.

Shimano XTR SLM9100 Rapidfire shifter technology:

• 12-speed shifting
• I-Spec EV mounting
• Instant release for faster shifting
• Multi Release allows two-step shifting
• Weight: approx. 130 grams

Included in delivery: Shimano XTR SL M 9100 Rapidfire shifter, 12-speed right-hand, polymer-coated inner cable
