Spare part Shimano XTR FH-M9010-B

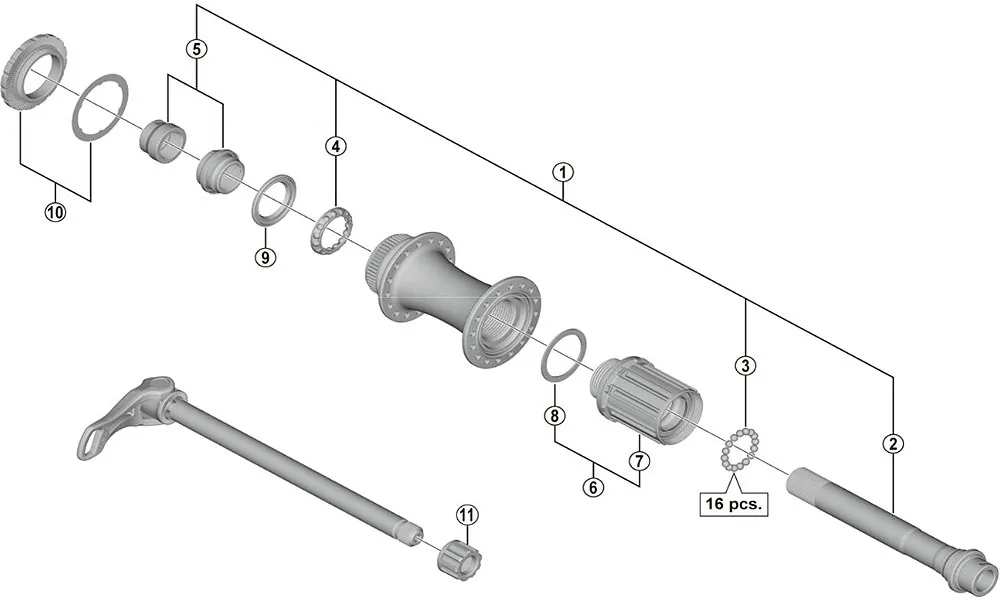

Part No. 1 in the exploded view.

With the exception of the axles, the spare parts for the Shimano XTR FH-M9010 and FH-M9010-B Boost rear hubs are identical. With Boost or non-Boost axles, hubs cannot be converted to the other mounting standard, as the hub bodies are of different widths.

Shimano XTR FH-M9010 / FH-M9010-B Disc rear hub spare parts:

• No. 1: Y38L98010 – Hollow axle, completely sold out for FH-M9010
• No. 1: Y3E898010 – Hollow axle, complete for FH-M9010-B
• No. 2: Y38L98020 – Hollow axle for FH-M9010
• No. 2: Y3E898020 - Hollow axle for FH-M9010-B
• No. 3: Y28F98020 - Steel balls 5/32", 38 pieces for right and left
• No. 4: Y27X98040 – Left-hand ball bearing 5/32" with 15 balls – sold out
• No. 5: Y38L98030 - Axle nut + dust cap M16 left sold out
• No. 6: Y38L98050 – Complete freewheel – sold out
• No. 7: Y38L98060 – Freehub body 10-11-speed + sealing ring
• No. 8: Y3CZ12000 – Sealing ring for freehub body
• No. 9: Y27X14000 – Sealing ring, left-hand, for hub body – sold out
• No. 10: Y29F98010 – Centerlock locking ring + washer – sold out
• No. 11: Y27Y02000 – M12 axle nut for SM-AX75 and SM-AX76-B
