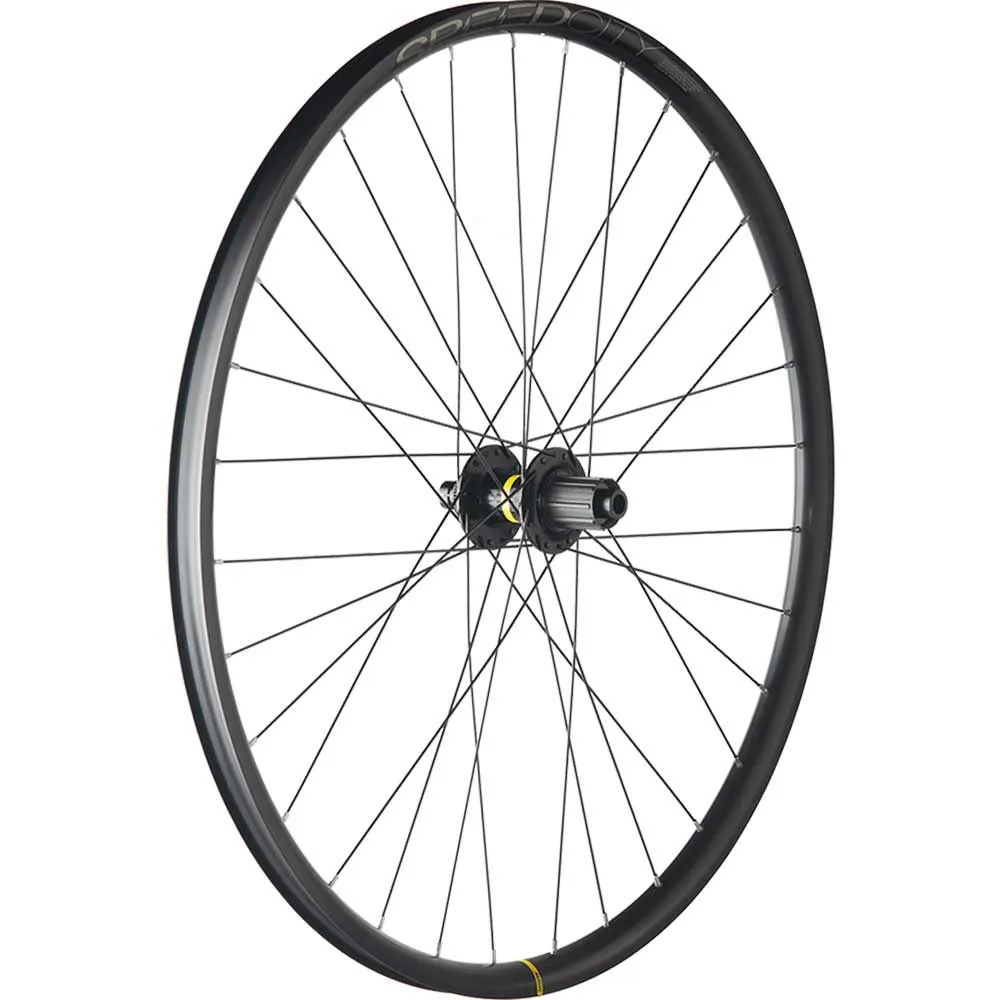

Mavic E-Speedcity Disc UST wheelset

The new wheel set from Mavic for urban and gravel use, the E-Speedcity, is equipped with wide and sturdy UST tubeless-ready rims, particularly sturdy J-bend steel spokes, adjustable industrial bearings, and extra-sturdy e-bike rims with a 25 mm rim width. The e-bike-specific reinforced high-flange hubs transmit the drive forces in a manner suitable for e-bikes.

The Mavic UST wheels can, of course, also be used with standard tyres and inner tubes. Simply unscrew the valve and fit an inner tube, just as before.

Mavic E Speedcity Disc technologies:

• Mavic UST rims:
  The rims are fitted with special rim flanges that make fitting UST tyres extremely easy. The UST tyres practically spring into the correct position and, provided you have a strong thumb, can be fitted without tools and inflated using standard air pumps.
• QRM Auto:
  Industrial bearings of this quality are only found in Mavic hubs: QRM bearings with double seals, of the 2RS or LLU type, and with extremely tight tolerances. Self-aligning bearings offer very high durability, low maintenance and excellent smoothness.
• Mavic Instant Drive Freehub Body:
  The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with an engagement angle of just 9 degrees. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40g. Two pawls ensure fast and loss-free engagement. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8-11-speed, SRAM XD 11- and 12-speed XG/AXS, and Campagnolo 9-11-speed ED cassettes.
• Compatibility:
  The oversized aluminium axles allow for easy conversion to all standard axle systems, including quick-release mounting as well as QR 12x100 mm, X 12x142 mm and 12x135 mm thru-axle mounting. End stops for 12 mm thru-axles and quick-release mounts are included in the scope of delivery. Conversion to 15x100 mm front wheel mounting is possible by replacing the entire hub axle.

Mavic E Speedcity UST Disc wheel technology:

• Recommended use: Urban Gravel
• 28 inches, 622 x 25, for folding and clincher tyres
• Spokes: 24 bent, black high-tensile steel spokes
• Rim: S6000 aluminium rim, drop-out, black, h2 cold-forged, UST tubeless ready
• Spoke pattern: Front and rear wheels double-crossed
• Bearings: Industrial-grade hubs
• Hub body: Aluminium / Axle: Steel
• Brake disc mounting: Centerlock
• Rear hub: aluminium body, 12x142mm, thru-axle mount
• Instant Drive sprocket freehub body available as:
  • HG11 freehub body compatible with Shimano and SRAM road cassettes (8, 9, 10 and 11-speed)
  • Campa ED freehub body, compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • Campa N3W freehub body, compatible with Campagnolo 10-, 11-, 12- and 13-speed cassettes
  • SRAM XD Road freehub body, compatible with SRAM AXS Road 12-speed and SRAM 11- and 12-speed XG MTB cassettes
• Wheelset: 2100, rider weight 150 kg

Scope of delivery for Mavic E-Speedcity Disc wheel:

• Mavic E-Speedcity Disc rear wheel, end stops for QR12x142mm, tubeless rim tape, tubeless valve

Compatible end stops, rear wheel:

Quick-release mounting, 10x135 mm adapter, item no.: V2510801
Thru-axle mounting, 12x135 mm adapter, item no.: V2510901
Thru-axle mounting, 12x142 mm adapter, item no.: V2510701

Compatible Instant Drive 360 freehub bodies

HG11 aluminium freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Item No. V3430101
HG11 aluminium light freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Item No.V3850101
ED freehub for Campagnolo cassettes, 9 + 10 + 11 + 12-speed compatible Item No. V3440101
N3W freehub for Campagnolo cassettes, 10, 11, 12 and 13-speed compatible Item No. V4270101
SRAM XD Road freehub for SRAM AXS Road and XG MTB cassettes, 11 and 12-speed compatible Item No. V2580101

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
