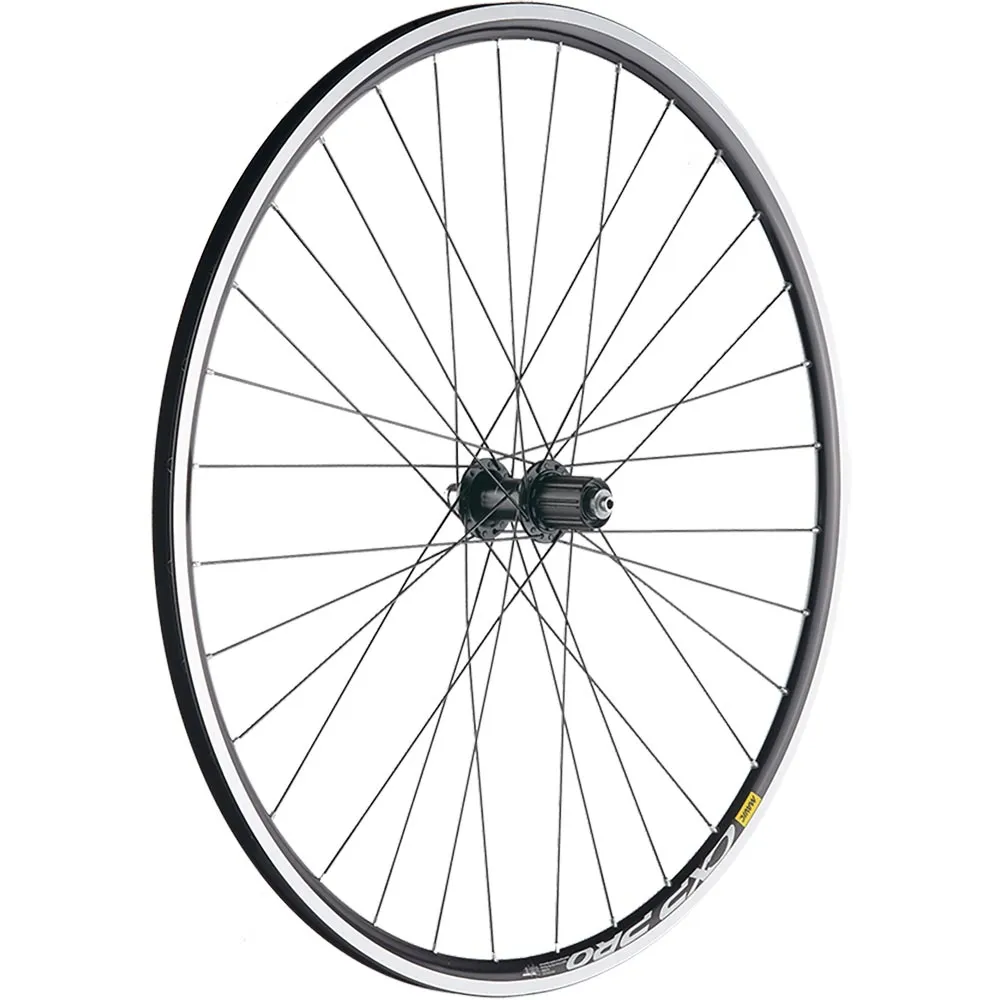

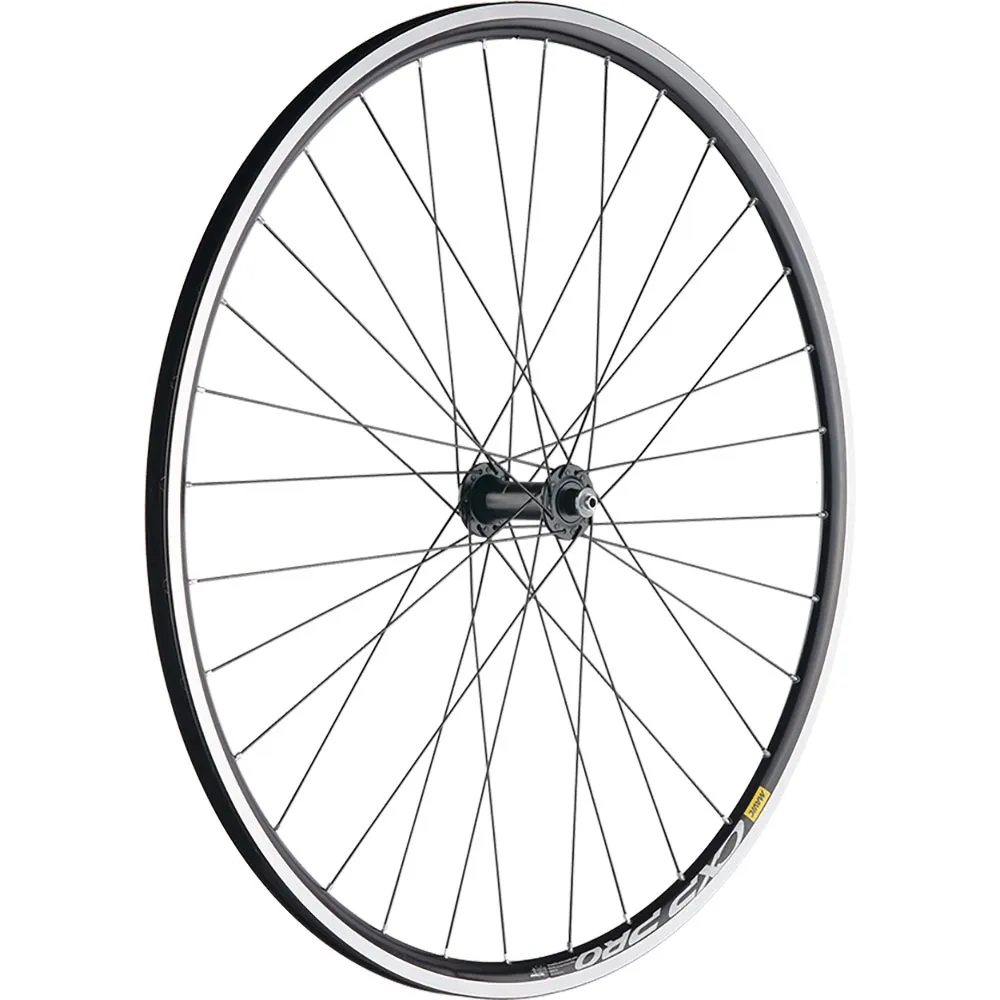

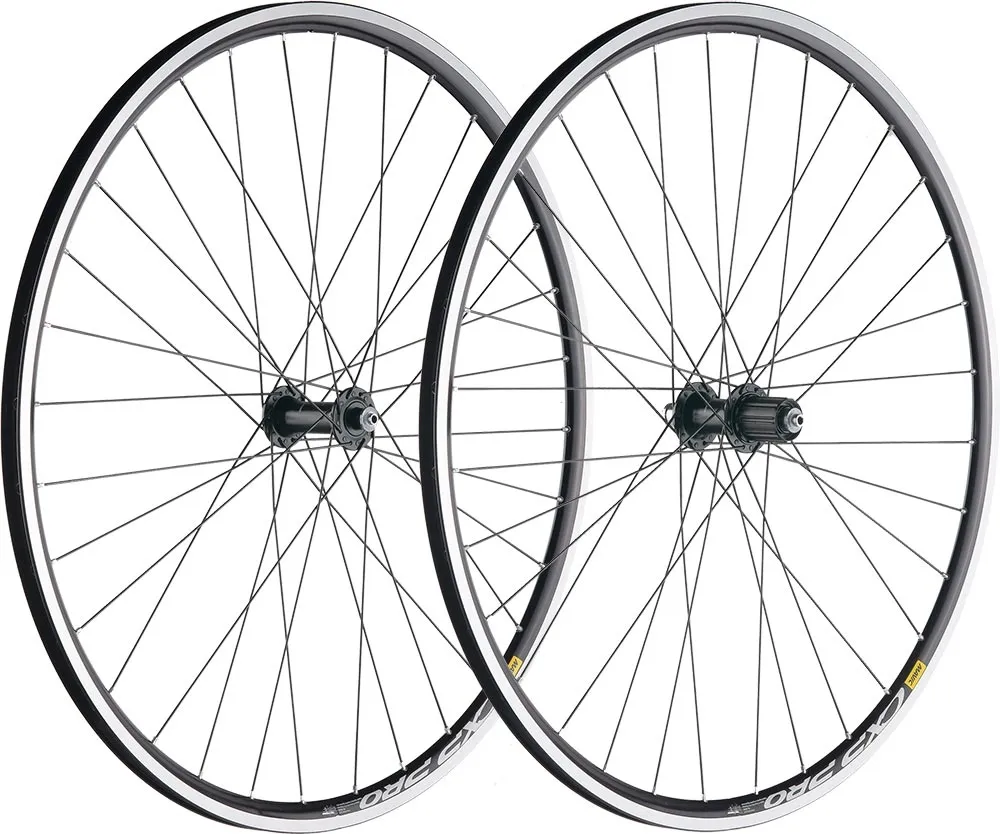

Shimano 105 R7000 hub plus Mavic CXP Pro UB rim wheelset

The wheelset for classic road cycling. Extremely sturdy yet lightweight, weighing approx. 1700 grams, and suitable for tyres 23–32 mm wide. The Shimano 105 hubs are designed for Shimano and SRAM 8–11-speed road bike cassettes. We offer this wheelset with black and silver hubs.

Wheel building at TNC-Hamburg:

We hand-build these wheels exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the materials. These wheels are, of course, tested multiple times for truing, and we also pre-tension the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time.

These wheels are made to order for you, so we cannot offer a right of return for them.

Shimano 105 hubs

The Shimano 105 R7000 hubs. New seals provide reliable protection against contamination of the bearings. The polished raceways are additionally fitted with an internal grease seal. The freehub body is compatible with 8- to 11-speed Shimano and SRAM road bike cassettes.

DT Swiss Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheels. We recommend these spokes for virtually all wheels. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered mid-section, the spokes absorb movement in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with brass nipples approx. 7 grams

Mavic CXP Pro rim

The Mavic CXP Pro road bike rim, with its profile height of a good 23 mm, literally cuts through the wind. At the same time, the Maxtal aluminium alloy saves weight. The SUP-welded and eyeleted Mavic CXP 33 is also exceptionally stable and durable. Excellent aerodynamics with top performance from Mavic.

DT Swiss Squorx Pro Head spoke nipples:

The DT Squorx Pro Head nipple combines ease of installation, light weight and optimal performance in a single product. The Torx head makes lacing flat spokes a breeze. The spherical contact surface ensures perfect alignment with the spoke, whilst the square section allows for easy re-centring using standard tools with the tyre fitted. These features ensure even pressure distribution and long-lasting durability

Shimano 105 HB-R7000 Hub Technology:

• 9 mm steel axle
• Super-polished raceways
• Steel ball bearings
• 38 mm spoke hole circle
• 100 mm clamping width, 108 mm axle width
• Weight 176 grams, quick-release 66 grams
• Available in silver or black

Shimano 105 FH-R7000 hub technology:

• 10 mm steel axle
• Polished raceways
• Steel ball bearings
• Spoke hole circle 44/45 mm
• Flange spacing
• 130 mm clamping width
• Steel freehub body compatible with Shimano and SRAM 8-11-speed road bike cassettes
• Weight 393 grams, quick-release skewer 96 grams
• Available in silver or black

Mavic CXP Pro rim technology – dimensions:

• 28 inches, 700C
• ETRTO 622 x 15
• ERD 595 mm
• Maxtal aluminium rim
• SUB-welded and eyeleted
• Width: 19.4 mm - Height: 23.6 mm
• Brake flange: 9 mm
• Maximum tyre width 19–28 mm
• Valve hole 6.5 mm
• Recommended spoke nipple length 14 mm
• Weight: 470 grams

Included:

Shimano 105 HB-R7000 hub, with quick-release, DT Swiss spokes and nipples as selected, Mavic CXP Pro rim, fully laced and trued in our own workshop.
Shimano 105 FH-R7000 hub, with quick-release, DT Swiss spokes and nipples as selected, Mavic CXP Pro rim, fully laced and trued in our own workshop.
